Rockwood 310, Overlapping Door Edge, 90° U-Shaped, with Double Wing, 1-3/4" Doors, up to 8FT

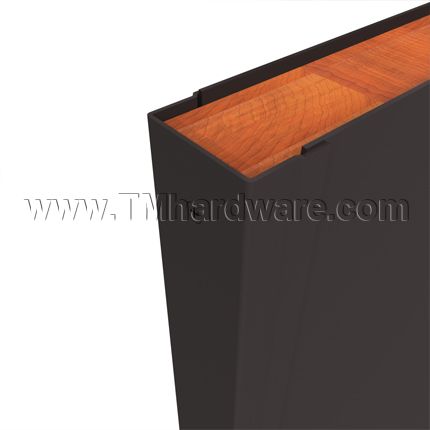

Rockwood's 90° U Shaped Overlapping Door Edge with Double Wings, is designed to protect the corners of the door. Intended for Square Doors. Door Edge Size 1-3/4" x 1-1/4". Overlapping wing size 7/16" wide with a 1/16" offset from the door. Available in a variety of finishes and lengths up to 42".
PRICED PER PIECE-See full product details and specs in the tabs below
Rockwood's 90° U Shaped Overlapping Door Edge with Double Wings features:
Design: U Shaped Design with overlapping door edge and Double Wings for Square Doors

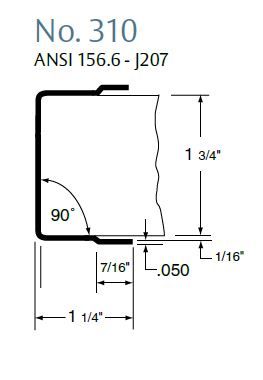

Dimensions: 1-3/4" x 1-1/4" x specify length up to 42"
Wing Size: 7/16" with 1/16" offset from door
Fastener: #6 x 5/8" FH SMS included
Door Type: Designed for wood and Metal Doors. Choose from options above.

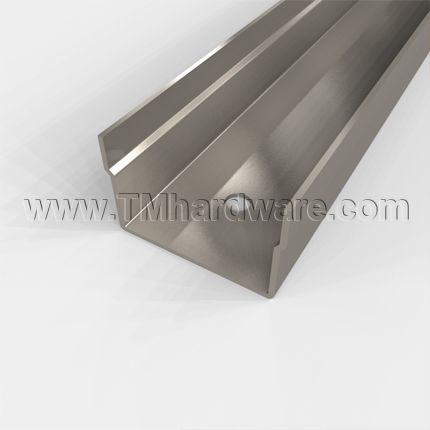

Material: .050" Brass, Bronze, Stainless Steel

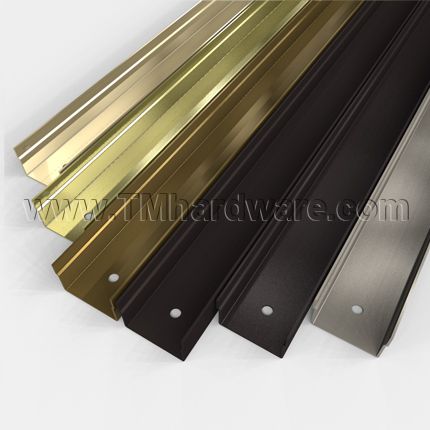

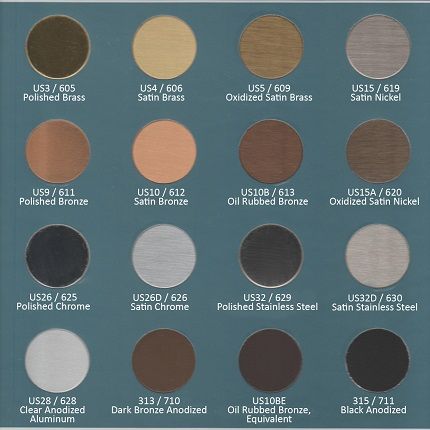

Finishes: See options above, See Rockwood Color Chart for a detailed list of Rockwood finishes.
Cutouts: Cutouts for flush bolts, lock strikes, locks, and hinges available (Can be purchased through our office)
Compliance Details: UL fire rated listed for stainless steel, brass and bronze. For use on wood or plastic faced fire doors rated up to and including 1-1/2 hours or hollow metal, steel covered, composite type fire doors rated up to and including 3 hours. Specify UL Labeling Required in options when ordering.
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.
Product has a 1 year warranty against defects in material and workmanship
Click to view our Full Warranty Policy.

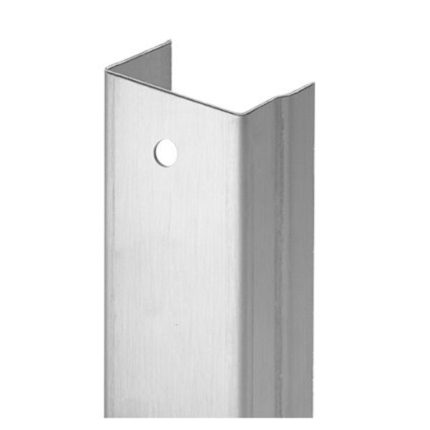

Click Here to view our full line of Door Edges
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNR310
-
UL LabelingNone Required, UL Labeling Required
-
Door TypeWood Door, Metal Door
- Finishes
-

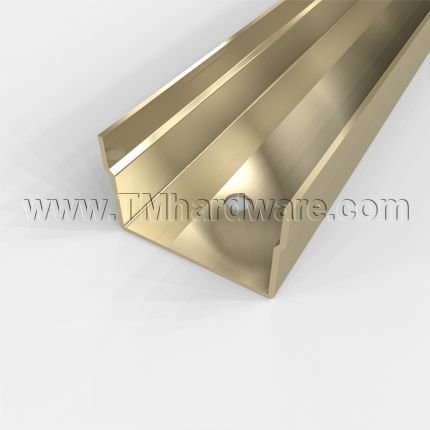

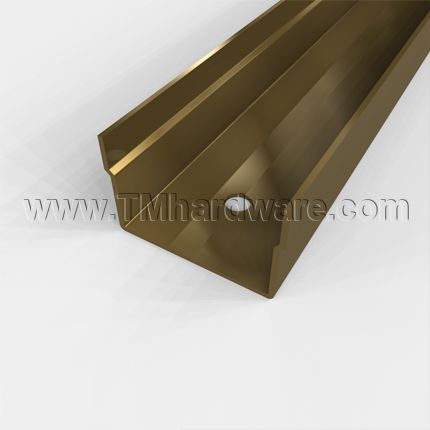

FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Satin Stainless Steel (US32D), 316 Alloy Stainless Steel, Satin, Microshield Stainless Steel, Satin
-
