Rockwood CenTrex-2 RM4512 Projecting Radius Pull - 12" CTC
Rockwood CenTrex-2 RM4512 Projecting Radius Pull with Flat Ends 12" CTC, creates an inviting focal point to an entrance and are composed of sturdy 1¼" tubes and will work in conjunction with standard one inch diameter push bars. This Pull is available as a single pull or as a push / pull set with back to back mounting. Many variations of size, material and finishes are available, see below for details and options.
PRICED PER PIECE / SET
Rockwood RM4512 CenTrex-2 Projeccting Radius with Flat Ends, 12" CTC for High End Commercial Applications.
About CenTrex-2 Line: These CenTrex door pulls are composed of sturdy 1¼" tubes. The smooth expanse of metal in a pair of these circular shape pulls creates an inviting focal point to an entrance. Large radius pulls provide comfortable gripping. All pulls can be used in conjunction with push bars from this or other groups. Click here to view our full CenTrex-2 Architectural Door Hardware Line.

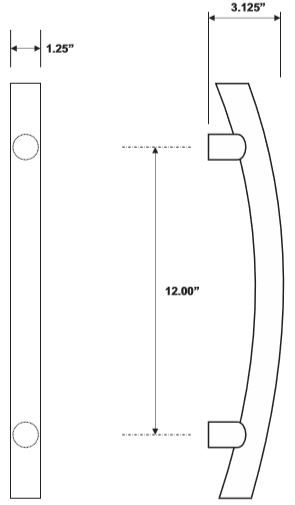

Part # | Diameter | Projection | CTC |
RM4512 | 1.25" | 3.125" | 12" |
Available Finishes: See options above, see Rockwood Finishes Chart for a detailed list of all Rockwood finishes.
Custom finishes and lengths available. For details and pricing please call us at 845-388-1300.
Mounting Types:
- Single Pull - provided with thru-bolt mount
- Push / Pull Set - provided with back to back concealed mounting
Door Types:
- Wooden Door - 1-3/4" Thick
- Metal Door - 1-3/4" Thick
- Glass Door - 1/2" Thick
- For additional thickness, please add to order comments
Additional Fastener Options (can be purchased through our office):
- Concealed mounting single pulls, Standard and Heavy Duty Types 6, 6R, 8 - See Additional Options
- Y Base Plates are recommended for wooden and glass doors to make a stable and durable mounting - can be purchased through our office.
Priced per set / piece
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
The mounting is guaranteed for the lifetime of the building. Click here to view our Full Warranty Policy.
For our Rockwood CenTrex-2 Side Radius Pull with Flat Ends see our Rockwood RM4510 Door Pull.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNRM4512
-
Product TypeSingle Door Pull - Thru-Bolt Mount, Push / Pull Set - BTB Mounting
-
Door TypeWooden - 1.75" Thick, Metal - 1.75" Thick, Glass - .5" Thick
- Finishes
-
FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Clear Anodized Aluminum (US28), Polished Stainless Steel (US32), Satin Stainless Steel (US32D), Dark Bronze Anodized Aluminum (313), Black Anodized Aluminum (315)
-
Standard Mountings - Select from Options Above |
||
Also available in Heavy Duty Back to Back Mounting: features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
|
||
Optional Mounting Types - Can be purchased through our office |
||
Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart. To view more details on these mounting types, see Mounting Types for Door Pulls. |
All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:
- Polished Brass-US3/605
- Satin Brass-US4/606
- Satin Bronze-US10/612
- Satin Oil Rubbed Bronze-US10B/613
- Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
- Clear Anodized Aluminum-US28/628
- Dark Bronze Anodized Aluminum-313/710
- Black Anodized Aluminum-315/711
- Polished Stainless Steel-US32/629
- Satin Stainless Steel-US32D/630
