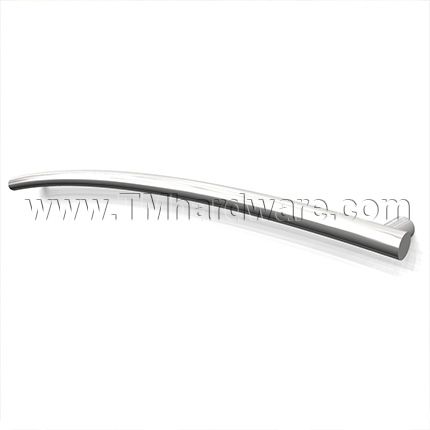

Rockwood CenTrex-2 RM4516 Radius Push Bar - up to 36" CTC

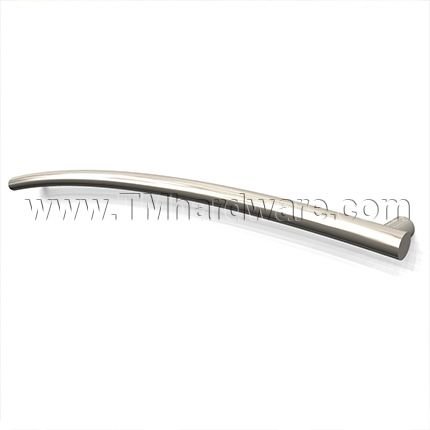

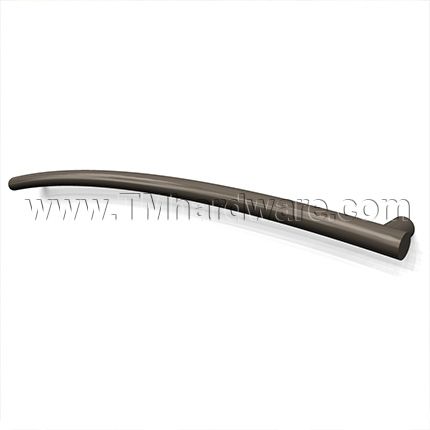

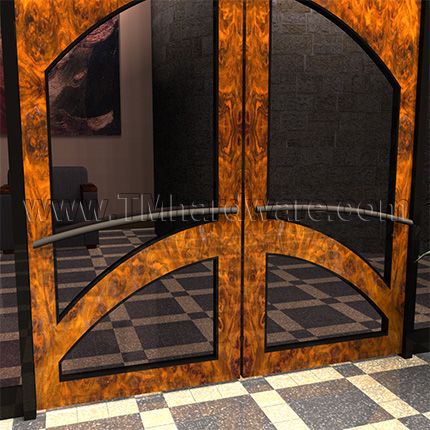

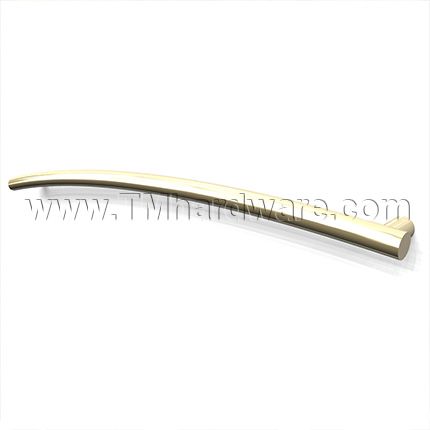

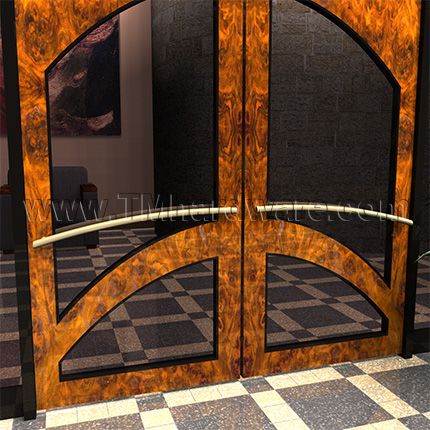

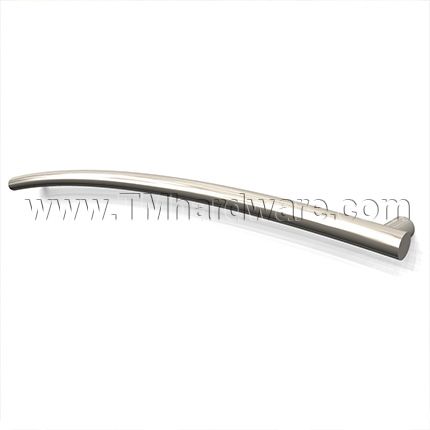

Rockwood CenTrex-2 RM4516 Radius Push Bar, up to 36" CTC, creates an inviting focal point to an entrance and are composed of sturdy 1¼" tubes. Supplied with thru bolt fastener for wooden or metal doors, 1-3/4" thick. Various options of material and finishes available, see below for details.
PRICED PER PIECE - See full product details and specs in the tabs below
Rockwood RM4516 CenTrex-2 Radius Push Bar with Flat Ends for High End Commercial Applications.
About CenTrex-2 Line: These CenTrex Push Bars are composed of sturdy 1¼" tubes. The smooth expanse of metal in a pair of these circular shape pulls creates an inviting focal point to an entrance. Large radius pulls provide comfortable gripping. Click here to view our full CenTrex-2 Architectural Door Hardware Line.

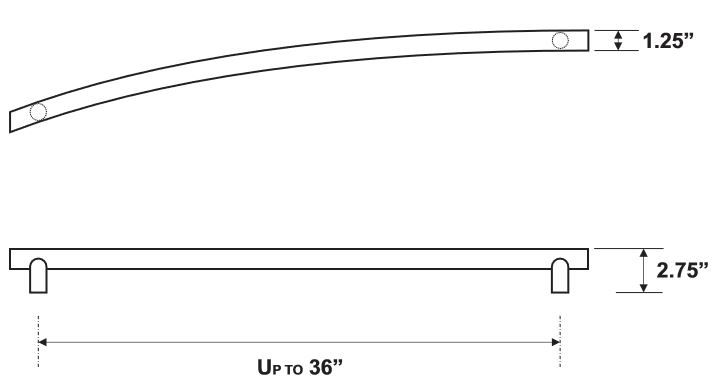

Part # | Diameter | Projection | CTC |
RM4516 | 1.25" | 2.75" | up to 36" |
Don't know what length push bar you need? Click here to view How to Size a Push Bar.
Fasteners: Standard Fasteners include thru-bolt and finish washer, for 1.75" thick door.
Available Finishes: See options above, see Rockwood Finishes Chart for a detailed list of all Rockwood finishes.
Additional Fastener Options (can be purchased through our office):
- For doors other than 1-3/4" thick, please state door thickness in order comments
- Back to back mounting in pairs, Standard and Heavy Duty Types 5, 13 - See Additional Options
- Concealed mounting single pulls, Standard and Heavy Duty Types 6, 6R, 8 - See Additional Options
- Y Base Plates are recommended for wooden and glass doors to make a stable and durable mounting - can be purchased through our office. .
Door Type: Wooden or Metal, 1-3/4" doors. (Other sizes available, please add door size to order comments)
Custom finishes and lengths available. For details and pricing please call us at 845-388-1300.
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
The mounting is guaranteed for the lifetime of the building. Click here to view our Full Warranty Policy.
For our Rockwood CenTrex-2 Projecting Radius Pull with Flat Ends see our Rockwood RM4512 Door Pull.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNRM4516
-
CTC Length12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36"
-
HandingRight Handed, Left Handed
- Finishes
-

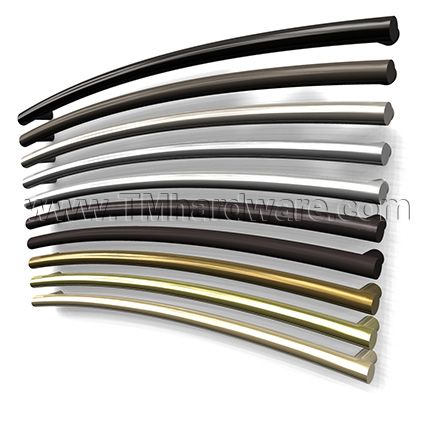

FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Clear Anodized Aluminum (US28), Polished Stainless Steel (US32), Satin Stainless Steel (US32D), Dark Bronze Anodized Aluminum (313), Black Anodized Aluminum (315)
-
Heavy Duty (HD) mounting recommended.
STANDARD (INCLUDED) MOUNTING TYPE - FOR 1-3/4" DOORS |
|
|
|
OPTIONAL MOUNTING TYPES - PLEASE PURCHASE THROUGH OUR OFFICE |
|
Also available in Heavy Duty Back to Back Mounting: features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings. Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart. To view more details on these mounting types, see Mounting Types for Door Pulls. |
All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:
- Polished Brass-US3/605
- Satin Brass-US4/606
- Satin Bronze-US10/612
- Satin Oil Rubbed Bronze-US10B/613
- Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
- Clear Anodized Aluminum-US28/628
- Dark Bronze Anodized Aluminum-313/710
- Black Anodized Aluminum-315/711
- Polished Stainless Steel-US32/629
- Satin Stainless Steel-US32D/630
