Rockwood PlanTek RM5280 Straight Cast Pull, 9" CTC
Rockwood PlanTek RM5280 Straight Cast Pull, 9" CTC. This Pull is available as a single pull or as a push / pull set with back to back mounting. Many variations of size, material and finishes are available, see below for details and options.
PRICED PER PIECE / SET
Rockwood RM5280 PlanTek Straight Cast Pull for High End Commercial Applications.
About PlanTek Line: The cast pulls feature a contour area underneath the grip for a comfortable ergonomic feel. A large variety of bar, rod, and tubing sizes are stocked so alternative designs may be readily made. Click here to view our full PlanTek Architectural Door Hardware Line.

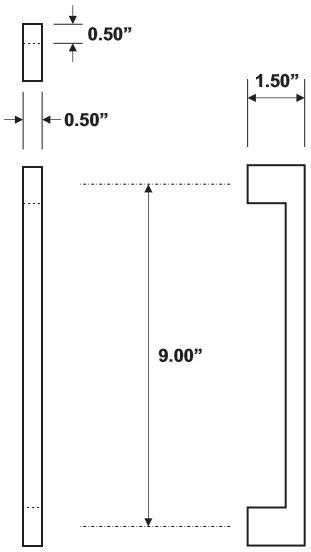

 Part # |  Grip Area |  CTC |  Projecton |
 RM5280 |  1/2" x 1/2" |  9" |  1-1/2" |

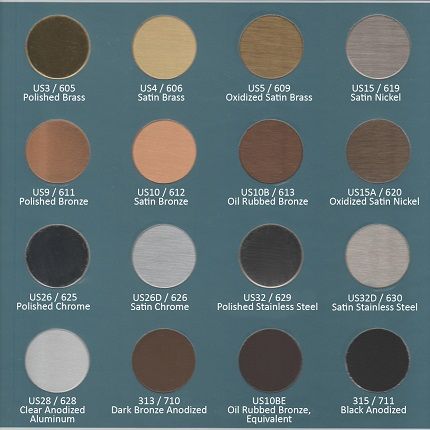

Available Finishes: See options above, see Rockwood Finishes Chart for a detailed list of all Rockwood finishes.Â
Custom finishes and lengths available. For details and pricing please call us at 845-388-1300.
Mounting Types:
- Single Pull - provided with thru-bolt mount
- Push / Pull Set - provided with back to back concealed mounting
Door Types:
- Wooden Door - 1-3/4" Thick
- Metal Door - 1-3/4" Thick
- Glass Door - 1/2" Thick
- For additional thickness, please add to order comments
Additional Fastener Options (can be purchased through our office):
- Concealed mounting single pulls, Standard and Heavy Duty Types 6, 6R, 8 - See  Additional Options
- Y Base Plates are recommended for wooden and glass doors to make a stable and durable mounting - can be purchased through our office.
Priced per set / piece
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
The mounting is guaranteed for the lifetime of the building. Click here to view our Full Warranty Policy.
For our Rockwood PlanTek Radius End Pulls see our Rockwood RM5270 Door Pull.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNRM5280
-
Product TypeSingle Door Pull - Thru-Bolt Mount, Push / Pull Set - BTB Mounting
-
Door TypeWooden - 1.75" Thick, Metal - 1.75" Thick, Glass - .5" Thick
- Finishes
-
FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Satin Chrome (US26D), Satin Chrome (US26D)
-
 Standard Mountings - Select from Options Above |
||
Also available in Heavy Duty Back to Back Mounting:Â features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings. Â |
||
 Optional Mounting Types - Can be purchased through our office |
||
Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart. To view more details on these mounting types, see Mounting Types for Door Pulls. |
Â
All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:
- Bright Brass, Clear Coated-US3/605
- Satin Brass, Clear Coated-US4/606
- Satin Bronze, Clear Coated-US10/612
- Dark Oxidized Satin Bronze, Oil Rubbed-US10B/613
- Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
- Bright Chrome Plated-US26/625
- Satin Chrome Plated-US26D/626
