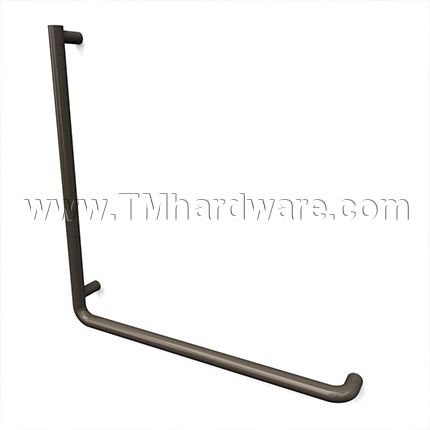

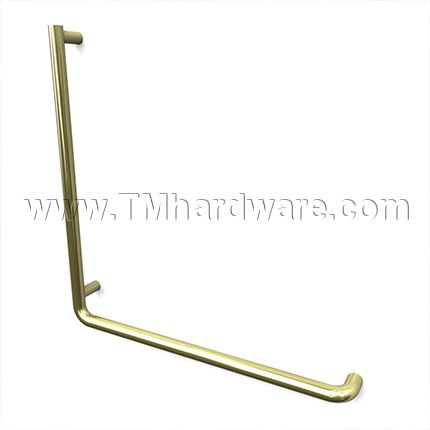

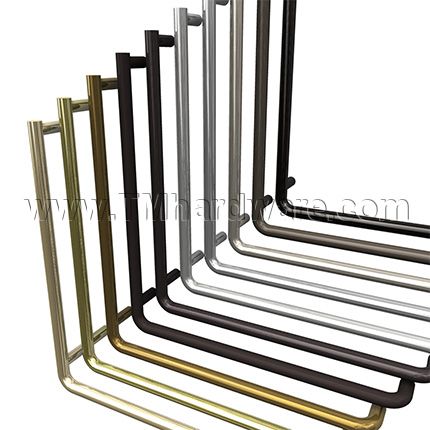

Rockwood RightAngles RM412 - RM413 Long Angle Push Pull
Rockwood RightAngles RM412-RM413 Long Angle Push Pulls are up to 36" in width and 60" in height. They can be applied up or down. These Pulls are available as a single pull or as a push / pull set with back to back mounting. Many variations of size, material and finishes are available, see below for details and options.
PRICED PER PIECE / SET
*Note: Back to Back screw packs options are sold as a SET and will double the price and quantity. Quantity 1 = 2 Pulls.
About RightAngles Line: These right angle push and pulls offer a solution to matching glass door exit devices as well as being a design statement of their own. The extra gripping area provided by the horizontal and vertical sections make it a universally usable pull and push bar. Standard diameter is 1-1/4" with other diameters available upon request. Click here to view our full Right Angles Architectural Door Hardware Line.
Product Dimensions:
Part # | Diameter | CTC | Projection |
RM412 (Leg Up) | 1-1/4" | Specify Height x Width | 3" |
RM413 (Leg Down) | 1-1/4" | Specify Height x Width | 3" |
Priced per set / piece
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
The mounting is guaranteed for the lifetime of the building. Click here to view our Full Warranty Policy.
For an Architectural Short Angle Push Pull with GripZone see our Rockwood RM420 Short Angle Push Pull.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNRM412, RM413
-
Product Code#RM412 - Leg Up, #RM413 - Leg Down
-
HandingRight Handed, Left Handed
- About this Product
-
Mount DesignStandard / Straight Mount
-
CollectionRight Angles Collection
-
StyleModern, Contemporary
-
Base MaterialAluminum, Brass, Bronze, Stainless Steel
-
- Dimensions
-
Diameter1.25" Diameter
-
LengthUp to 36" Length
-
DimensionProjection:
3"
-
- Installation
-
Screw PackThru-Bolt (Wood or Metal Door), Single Pull, Back to Back (Wood or Metal Door), Pull Set*, Concealed (Metal Door), Single Pull, Back to Back (Glass Door), Pull Set*, Decor Thru-Bolt (Wd or Mtl Door), Single Pull, Back to Back (Wd or Mtl Door), Spanner Collar, Pull Set*
-
Door Thickness1.75" Thick Door, .5" Thick Door, 2" Thick Door, Other (Add to Order Comments)
-
- Finishes
-
FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Clear Anodized Aluminum (US28), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Polished, Satin Stainless Steel (US32D), 316 Alloy Stainless Steel, Satin, Dark Bronze Anodized Aluminum (313), Black Anodized Aluminum (315)
-
- Compliance Details
-
WarrantyDoor Handle: 1 Year Limited Warranty, Mounting: Lifetime Limited Warranty
-
All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:
- Polished Brass-US3/605
- Satin Brass-US4/606
- Satin Bronze-US10/612
- Satin Oil Rubbed Bronze-US10B/613
- Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
- Clear Anodized Aluminum-US28/628
- Dark Bronze Anodized Aluminum-313/710
- Polished Stainless Steel-US32/629
- Satin Stainless Steel-US32D/630
- Polished 316 Alloy Stainless Steel-US32316
- Satin 316 Alloy-US32D316
- Black Anodized Aluminum-315/711
Standard Mountings - Select from Options Above |
||
Also available in Heavy Duty Back to Back Mounting: features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
|
||
Optional Mounting Types - Can be purchased through our office |
||
Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart. To view more details on these mounting types, see Mounting Types for Door Pulls. |
