Rockwood RightAngles RM422 - RM423 Long Angle Push Pulls with GripZone

Rockwood RightAngles RM422 - RM423 Long Angle Push Pulls with GripZone
Rockwood Company

Rockwood RightAngles RM422-RM423 Long Angle Push Pulls are up to 36" in width and 60" in height. They feature a GripZone which hides small marks and scratches on the grip area, great for high frequency usage. These pulls can be applied up or down. They are available as a single pull or as a push / pull set with back to back mounting. Many variations of size, material and finishes are available, choose from the dropdown below.

PRICED PER PIECE / SET

*Note: Back to Back screw packs options are sold as a SET and will double the price and quantity. Quantity 1 = 2 Pulls

See tabs below for additional information
    • Weight
      10.9 lbs
    • SKU
      RKRM422_US32
    • Market price:$1,254.00
      • save 5%
    • Starting price: Price: $1,191.30 per item
    Additional discounts will be applied when added to cart!


    About RightAngles Line: These right angle push and pulls offer a solution to matching glass door exit devices as well as being a design statement of their own. The extra gripping area provided by the horizontal and vertical sections make it a universally usable pull and push bar. Standard diameter is 1-1/4" with other diameters available upon request. Click here to view our full RightAngles Architectural Door Hardware Line.

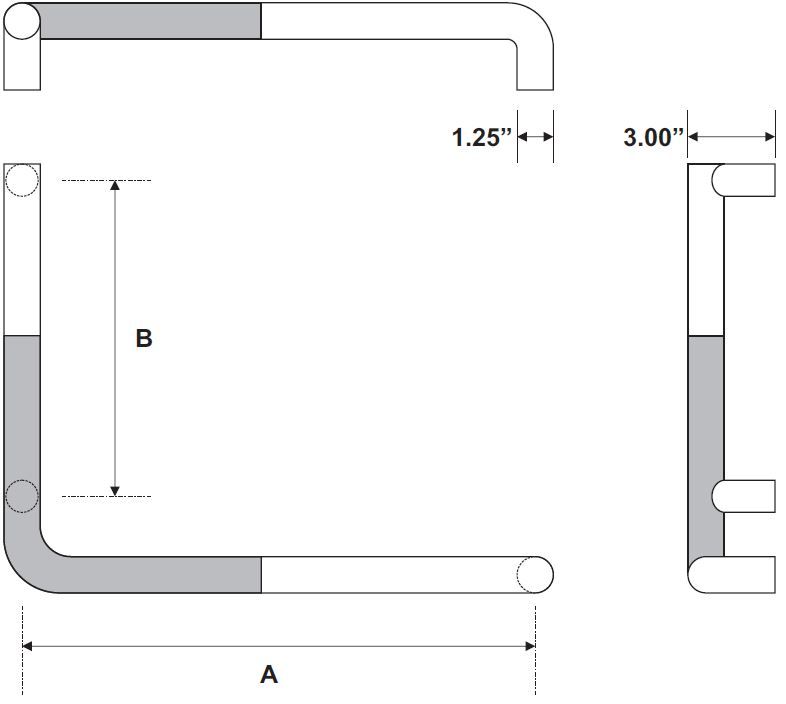

    Product Dimensions:

     Part # Diameter  CTC Projection
     RM422 (Leg Up) 1-1/4" Specify Height x Width  3"
     RM423 (Leg Down)  1-1/4" Specify Height x Width 3"

    This push pull is handed and is not reversible. Not sure what handing is required for your door? See How to Determine Handing / Swing of Door.

    Priced per set / piece

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
     The mounting is guaranteed for the lifetime of the building. Click here to view our Full Warranty Policy.

    For an Architectural Short Angle Push Pull with GripZone see our Rockwood RM420 Short Angle Push Pull.

      • Weight
        10.9 lbs
      • SKU
        RKRM422_US32
    • QuickShip
      No
    • Manufacturer
      Rockwood Company
    • MPN
      RM422, RM423
    • About this Product
      • Mount Design
        Standard / Straight Mount
      • Collection
        Right Angles Collection
      • Style
        Contemporary
      • Product Code
        #RM422 (Leg Up), #RM423 (Leg Down)
    • Dimensions
      • Diameter
        1.25" Diameter
      • Length
        Up to 36" Length
      • Dimension
        Projection:
        3"
      • Handing
        Right Handed, Left Handed
    • Installation
      • Screw Pack
        Thru-Bolt (Wood or Metal Door), Single Pull, Back to Back (Wood or Metal Door), Pull Set*, Concealed (Metal Door), Single Pull, Back to Back (Glass Door), Pull Set*, Decor Thru-Bolt (Wd or Mtl Door), Single Pull, Back to Back (Wd or Mtl Door), Spanner Collar, Pull Set*
      • Door Thickness
        .5" Thick Door, 2" Thick Door, 1.75" Thick Door, Other (Add to Order Comments)
    • Special Features
      • Grip Zone
        Yes

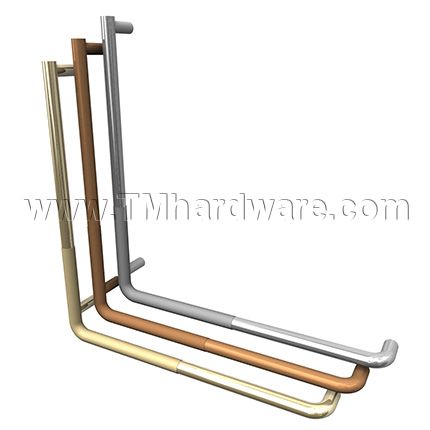

    • Finishes
      • Finish
        Polished Brass (US3), Polished Bronze (US9), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Polished
    • Compliance Details
      • Warranty
        Door Handle: 1 Year Limited Warranty, Mounting: Lifetime Limited Warranty

    All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • Polished Brass-US3/605
    • Polished Bronze-US9/611
    • Polished Stainless Steel-US32/629
    • Polished 316 Alloy-US32316

     Standard Mountings - Select from Options Above
    *Includes standard strength mount. For Heavy Duty Mounting, please purchase through our office

    Also available in Heavy Duty Back to Back Mounting: features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.



     Optional Mounting Types - Can be purchased through our office

    Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart.

    To view more details on these mounting types, see Mounting Types for Door Pulls.




    SHIPPING / PROCESSING TIME:


    This product ships directly from the manufacturer.
    Stocked Items: 3 - 4 Days (please call to confirm stock)
    Non Stocked Items: 10 - 14 Business Days
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.00.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.
    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • Products are custom made to order and are not returnable.
      • We are committed to your satisfaction. As a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
