Rockwood RightAngles RM405-15 Angle Pull, 15" CTC Length
Rockwood RightAngles RM405-15 Angle Pull is 15" CTC.The extra gripping area provided by the horizontal and vertical sections make it a universally usable door pull. This Pull is available as a single pull or as a push / pull set with back to back mounting. Many variations of size, material and finishes are available, see below for details and options.
PRICED PER PIECE / SET
*Note: Back to Back screw packs options are sold as a SET and will double the price and quantity. Quantity 1 = 2 Pulls
Â
About RightAngles Line: These right angle push and pulls offer a solution to matching glass door exit devices as well as being a design statement of their own. The extra gripping area provided by the horizontal and vertical sections make it a universally usable pull and push bar. Standard diameter is 1-1/4" with other diameters available upon request. Click here to view our full RightAngles Architectural Door Hardware Line.

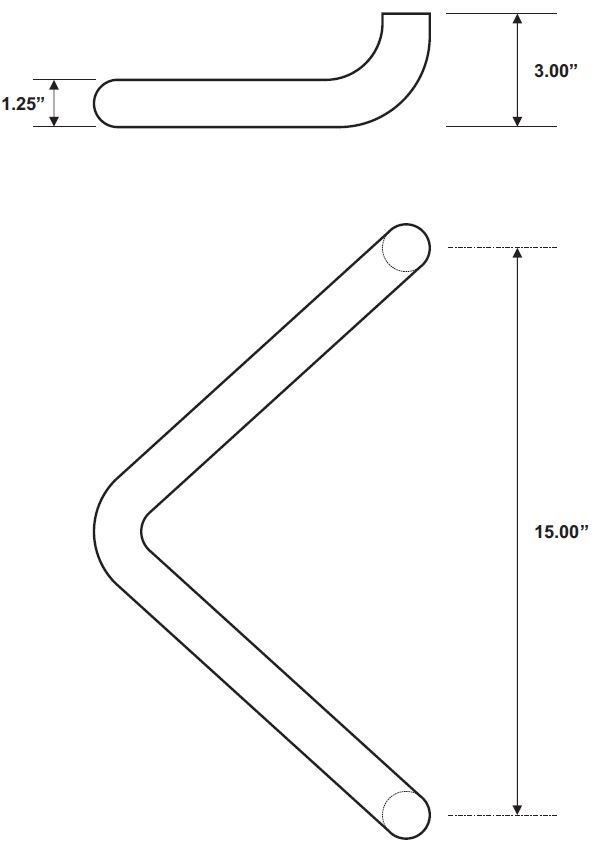

 Part # |  Diameter |  CTC |  Projection |
 RM405-15 |  1-1/4" |  15" |  3" |
Priced per set / piece
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
 The mounting is guaranteed for the lifetime of the building. Click here to view our Full Warranty Policy.
For a straight Architectural Pull see our Rockwood 3010 Neometrix Straight Door Pull.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNRM405-15
- About this Product
-
Mount DesignOffset Mount
-
CollectionRight Angles Collection
-
StyleModern
-
Base MaterialAluminum, Brass, Bronze, Stainless Steel
-
- Dimensions
-
Diameter1.25" Diameter
-
LengthUp to 15" Length
-
DimensionProjection:
3"
-
- Installation
-
Screw Pack1XHD: Thru-Bolt (Wood or Metal Door), Single Pull, 12XHD: Decor Thru-Bolt (Wd or Mtl Door), Single Pull, 6HD: Concealed (Metal Door), Single Pull, 8HD: Concealed (Wood Door), Single Pull, #11: Back to Back (Wd or Mtl Door), Spanner Collar, Pull Set*, 15XHD: Decor Thru-Bolt (Wd or Mtl Door), Single Pull, 14XHD: Back To Back (Glass Door) Extra Heavy Duty, Pull Set*
-
Door Thickness1.75" Thick Door, .5" Thick Door, 2" Thick Door, Other (Add to Order Comments)
-
- Finishes
-
FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Clear Anodized Aluminum (US28), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Polished, Satin Stainless Steel (US32D), 316 Alloy Stainless Steel, Satin, Dark Bronze Anodized Aluminum (313), Black Anodized Aluminum (315)
-
- Compliance Details
-
WarrantyDoor Handle: 1 Year Limited Warranty, Mounting: Lifetime Limited Warranty
-
All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:
- Polished Brass-US3/605
- Satin Brass-US4/606
- Satin Bronze-US10/612
- Satin Oil Rubbed Bronze-US10B/613
- Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
- Clear Anodized Aluminum-US28/628
- Dark Bronze Anodized Aluminum-313/710
- Extra Dark Bronze Anodized-314
- Black Anodized Aluminum-315/711
- Polished Stainless Steel-US32/629
- Satin Stainless Steel-US32D/630
- Polished 316 Alloy-US32316
- Satin 316 Alloy-US32D316
 Standard Mountings - Select from Options Above |
||
Also available in Heavy Duty Back to Back Mounting:Â features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings. Â |
||
 Optional Mounting Types - Can be purchased through our office |
||
Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart. To view more details on these mounting types, see Mounting Types for Door Pulls. |
