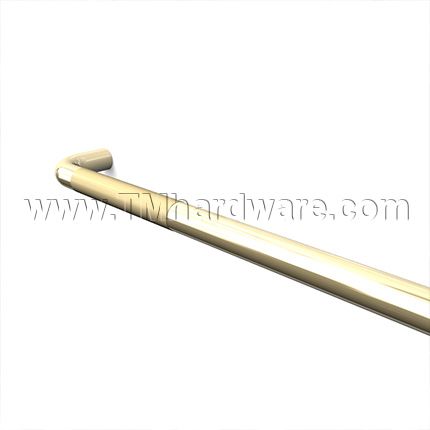

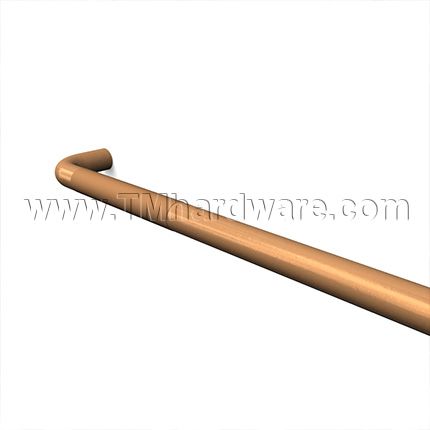

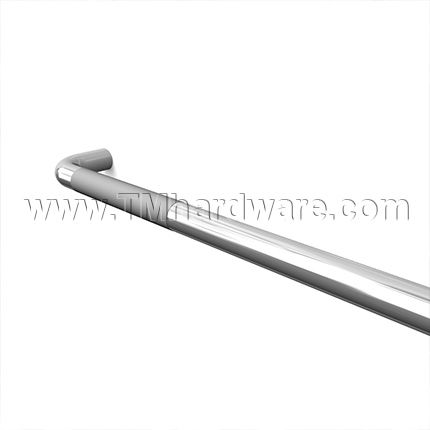

Rockwood RM3012-RM3032 Neometrix Push Bar with Grip Zone
Rockwood Neometrix RM3012 - RM3032 Push Bar is up to 36" CTC and features a Grip Zone which hides small marks and scratches on the grip area, great for high frequency usage commercial applications. This Push Bar is available as a single push bar or as a push / pull set with back to back mounting. Many variations of size, material and finishes are available, see below for details and options.
PRICED PER PIECE / SET
*Note: Back to Back screw packs options are sold as a SET and will double the price and quantity. Quantity 1 = 2 Pulls.
About Neometrix Line: The NeoMetrix line features GripZone — a satin finished grip area contrasting to the bright mirror finish at the ends. Not only visually appealing, this winning design is practical as well. The satin finish contact area hides small marks and scratches caused by rings, jewelry, and keys. On push bars, the GripZone identifies which side of the door swings open. Click here to view the full NeoMetrix Architectural Door Hardware Line.
Product Dimensions: 3 Products Available
Product # | Diameter | CTC | Projection |
RM3012 | 1" | up to 36" | 2-1/2" |
RM3022 | 1-1/4" | up to 36" | 3" |
RM3032 | 1-1/2" | up to 36" | 3-1/2" |
Priced per set / piece
Don't know what length push bar you need? Click here to view How to Size a Push Bar.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
The mounting is guaranteed for the lifetime of the building. Click here to view our Full Warranty Policy.
For an Offset Architectural Pull see our Rockwood 3040 Neometrix Offset Door Pull.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNRM3012, RM3022, RM3032
-
Product Code#RM3012 - 1"Dia., #RM3022 - 1.25"Dia., #RM3032 - 1.5"Dia.
-
CTC (Length)12”, 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36"
- About this Product
-
Mount DesignStandard / Straight Mount
-
CollectionNeo Metrix Collection
-
StyleTraditional, Contemporary
-
- Dimensions
-
Diameter1" Diameter, 1.25" Diameter, 1.5" Diameter
-
LengthUp to 36" Length
-
DimensionProjection:
RM3012 - 2-1/2"
RM3022 - 3"
RM3032 - 3-1/2"
-
- Installation
-
Screw Pack#1: Thru-Bolt (Wood or Metal Door), Single Pull, #5: Back to Back (Wood or Metal Door), Pull Set*, #6: Concealed (Metal Door), Single Pull, #8: Concealed (Wood Door), Single Pull, #12: Decor Thru-Bolt (Wd or Mtl Door), Single Pull, #13: Back to Back (Glass Door), Pull Set*, #15: Decor Thru-Bolt (Wd or Mtl Door), Single Pull
-
Door Thickness1.75" Thick Door, .5" Thick Door, 2" Thick Door, Other (Add to Order Comments)
-
- Special Features
-
Grip ZoneYes
-
- Finishes
-
FinishPolished Brass (US3), Polished Bronze (US9), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Polished
-
- Compliance Details
-
WarrantyDoor Handle: 1 Year Limited Warranty, Mounting: Lifetime Limited Warranty
-

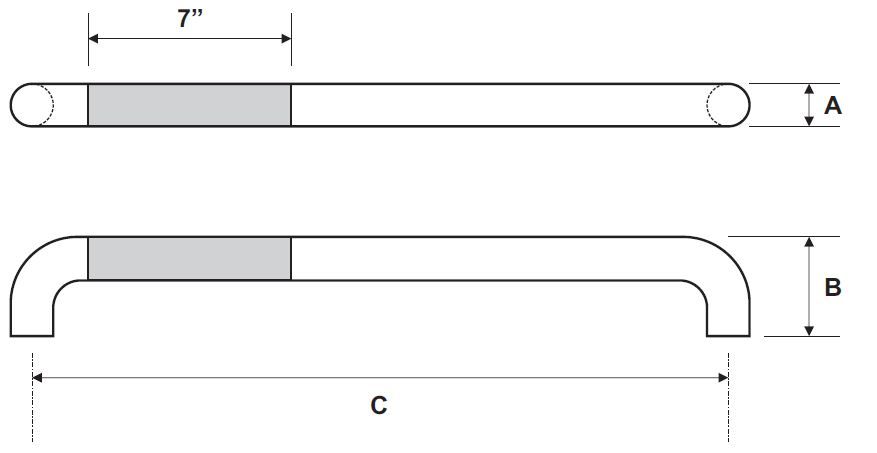

Product # | A | B | C |
RM3012 | 1" | 2-1/2" | up to 36" |
RM3022 | 1-1/4" | 3" | up to 36" |
RM3032 | 1-1/2" | 3-1/2" | up to 36" |
Standard Mountings - Select from Options Above |
||
Also available in Heavy Duty Back to Back Mounting: features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
|
||
Optional Mounting Types - Can be purchased through our office |
||
Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart. To view more details on these mounting types, see Mounting Types for Door Pulls. |
