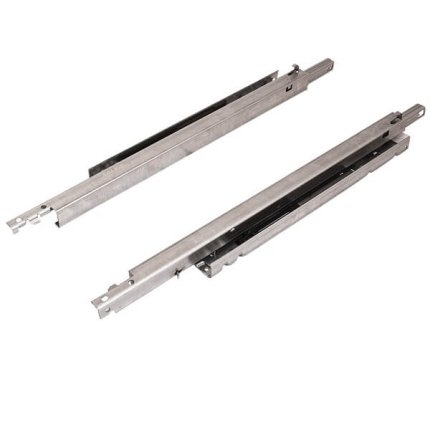

Salice Shelf Slide, Concealed Bottom Mount Slide, Full Extension
The Salice Concealed Bottom Mount Shelf Slide is easily mounted to fixed open shelves, shevles behind doors or the cabinet floor. It provides convenient, simple access to stored items that do not require a drawers. Available in soft close or push to open versions. Can accomodate weights up to 75LB.
PRICED PER PAIR
NOTE: Front clips are required for installation, purchase Height Ajdustable Clip or 6 Way Adjustable Clip separately.
See tabs below for additional information
The Salice Concealed Bottom Mount Shelf Slide is easily mounted to fixed open shelves, shevles behind doors or the cabinet floor. It provides convenient, simple access to stored items that do not require a drawers.

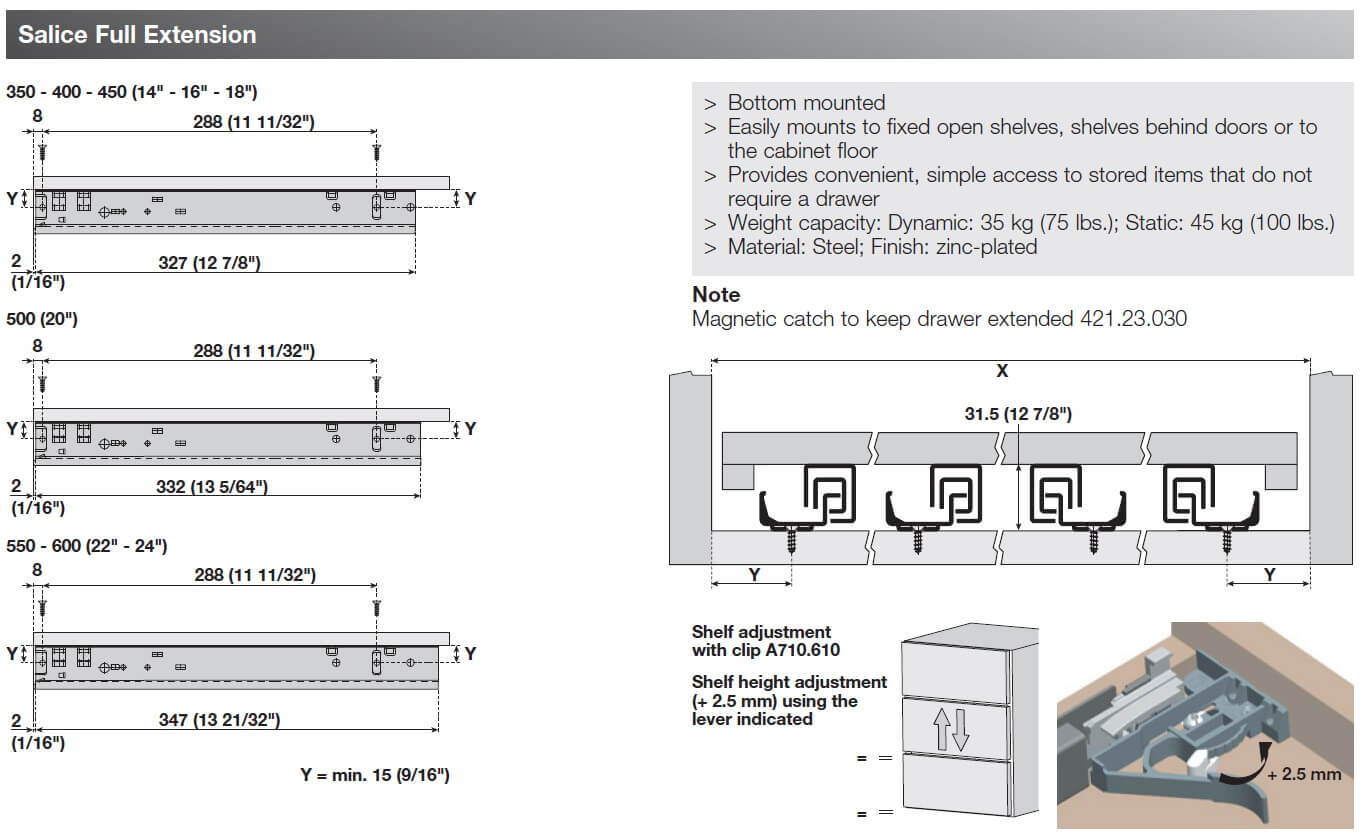

Click here to view the Salice Shelf Slide Catalog Page for Additional Dimensions.
Additional Required Items:
- Front clips are required for installation, purchase Height Ajdustable Clip or 6 Way Adjustable Clip separately.
- Rear Hook Bracket #433.22.000 - Required for shelf installation
- Magnetic Catch to keep drawer extended (optional) #421.23.030
Features:
- Bottom Mounted
- Weight Capacity: Dynamic 75 LB / Static 100 LB
- Material: Steel
- Finish: Zinc Plated
For high quality Drawer Slides, see our Salice A7555 Futura 16 Drawer Slides.
-
Pull Out TypeFull Extension
-
Load Bearing Capacity75 LB
-
MaterialSteel
-
Drawer Length12" Length, 14" Length, 16" Length, 18" Length, 20" Length, 22" Length, 24" Length
-
Mount TypeUndermount
-
Soft Close MechanismYes
-
Push to OpenYes
-
QuickShipNo
-
ManufacturerHafele
-
VersionSoft Close Mechanism, Push to Open Mechanism
