Blum Locking Device T51.1901R, For TANDEM 563/569 Drawer Runners, Height and Side to Side Adjustment - Quick Ship

Blum Locking Device T51.1901R, For TANDEM 563/569 Drawer Runners, Height and Side to Side Adjustment - Quick Ship
0.0

This model is a standard locking device that is compatible with the TANDEM 563 series drawer slides. The locking device is mounted to the drawer with wood screws (screws are not included) and features both height and side to side adjustment. Available in right and left handed versions (both are required per drawer), choose from the dropdown below.

Ships within 1 business day!

See full product details in the tabs below.

PRICED PER PIECE

Price: $1.65
Version
Qty
Save to wishlist
Note: you must order at least 5 items
Fast turnaround
Made in USA
SKU BT51.1901R
Shipping See Shipping Tab Below
Description

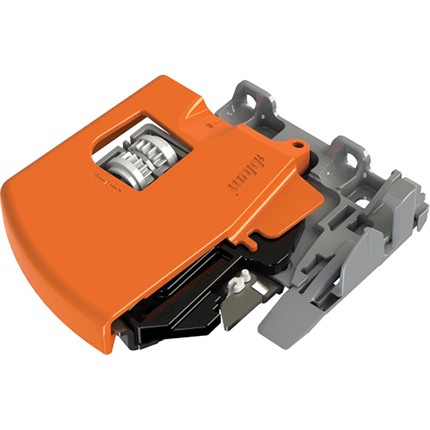

Locking devices are an essential part of drawer runner installation. This standard locking device features height and side to side adjustment.

Material: Nylon / zinc

Finish: Orange

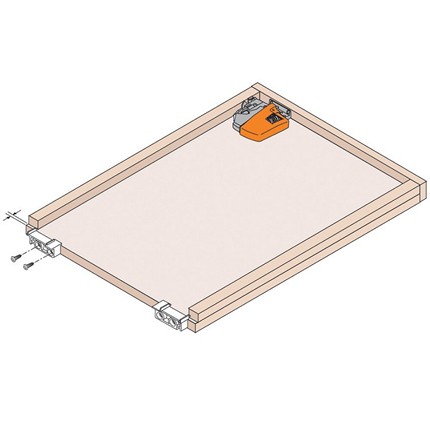

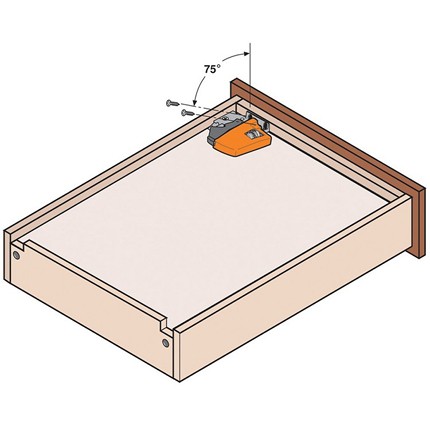

Installation: The locking device is mounted to the drawer with wood screws (screws are not included).

Runner System: This locking device is compatible with the TANDEM 563 series drawer slides. The drawer slides can be ordered separately through our site.

Minimum Inside Drawer Width: 6-11/16" (170 mm)

Height Adjustment: +1/8" (3 mm)

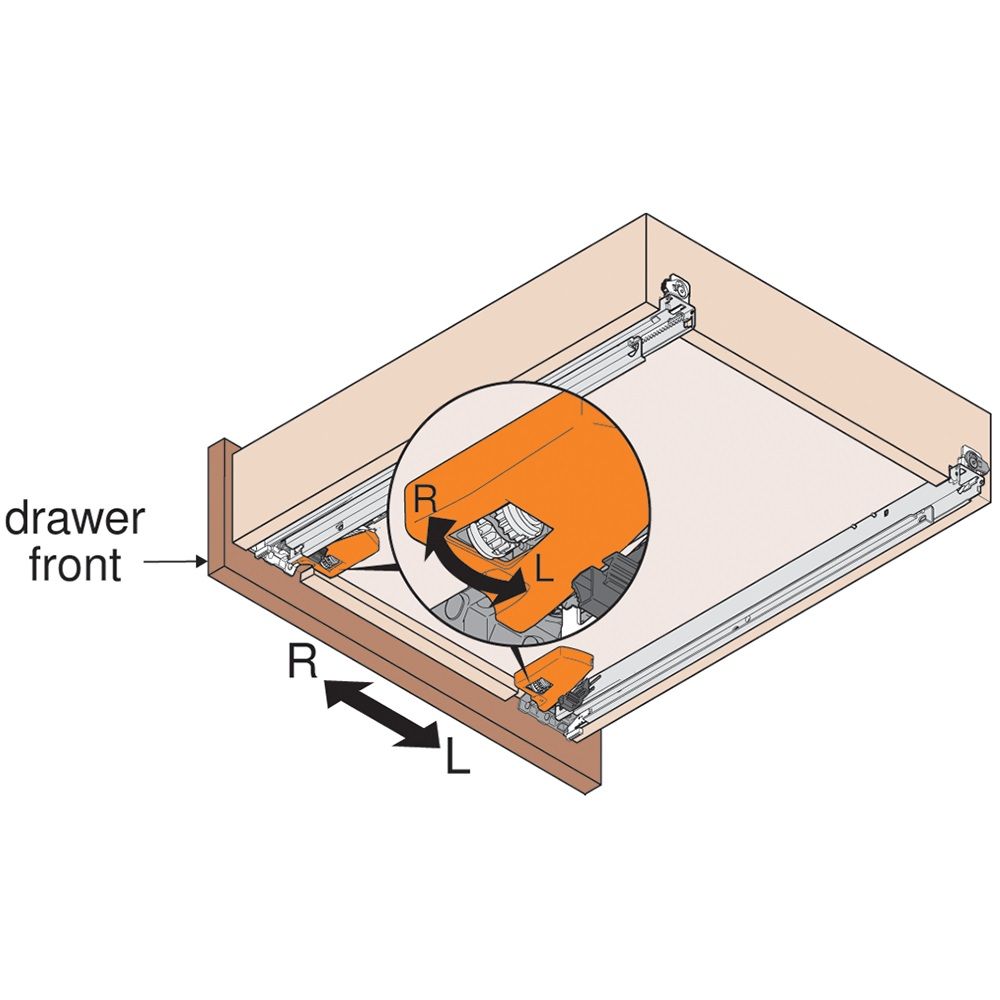

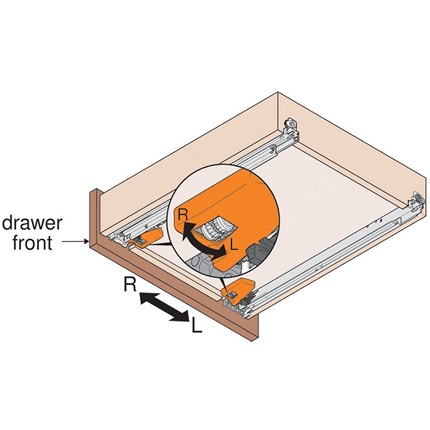

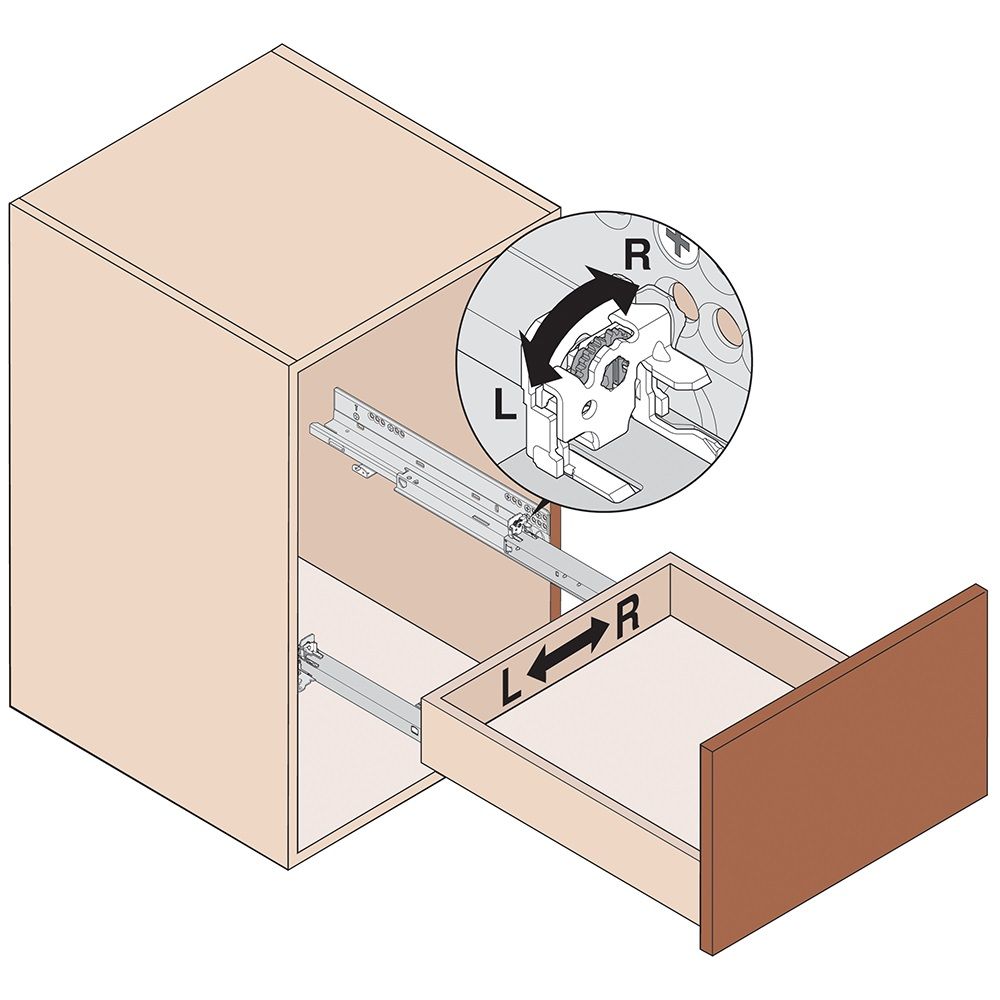

Side to Side Adjustment: ±1/16" (1.5 mm)

Features:

  • Constructed from heavy duty plastic
  • Steel base with synthetic, spring-loaded release levers
  • Self adjusting drawer length tolerance
  • Height adjustment
  • Side to side adjustment

Please note, depth and tilt adjustment is available on the actual drawer runner, and height and side to side adjustment is available on this locking device. For a locking device without side to side adjustment, see our T51.1801 Locking Device.

Version: This locking device comes in a choice of two versions:

  • T51.1901R: Right handed locking device
  • T51.1901L: Left handed locking device

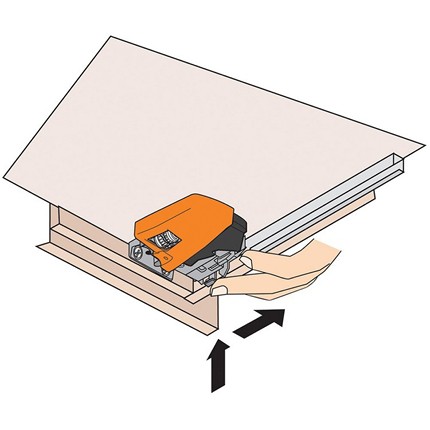

Please note, both a right and a left locking device are required per drawer. The captive right device locks into the drawer slide while the self aligning left device sits in the slide. Both locking devices have adjusting capabilities.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product has a lifetime warranty against defects in materials and workmanship.
Click here to view our Full Warranty Policy.

Click here to view our Blum Locking Device T51.1801R, For TANDEM Drawer Runners, Height Adjustment.
