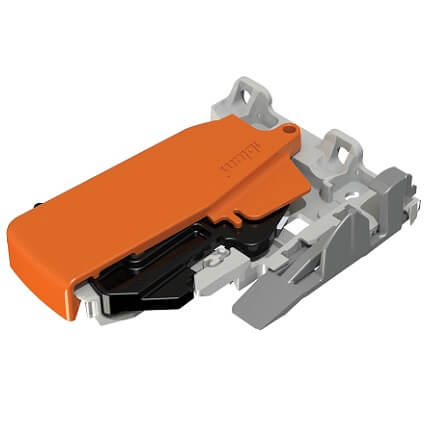

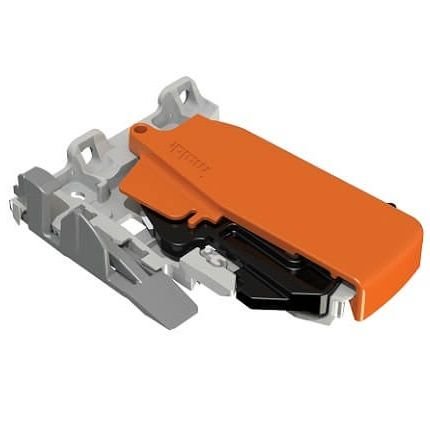

Blum Locking Device T51.1801R, For TANDEM 563/569 Drawer Runners, Height Adjustment - Quick Ship

Blum Locking Device T51.1801R, For TANDEM 563/569 Drawer Runners, Height Adjustment - Quick Ship

This model is a standard locking device that is compatible with the TANDEM 563 series drawer slides. The locking device is mounted to the drawer with wood screws (screws are not included) and features height adjustment. Available in right and left handed versions (both are required per drawer), choose from the dropdown below.

Ships within 1 business day!

See full product details in the tabs below.


Price: $0.78
Save to wishlist
Note: you must order at least 10 items
Fast turnaround
Made in USA
SKU BT51.1801R
Shipping See Shipping Tab Below

Locking devices are an essential part of drawer runner installation. This standard locking device features height adjustment.

Material: Nylon / zinc

Finish: Orange

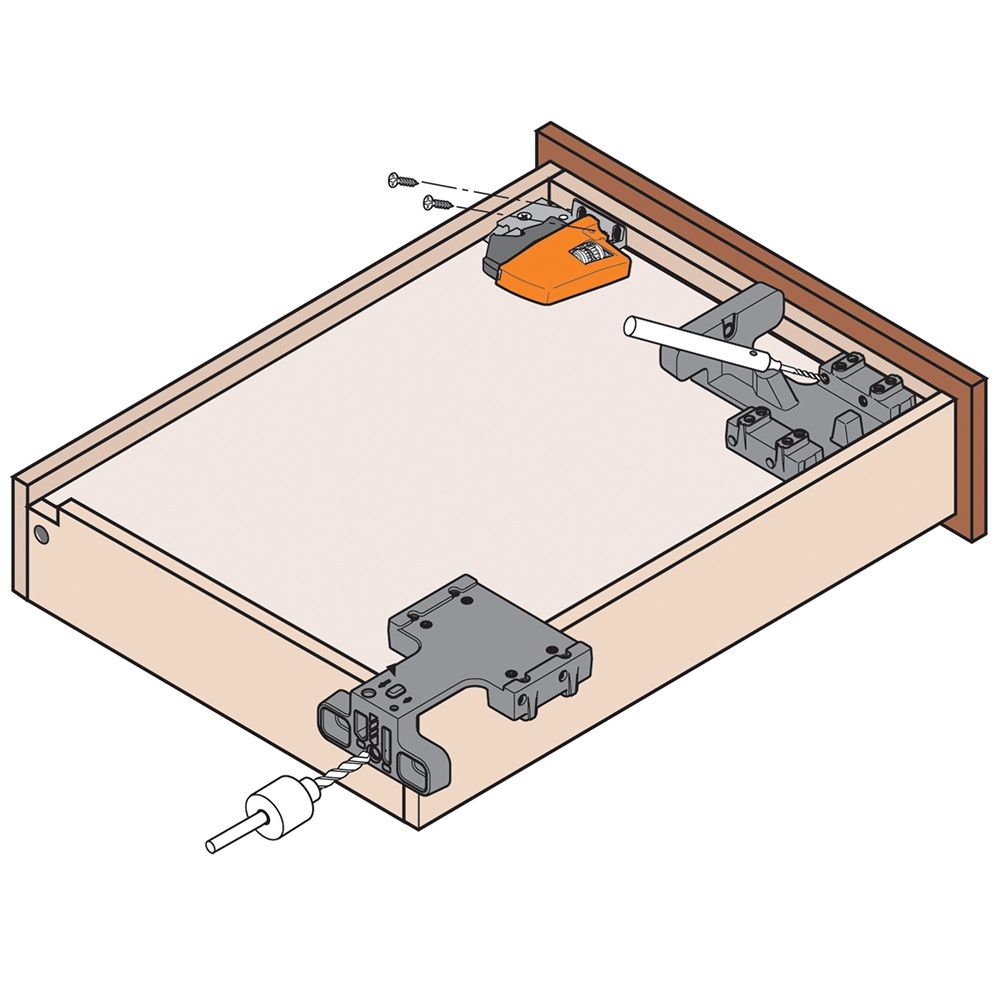

Installation: The locking device is mounted to the drawer with wood screws (screws are not included).

Runner System: This locking device is compatible with the TANDEM 563 series drawer slides. The drawer slides can be ordered separately through our site.

Minimum Inside Drawer Width: 4-7/8" (124 mm)

Height Adjustment: +1/8" (3 mm)


  • Constructed from heavy duty plastic
  • Zinc die-cast with synthetic, spring-loaded release levers
  • Self adjusting drawer length tolerance
  • Height adjustment

Please note, depth and tilt adjustment is available on the actual drawer runner, and height adjustment is available on this locking device. Side to side adjustment is not available on this locking device. For a locking device with side to side adjustment, see our T51.1901 Locking Device.

Version: This locking device comes in a choice of two versions:

  • T51.1801R: Right handed locking device
  • T51.1801L: Left handed locking device

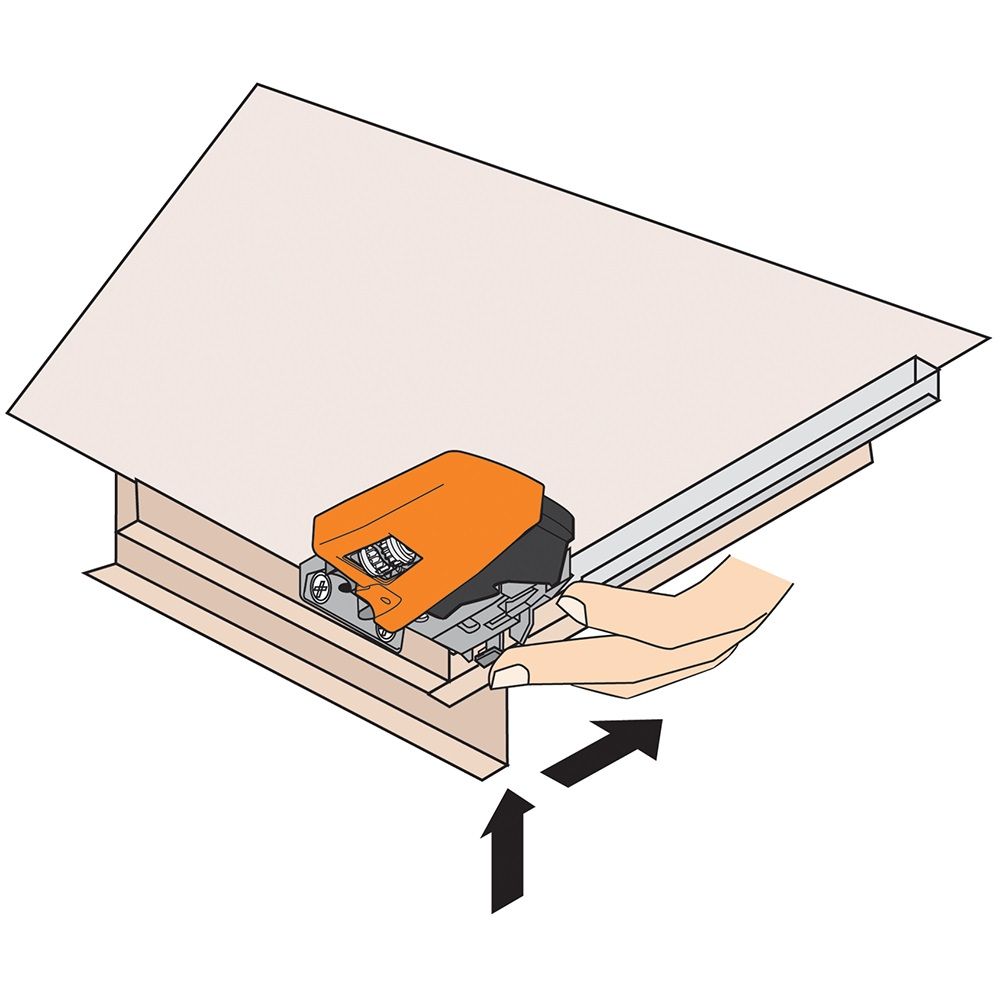

Please note, both a right and a left locking device are required per drawer. The captive right device locks into the drawer slide while the self aligning left device sits in the slide. Both locking devices have adjusting capabilities.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product has a lifetime warranty against defects in materials and workmanship.
Click here to view our Full Warranty Policy.

Click here to view our Blum Drawer Runner 563F3050B, TANDEM plus BLUMOTION, For 5/8" to 3/4" Drawers.
