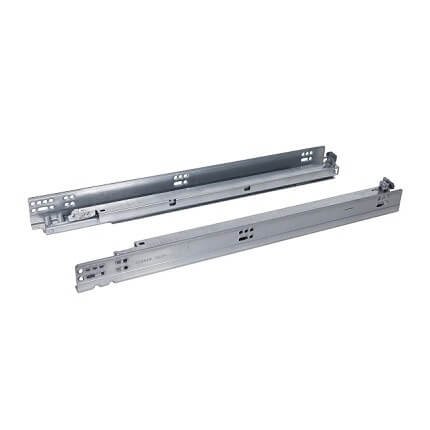

Blum Drawer Runner 563H3050B, TANDEM plus BLUMOTION, Full Extension, For 1/2" to 5/8" Thick Wood Drawers - Quick Ship
This model is a pair of full extention drawer runners that are compatible with wood drawers from 1/2" to 5/8" thick. TANDEM plus BLUMOTION concealed runners offer four dimensional adjustment, smooth running action and a soft close feature, making them the perfect solution for virtually any drawer. The runner system is mounted with locking devices, which enable the drawer to be adjusted. Available in a choice of four lengths, choose from the dropdown below.
PRICED PER SET
See tabs below for additional information
This TANDEM plus BLUMOTION concealed drawer runner brings together all of the features, innovations and benefits of runner systems, with unmatched quality, style and running action.
Material: Steel
Finish: Zinc plated
Length: This runner system comes in a choice of four lengths:
- 563H3050B:
- Drawer Length: 12" (305 mm)
- Runner Length: 12-9/16" (319 mm)
- Overall Cabinet Depth: 15" (381 mm)
- 563H3810B:
- Drawer Length: 15" (381 mm)
- Runner Length: 15-9/16" (395 mm)
- Overall Cabinet Depth: 18" (457 mm)
- 563H4570B:
- Drawer Length: 18" (457 mm)
- Runner Length: 18-17/32" (471 mm)
- Overall Cabinet Depth: 21" (533 mm)
- 563H5330B:
- Drawer Length: 21" (533 mm)
- Runner Length: 21-9/16" (548 mm)
- Overall Cabinet Depth: 24" (610 mm)
Drawer Type: For 1/2" (13 mm) to 5/8" (16 mm) thick wood drawers
Features:
- Concealed undermount construction adds stability and support
- Full extension runners provide maximum access to the drawer
- For face frame and panel cabinetry

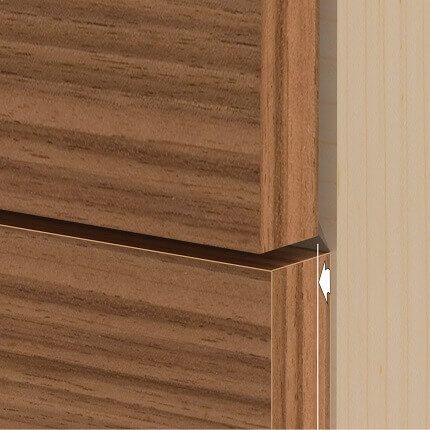

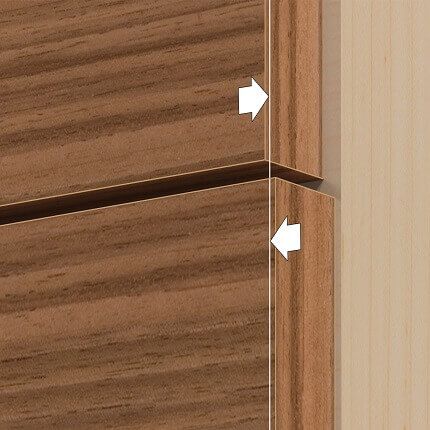

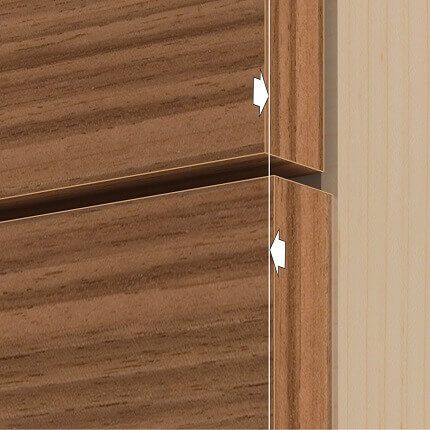

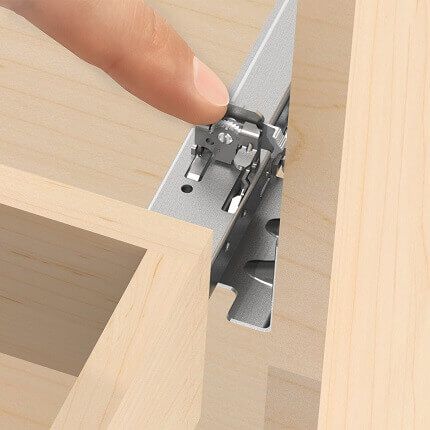

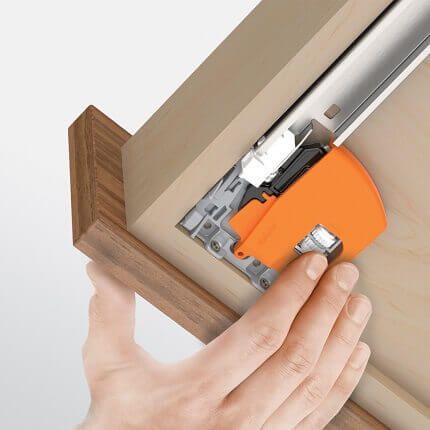

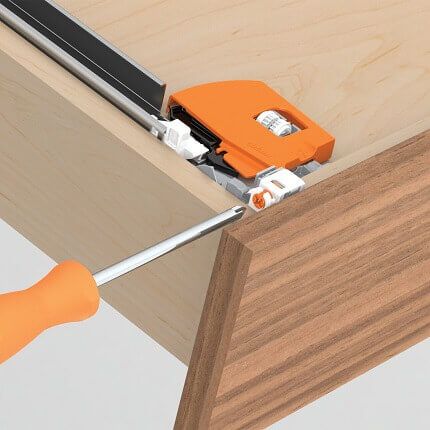

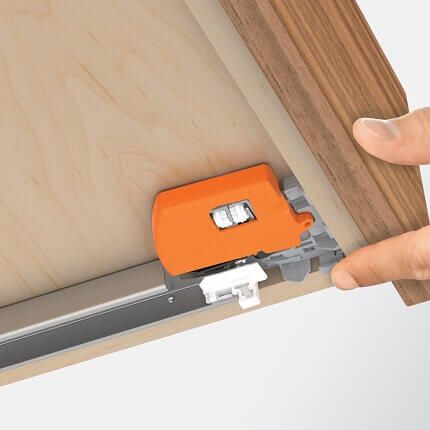

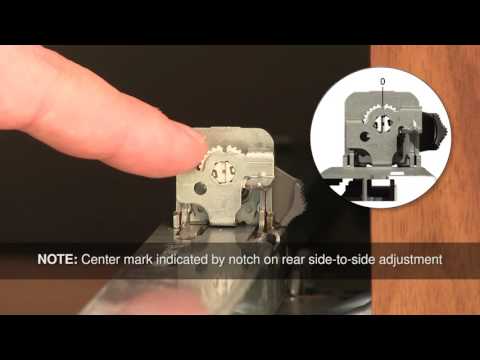

- Four dimensional adjustment - The side, depth, height and tilt can be adjusted to allows for precise allignment of drawer fronts. See Specs and Installation and videos above for details.

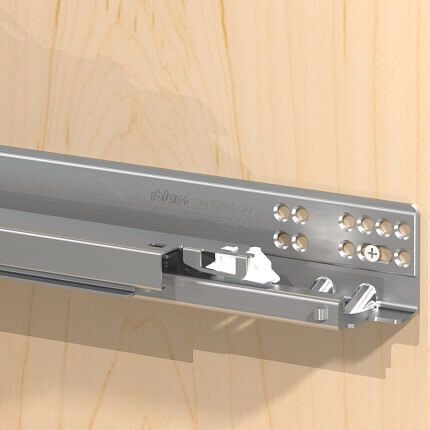

- Elongated holes for additional depth adjustment
- Bottom mount holes on 15", 18" and 21" drawers
- Excellent stability and minimal sag, even with a fully loaded drawer
- TANDEM smooth running action

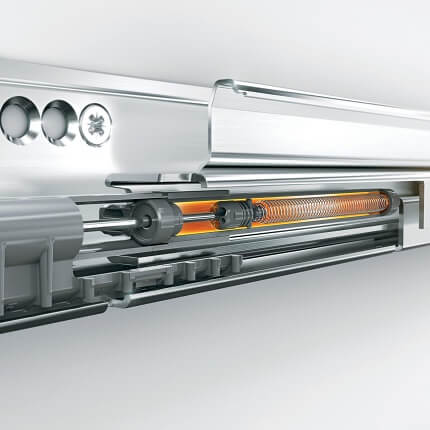

- BLUMOTION soft closing - This feature allows the drawer to close softly and quietly regardless of its size, weight or the force with which is was closed.
Application: TANDEM plus BLUMOTION drawer runners can be used for:

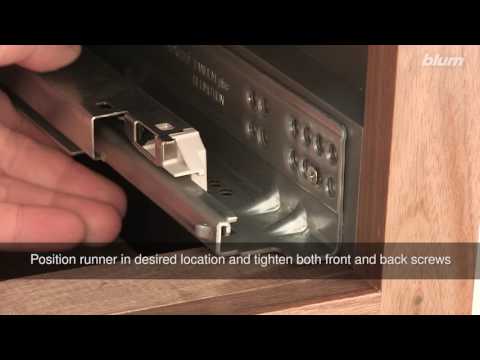

Installation: With screws (screws are not included), back attachment by socket

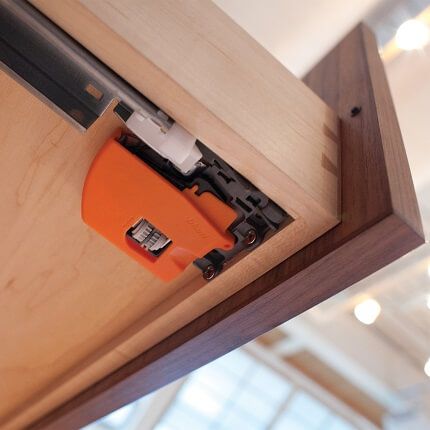

Locking Devices: TANDEM plus BLUMOTION runner systems are mounted to the drawer with locking devices, which enable the drawer to be adjusted. Please note, Locking Devices are not included in this product and can be ordered separately through our site.
Item Packaging Quantity: This product is priced per set and includes two drawer runners for locking devices.

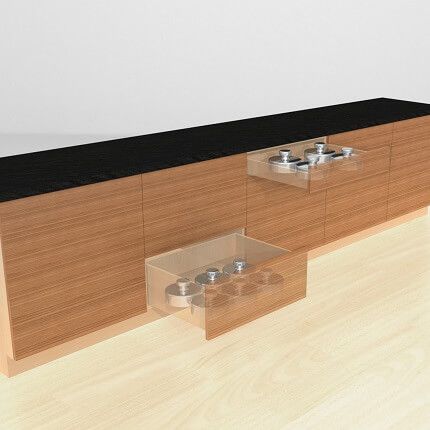

Certifications: TANDEM plus BLUMOTION concealed runners are designed to meet or exceed ANSI/BHMA A156.9 Grade 1 test specifications with a 100 lb static load.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Specs and Installation for exact measurements.
This product has a lifetime warranty against defects in materials and workmanship.
Click here to view our Full Warranty Policy.
Click here to view our Blum Angle Restriction Clip 70T7553, For 125° and 155° Hinges.
Additional options are available, please contact us for details and pricing.
- SERVO-DRIVE - electrical opening support system
SERVO-DRIVE is a low voltage electronic drive system that when triggered by a single touch or a light pull of the hande, the drawer opens automatically. This feature is beneficial for those with limited mobility as well as kitchens designed without handles. The drawer is independent of the drive unit and can be stopped at any position, and with flexible cabling the power supply can be positioned almost anywhere within the run of cabinets. SERVO-DRIVE is easy to integrate and deactivate with no necessary modification to the drawer. In addition, all SERVO-DRIVE components are maintenance free and comply with all safety standards.
Additional accessories are recommended, please contact us for details and pricing.
- Rear mounting brackets - Zinc coated steel brackets to be used in face frame cabinets only. Two brackets are required per drawer.
- Side spacer - 1" thick spacer that separates the TANDEM runners from the cabinet side for clearance in interior roll-out applications.
- TANDEM end cap - A cover for the front edge of TANDEM runners when used in interior roll-out applications.
- Assembly devices - POZI screwdriver and bits, screws and templates (for marking/pre-boring drawer runners).
