Securitron AQD2 Series Switching Power Supply

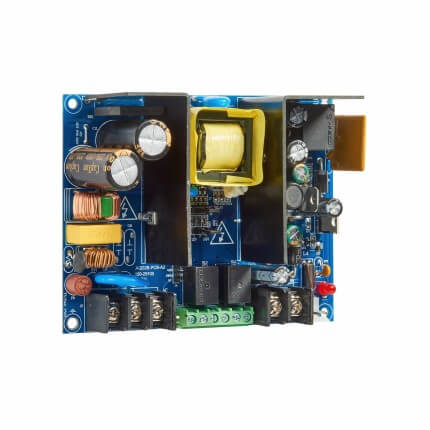

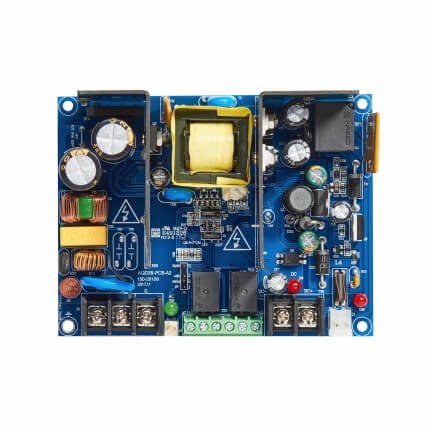

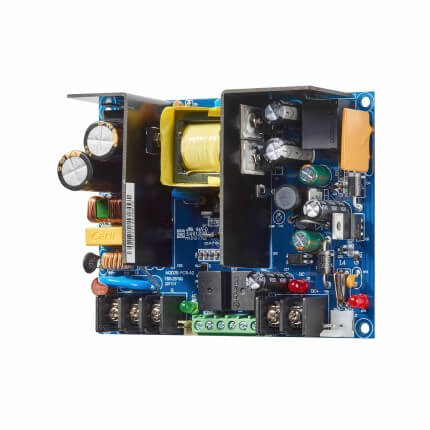

Securitron AQD2 Series Switching Power Supply, 2 Amp, Dual Voltage Power Supply Board Only
Securitron

Dual voltage, UL-approved, monitored switching power supplies are available in the Securitron AQD2 Series. Featuring an integrated battery charger, these units can be chosen in the field. With up to 16 separately controlled power limiting outputs, they can deliver 2 Amps continuously at 12VDC or 24VDC.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCAQD2B
    • Market price:$219.00
      • save 40%
    • Starting price: Price: $131.40 per item


    Dual voltage, UL-approved, monitored switching power supplies are available in the Securitron AQD2 Series. Featuring an integrated battery charger, these units can be chosen in the field. With up to 16 separately controlled power limiting outputs, they can deliver 2 Amps continuously at 12VDC or 24VDC.

    Features:

    • 115 or 230 VAC input
    • All combinations of AQ power supplies and distribution boards are UL listed
    • Dual voltage 12 or 24 VDC field selectable continuous output
    • Up to 82% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
    • Tolerates brownout or overvoltage input ± 15% of nominal voltage
    • Thermal shutdown protection with auto restart
    • Circuit breaker protects against overcurrent and reverse battery faults
    • Integrated battery charging circuit prevents overvoltage on locking devices
    • Available with a single relay fire trigger or individually triggered relayed outputs

    Specifications:

    • Operating Temperature: 32˚ to 110˚ F [0˚ to 43˚ C]  , Indoor use
    • Electrical:
      • Supports up to two (2) sealed gel, AGM or wet lead acid batteries
      • Up to 93% efficiency
      • Low noise design with ripple as low as 70mV p-p
      • Outputs are Class 2 limited when used with PTC polyswitch distribution boards
      • Dual voltage 12 or 24 VDC field selectable continuous output
      • Single voltage 12 or 24 VDC continuous output

    Certification:

    • UL294 Listed
    • UL603 Listed
    • ULC-S318 Listed
    • ULC-S533 Listed
    • RoHS Compliant
    • REACH Compliant

    PRICED PER UNIT

    This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securitron AQD1 Series Switching Power Supply

      • SKU
        SCAQD2B
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Model
      (AQD2) 2 Amp, Dual Voltage Power Supply with Enclosure, (AQD2B) 2 Amp, Dual Voltage Power Supply Board Only, (AQD2-1R) 2 Amp, Dual Voltage Power Supply with Enclosure, Fire Trigger, (AQD2-4C2) 2 Amp, Dual Voltage Power Supply with Enclosure, 4 Outputs, 2 Amp PTC Polyswitch, (AQD2-8F8R2) 2 Amp, Dual Voltage Power Supply with Enclosure, 8 Outputs, 2 Amp Glass Fuse, 8 Relays, Fire Trigger
    • Compliance Details
      • Compliance Details
        UL294 Listed, UL603 Listed, ULC-S318 Listed, ULC-S533 Listed, RoHS Compliant, REACH Compliant
      • Warranty
        Lifetime Limited Warranty
