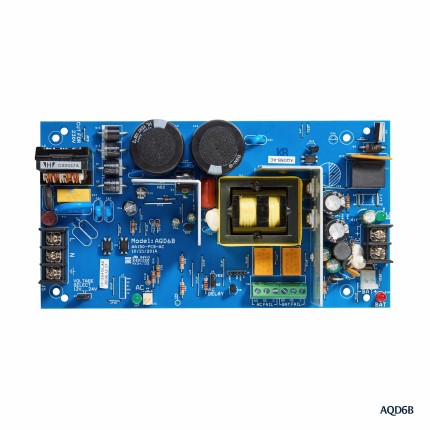

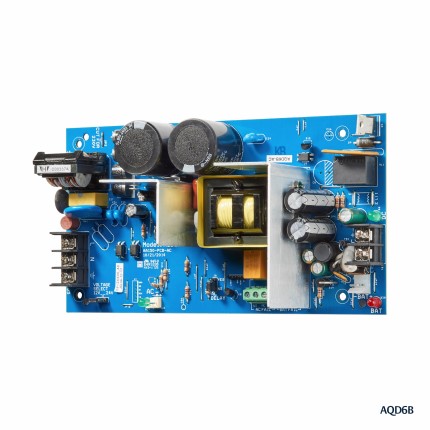

Securitron AQD6 Series Switching Power Supply

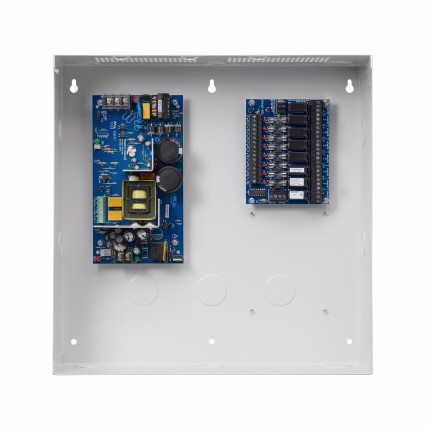

Dual voltage, UL-approved, monitored switching power supplies are available in the Securitron AQD6 Series. Featuring an integrated battery charger, these units can be chosen in the field. With up to 16 separately controlled power limiting outputs, they can deliver 6 Amps continuously at 12VDC or 24VDC.

Features:

• 115 or 230 VAC input
• All combinations of AQ power supplies and distribution boards are UL listed
• Dual voltage 12 or 24 VDC field selectable continuous output
• Up to 82% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
• Tolerates brownout or overvoltage input ± 15% of nominal voltage
• Thermal shutdown protection with auto restart
• Circuit breaker protects against overcurrent and reverse battery faults
• Integrated battery charging circuit prevents overvoltage on locking devices
• Available with a single relay fire trigger or individually triggered relayed outputs

Specifications:

• Operating Temperature: 32˚ to 110˚ F [0˚ to 43˚ C]  , Indoor use
• Electrical:
  • Supports up to two (2) sealed gel, AGM or wet lead acid batteries
  • Up to 93% efficiency
  • Low noise design with ripple as low as 70mV p-p
  • Outputs are Class 2 limited when used with PTC polyswitch distribution boards
  • Dual voltage 12 or 24 VDC field selectable continuous output
  • Single voltage 12 or 24 VDC continuous output

Certification:

• UL294 Listed
• UL603 Listed
• ULC-S318 Listed
• ULC-S533 Listed
• RoHS Compliant
• REACH Compliant

PRICED PER UNIT

This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
