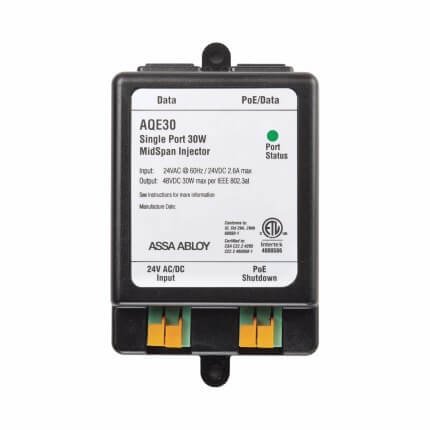

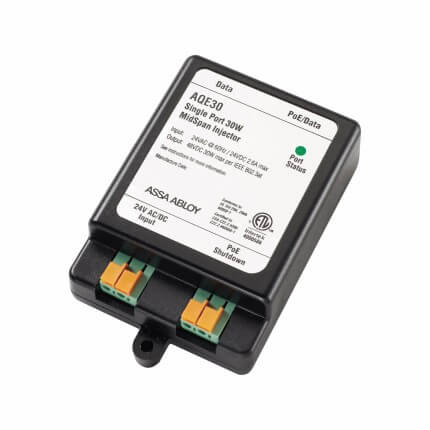

Securitron AQE Single Port Injector PoE

Securitron AQE Single Port Injector PoE
Securitron

With our most recent innovation, Securitron combines power and data. Access control and security applications are the focus of the Securitron AQE Single Port Injector PoE, a single port Power over Ethernet (PoE) MidSpan Injector. These modules make it possible to power PoE devices using a non-PoE source. PoE equipment such as door controllers and cameras are powered by AQE Series Injectors.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCAQE30
    • Market price:$264.00
      • save 40%
    • Starting price: Price: $158.40 per item


    With our most recent innovation, Securitron combines power and data. Access control and security applications are the focus of the Securitron AQE Single Port Injector PoE, a single port Power over Ethernet (PoE) MidSpan Injector. These modules make it possible to power PoE devices using a non-PoE source. PoE equipment such as door controllers and cameras are powered by AQE Series Injectors.

    Features:

    • Allows powering of PoE devices from a non-PoE source
    • Operates from low voltage 24 VAC or 24 VDC input
    • Reset feature allows PoE shutdown
    • Visual diagnostics via on board LED

    Specifications:

    • Operating Temperature: 32˚ to 120˚ F [0˚ to 49˚ C]
    • Electrical:
      • 24 VAC or 24 VDC ± 15% input
      • 1.4 or 2.6 A input current
      • 50 VDC output
      • 300 or 600 mA output current
      • 5 to 24 VDC, 10 mA max shutdown terminals
      • 100m (328 feet) max data cable length
      • 10/100/1000 data rate Base-T compliant

    Certification:

    • UL 294B Listed
    • UL/CUL 60950-1
    • 15W IEEE 802.3af
    • 30W IEEE 802.3at
    • CSA C22.2 No.205-M1983, Signal Equipment
    • RoHS Compliant

    PRICED PER UNIT

    This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securitron SWK High Wind Kit for 20 W Solar Panel

      • SKU
        SCAQE30
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Input Amps
      2.6
    • Input Voltage
      4 VAC or VDC
    • Output Current
      600 mA
    • Compliance Details
      • Compliance Details
        UL 294B Listed, UL/CUL 60950-1, 15W IEEE 802.3af, 30W IEEE 802.3at, CSA C22.2 No.205-M1983, Signal Equipment, RoHS Compliant
      • Warranty
        Lifetime Limited Warranty
