Securitron AQL6 Series Intelligent Power System

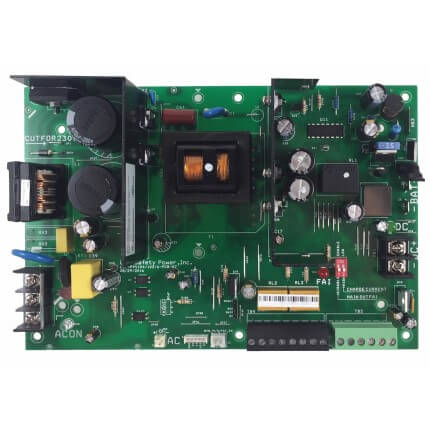

Securitron AQL6 Series Intelligent Power System, 6 Amp, Dual Voltage Power Supply Only
Securitron

Dual voltage, field-selectable switching power supply from the UL-listed Securitron AQL6 Series delivers 6 Amp from its Power Supply. With an additional 16 outputs that can be supported, both options come with a dedicated fast battery charging circuit. Optional (B100) multi-voltage and (NL4) network monitoring and control are available with factory or field configuration.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCAQL6
    • Market price:$420.00
      • save 35%
    • Starting price: Price: $273.00 per item


    Dual voltage, field-selectable switching power supply from the UL-listed Securitron AQL6 Series delivers 6 Amp from its Power Supply. With an additional 16 outputs that can be supported, both options come with a dedicated fast battery charging circuit. Optional (B100) multi-voltage and (NL4) network monitoring and control are available with factory or field configuration.

    Features:

    • Low battery cutoff protects batteries from deep discharge
    • Dedicated fast charger prolongs battery life
    • Enhanced surge immunity for input/output protection
    • LockSafe™ keeps locks cooler by providing a separate, dedicated battery charging circuit
    • OutSmart™ technology dual-color LED notification which prevents incorrect voltage application to locking devices [Green: 12 V | Blue: 24 V
    • Auxiliary output rated 1.4 A continuous
    • Mix and match UL Listing
    • Instant auto-switch to battery on AC loss
    • Multi-voltage with B100
    • Integrated Fire Alarm Interface (FAI) allows main output shutdown or disconnect on a per output basis when using an R8 output module
    • Network ready with optional Netlink™ module

    Specifications:

    • Operating Temperature: 32˚ to 120˚ F [0˚ to 49˚ C]
    • Electrical:
      • 12 VDC or 24 VDC output
      • 12 VDC & 24 VDC output (optional) with B100
      • 120 or 230 VAC input
      • Up to 91% efficiency

    Certification:

    • UL 294 Listed
    • UL 603 Listed
    • UL 1076 Listed
    • ULC-S318 Listed
    • ULC-S318 Listed
    • CSA C22.2 #107.1
    • RoHS Compliant

    PRICED PER UNIT

    This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securitron AQL4 Series Intelligent Power System

      • SKU
        SCAQL6
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Model

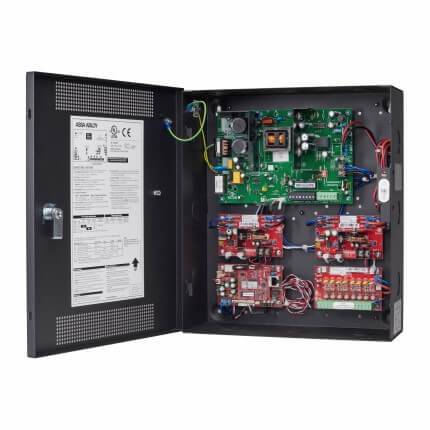

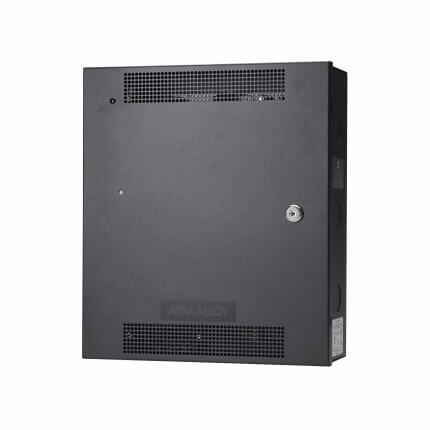

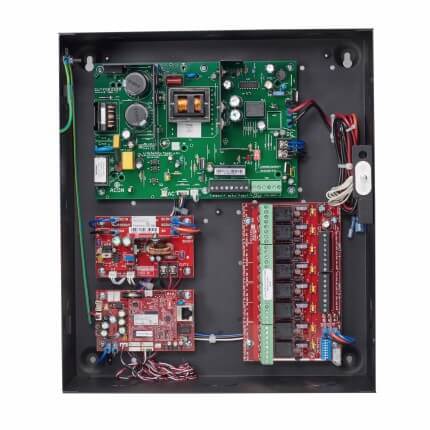

      (AQL6-E1) Dual Voltage Power Supply with E1 Enclosure, (AQL6) Dual Voltage Power Supply Only, (AQL6-R8E1) Dual Voltage Power Supply, Power Relay Module with E1 Enclosure, (AQL6-B100R8E1) Dual Voltage Power Supply, Secondary Voltage Module, Power Relay Module with E1 Enclosure, (AQL6-B100D8NL4E1) Dual Voltage Power Supply, Secondary Voltage Module, Power Distribution Module with Netlink™ Network Monitoring and E1 Enclosure
    • Compliance Details
      • Compliance Details
        UL 294 Listed, UL 603 Listed, UL 1076 Listed, ULC-S318 Listed, ULC-S319 Listed, CSA C22.2 #107.1, RoHS Compliant
      • Warranty
        Lifetime Limited Warranty
