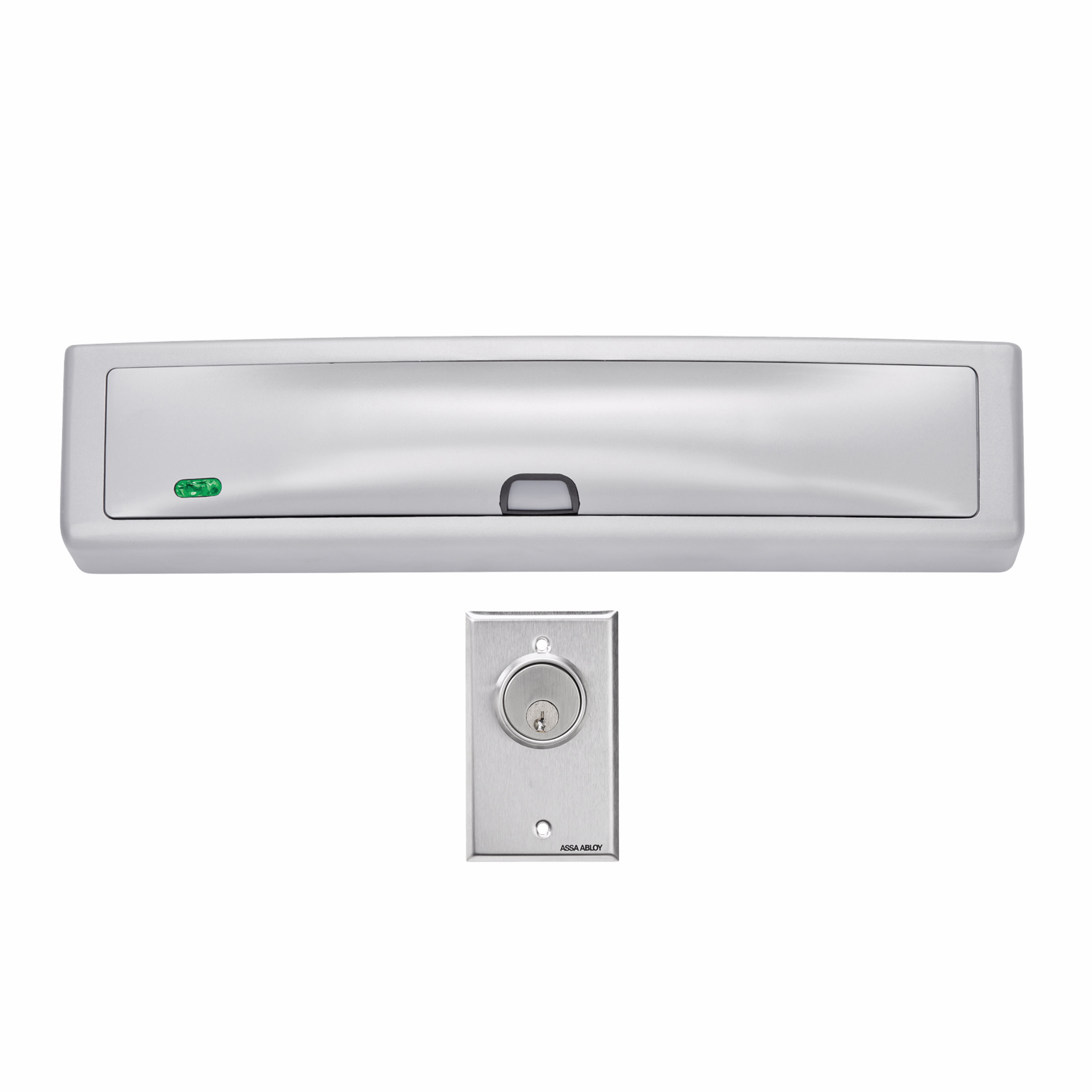

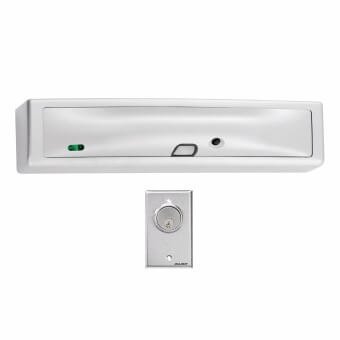

Securitron DEM680E EcoMag, Delayed Egress Magnalock, Electronic Lock
The Securitron's DEM680E EcoMag, Delayed Egress Magnalock, Electronic Lock is a direct replacement for the iMXDA, building on the technology of the Securitron EcoMag Series. The DEM680E standard model is HUGS-compliant and other various models that comply with specific codes. It was designed for applications that call for a lock that delays the opening of a door. Use on single, out-swinging doors that are part of the interior and perimeter exit.
PRICED PER UNITÂ
The Securitron's DEM680E EcoMag, Delayed Egress Magnalock, Electronic Lock is a direct replacement for the iMXDA, building on the technology of the Securitron EcoMag Series. The DEM680E standard model is HUGS-compliant and other various models that comply with specific codes. It was designed for applications that call for a lock that delays the opening of a door. Use on single, out-swinging doors that are part of the interior and perimeter exit.
Features:
- Autosensing dual voltage with microprocessor technology – no field adjustment required
- Patented BondSTAT magnetic bond sensor and integrated Door Position Switch (DPS)
- Instant release circuit – no residual magnetism
- Easily visible LEDs indicate status on secure side of door
- Fully integrated delay and detection features for fast installation of delayed egress system
- Auto calibrated door movement detection up to 1/4" [6.35mm]
- Alarm strobe indicates countdown; stays illuminated post alarm until reset
- Size optimized to work with door closers
- External alarm relay isolated dry contact (1 A at 24 VDC)
Optional Feature:Â
- DEM680E-CA15S California - required 15s exit delay
- DEM680E-CA30S California - required 30s exit delay
- DEM680E-CH Chicago - required 15s exit delay, 1s nuisance delay, and 0s bypass time
Specifications:Â
- Holding Force: Â 1,200 lbs (544kg)
- Operating Temperature: 32° to 110°F (0° to 43°C) *for indoor use only
- Electrical Consumption:
- Minimum Current: 95 mA (± 10%) at 12 VDC, 65 mA (± 10%) at 24 VDC
- Maximum Current: 575 mA (± 10%) at 12 VDC, 315 mA (± 10%) at 24 VDC
Certifications:Â
- UL 294 Listed
- UL 10C Fire Rated 1 hour
- CSFM – California State Fire Marshal approved (DEM680E-CA only)
- CAN/ULC S104 Fire Door Conformant
- NFPA 101
PRICED PER UNIT
This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.Â
Click here to view our Securitron M680E EcoMag Series Magnalock, Electronic Lock
-
QuickShipNo
-
ManufacturerSecuritron
-
ModelStandard Model, California 15 Second Compliant, California 30 Second Compliant, Chicago Compliant
- About this Product
-
Collection / SeriesEcoMag
-
Lock TypeMagnetic Lock
-
- Finishes
-

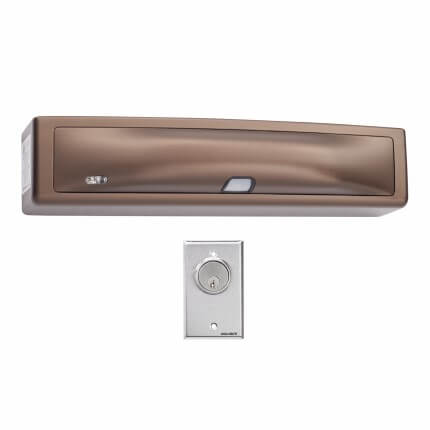

FinishBright Brass (605), Satin Brass (606), Satin Bronze (612), Dark Satin Bronze, Equiv (613e), Satin Aluminum, Clear Anodized (628), Bright Stainless Steel (629), Satin Stainless Steel (630), Black Suede Powder Coat (BSP)
-
- Compliance Details
-
Compliance DetailsUL 294 Listed, UL 10C Fire Rated 1 hou, CSFM – California State Fire Marshal approved (DEM680E-CA only), CAN/ULC S104 Fire Door Conformant, NFPA 101
-
WarrantyLifetime Limited Warranty
-
