Securitron DSB Dual Sense Egress Bar

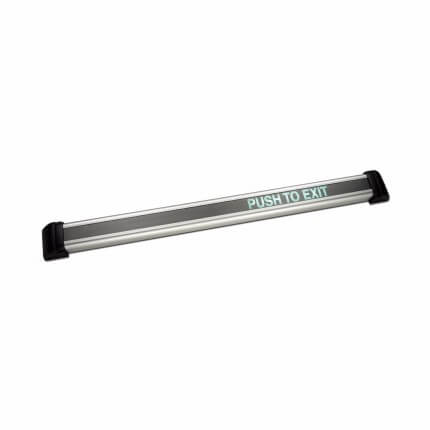

Securitron DSB Dual Sense Egress Bar, Non-Illuminated, 36" Lenght, Clear Anodized Finish
Securitron

For usage on magnetically secured, non-fire-rated doors, the Dual Sense  Egress Bar (DSB) can be used. With its dual independent switch circuits for locking and unlocking the lock, the DSB is specifically made to meet the latest construction and life safety requirements. All you have to do to exit freely is touch the bar or use its mechanical movement. The DSB can be installed on any kind of indoor door made of metal, aluminum, or wood.  Meets "no special tools or knowledge" requirements.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCDSBCL36
    • Market price:$623.00
      • save 40%
    • Price: $373.80


    For usage on magnetically secured, non-fire-rated doors, the Dual Sense  Egress Bar (DSB) can be used. With its dual independent switch circuits for locking and unlocking the lock, the DSB is specifically made to meet the latest construction and life safety requirements. All you have to do to exit freely is touch the bar or use its mechanical movement. The DSB can be installed on any kind of indoor door made of metal, aluminum, or wood.  Meets "no special tools or knowledge" requirements.

    Features:

    • Redundant switches
    • Release triggered by either 1/8" mechanical movement or reliable touch sense technology
    • Resistant to interference from radio frequency or electromagnetic frequency and external impact/ bounce attempts
    • All metal construction
    • Can be field cut to fit nonstandard door widths
    • 16 ft. [4.8m] 22 AWG 6 conductor cable and armored door cord included
    • Resists electrostatic discharge up to 27,000 volts

    Models:

    • Non-Illuminated
    • Illuminated
    • ElectroLynx, Illuminated
      • Available in 36" length only
      • ElectroLynx™ , a system of universal Molex™ plug-in connectors and standardized color-coded wiring, makes installing electrified doorway components a snap! Pre-wired doors, frames and hardware mean that installation is fool-proof and future-proof.

    Specifications:

    • Operating Temperature: +32 to +120F [0 to +49C] , Indoor use
    • Electrical:
      • Dual Sense Bar Only— 24 mA at 12 or 24 VDC
      • Dual Sense Bar with Illumination— 44 mA at 12 or 24 VDC

    Certification:

    • CAN/ULC-S533 Listed
    • CSA-C22.2 No. 205 Listed
    • NFPA 101 Compliant
    • ANSI/UL 294 Listed

    PRICED PER UNIT

    This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securitron SP-1 Capacitive Touch Sense® Switch

      • SKU
        SCDSBCL36
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Length
      36", 42", 48"
    • Touch Bar Cover Plates
      No Cover Plate, Set of 2, Black Anodized (TCP-BK), Set of 2, Clear Anodized (TCP-CL)
    • Model
      Non-Illuminated, Illuminated,, ElectroLynx, Illuminated
    • Finishes
      • Finish
        Black Anodized (BK), Clear Anodized (CL)
    • Compliance Details
      • Compliance Details
        CAN/ULC-S533 Listed, CSA-C22.2 No. 205 Listed, NFPA 101
      • ANSI Designation
        ANSI/UL 294 Listed
      • Warranty
        Lifetime Limited Warranty
