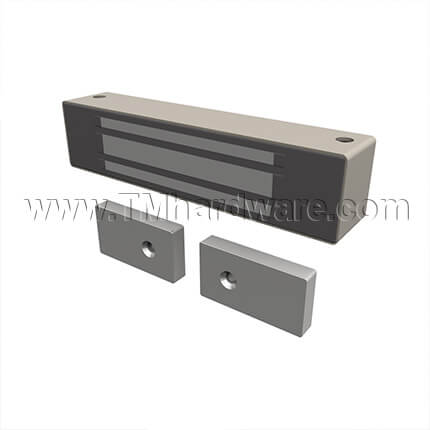

Securitron M32-SS Magnetic Cabinet lock, Magnalock

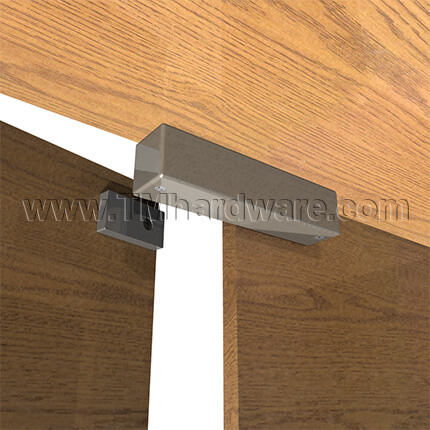

The M32-SS strike plates each provide 300 lbs of holding force, for a total of 600 lbs. Perfect for securing double-door indoor/outdoor storage applications, retail cases, and large two-door cabinets with out-swinging doors that share a central latching point.
PRICED PER UNIT
The M32-SS strike plates each provide 300 lbs of holding force, for a total of 600 lbs. Perfect for securing double-door indoor/outdoor storage applications, retail cases, and large two-door cabinets with out-swinging doors that share a central latching point.
Features:
- Split Strike
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with a minimum of tools
- Fully sealed electronics - tamper and weather-resistant
- Mounted using steel machine screws into blind finishing nuts
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening
- Ten feet [3.05m] of jacketed, stranded conductor cable
Optional Feature:
- BondSTAT - delivers unparalleled peace of mind by detecting an armature plate and notifying access control and/or alarm systems that a door is properly secured.
Specifications:
- Holding Force: Static Strength 600 lbs (300 lbs per strike)
- Operating Temperature: 40° to 140°F [-40° to 60°C] , Indoor or Outdoor use
- Electrical:
- Dual voltage 12/24 VDC
- 300 mA at 12 VDC / 150 mA at 24 VDC
PRICED PER UNIT
This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
