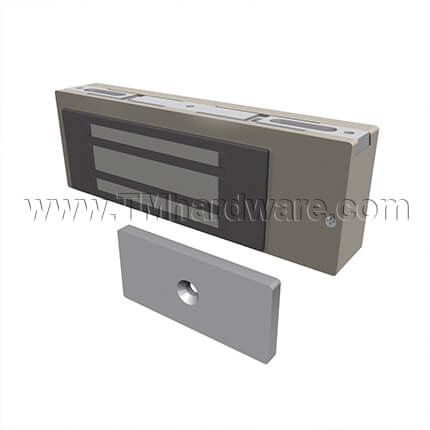

Securitron M68 Magnalock, Electronic Lock

For traffic control in high-use zones inside of guarded or closely observed perimeters, the M68 electromagnetic lock is perfect. Solutions are provided for interior spaces such as corridors, closets, and rooms where dependability, great durability, and minimal maintenance are necessary. Fast, precise installation is made possible by the wiring chamber and bracket mounting.

Features:

• PoE friendly
• Automatic dual-voltage (VDC) —no field adjustment required

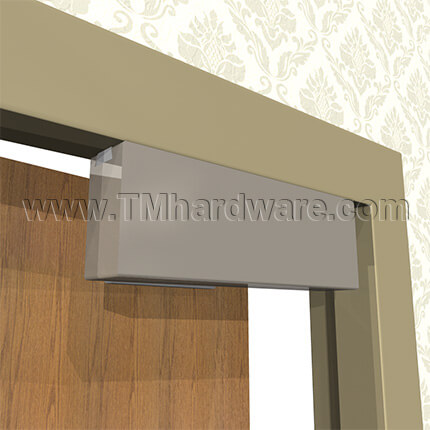

• Bracket mounting provides the easiest install for out-swing doors
• Rust resistant—all ferrous metal surfaces plated for durability
• Instant release circuit —no residual magnetism
• Internal wire access chamber
• Noise suppression with included MOV
• Ultra-secure collapsing blind nuts mount to door frame for strength and reliability
• Strong hold and low maintenance

Optional Features:

• DPS (D) - provides a signal to an access control system indicating whether the door is open or closed
• LED (L) - The LED provides a local visual indicator of the status of the lock.
• SenSTAT (S) - detects the presence of an armature plate and notifies the access control or alarm system that the magnet is engaged
• Anti-Tamper Sensor (T) - indicates if the wire access chamber cover has been tampered with or removed

Specifications:

• Holding Force:  1,200 lbs [544kg]
• Operating Temperature:  32˚ to 110˚F [0˚ to 43˚C] , Indoor use only
• Electrical:
  • 250 mA at 12 VDC
  • 125 mA at 24 VDC

Certifications:

• UL 10C Listed
• CAN4-S104, CAN/ULC-S533 Listed
• ANSI/UL 294 Listed
• CSA-C22.2 No.205 Listed
• ANSI/BHMA A156.23, Grade 2; E18501-1000
• CSFM—California State Fire Marshal Approved
• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

PRICED PER UNIT

This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

Click here to view our Securitron M38 Magnalock, Electronic Lock
