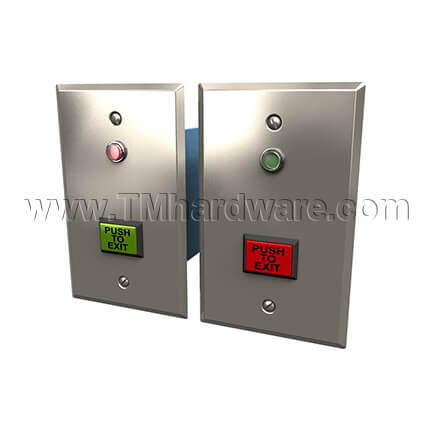

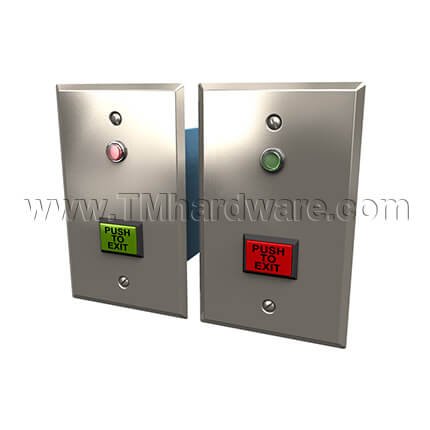

Securitron PB3 Series Rectangular Push Button

Securitron PB3 Series Push Button, Illuminated, Momentary, DPST/DPDT, Single Gang, Green/Red Lens
Securitron

The PB3 Series Rectangular Push Button from Securitron, a High-quality Push Button, is available in green and red colored lenses. Any lock can be released using this set of push buttons, either by themselves or in combination with door closers and other gear.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCPB3
    • Market price:$128.00
      • save 35%
    • Starting price: Price: $83.20 per item


    The PB3 Series Rectangular Push Button from Securitron, a High-quality Push Button, is available in green and red colored lenses. Any lock can be released using this set of push buttons, either by themselves or in combination with door closers and other gear.

    Features:

    • Includes interchangeable green and red lenses
    • Field convertible from DPST to DPDT
    • Field selectable 12/24VDC

    Electrical:

    • 29 mA at 12 VDC
    • 40 mA at 24 VDC
    • 3 A-rated contacts

    Models :

    • PB3 - 3/4” Rectangle Button, Illuminated, Momentary, DPST/ DPDT, Single Gang, Green/Red Lens
    • PB3A - 3/4” Rectangle Button, Illuminated, Alternate, DPST/DPDT, Single Gang, Green/Red Lens
    • PB3AN - 3/4” Rectangle Button, Illuminated, Alternate, DPST/DPDT, Narrow, Green/Red Lens
    • PB3E - 3/4” Rectangle Button, Non-Illuminated, Momentary, DPST/DPDT, Single Gang, Green/Red Lens
    • PB3EA 3/4” Rectangle Button, Non-Illuminated, Alternate, DPST/ DPDT, Single Gang, Green/Red Lens
    • PB3EAN - 3/4” Rectangle Button, Non-Illuminated, Alternate, DPST/DPDT, Narrow, Green/Red Lens
    • PB3EAR - 3/4” Rectangle Button, Non-Illuminated, Remote, Alternate, DPST/DPDT, Surface Mount Green/Red Lens
    • PB3EN - 3/4” Rectangle Button, Non-Illuminated, Momentary, DPST/DPDT, Narrow, Green/Red Lens
    • PB3ER - 3/4” Rectangle Button, Non-Illuminated, Remote, Momentary, DPST/DPDT, Surface Mount Green/Red Lens

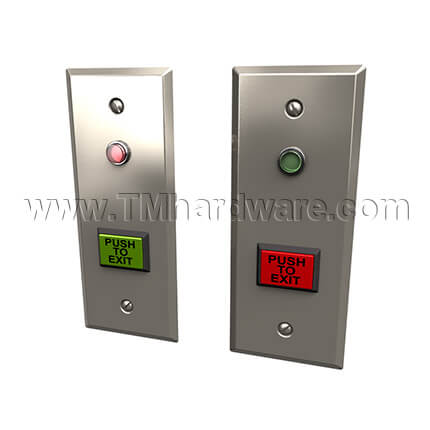

    • PB3N - 3/4” Rectangle Button, Illuminated, Momentary, DPST/DPDT, Narrow, Green/Red Lens

    Optional Accessories:

    PRICED PER UNIT

    This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securitron PB2 Large Square Push Button

      • SKU
        SCPB3
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Models
      (PB3) Single Gang, Illuminated, Momentary, (PB3A) Single Gang, Illuminated, Alternate, (PB3EAN) Narrow Stile, Illuminated, Alternate, (PB3E) Single Gang, Non-Illuminated, Momentary, (PB3EA)Single Gang, Non-Illuminated, Alternate, (PB3EAN) Narrow Stile, Non-Illuminated, Alternate, (PB3EAR) Remote, Surface Mount, Non-Illuminated, Alternate, (PB3EN) Narrow Stile, Non-Illuminated, Momentary, (PB3ER)Remote, Surface Mount, Non-Illuminated, Momentary, (PB3N) Narrow Stile, Illuminated, Momentary
    • Finishes
      • Finish
        Stainless Steel, Satin (US32D)
    • Compliance Details
      • Warranty
        Lifetime Limited Warranty
