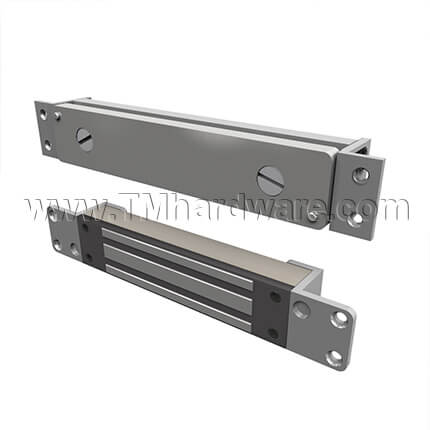

Securitron SAM2-24 Mini Shear Aligning Magnalock, Electronic Lock

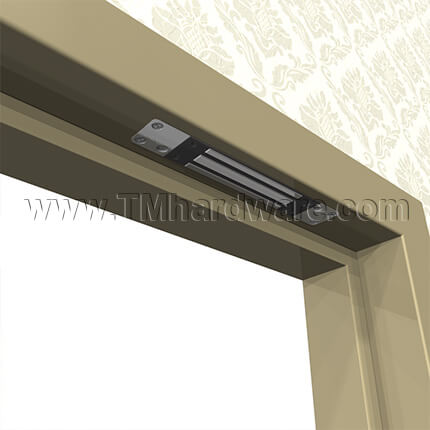

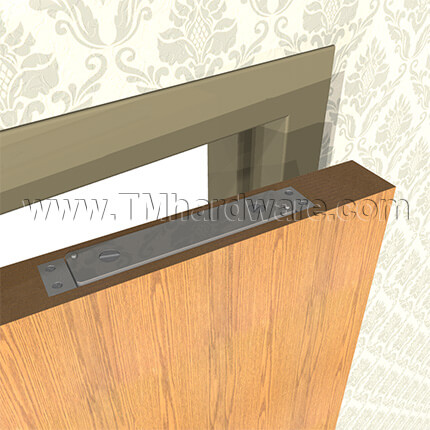

SAM2-24 Shear Aligning Magnalock, a small and multipurpose device that can support 600 lbs. of holding force to sliding or swinging doors. It is perfect for controlling traffic and securing smaller applications, such as sliding closet doors, atriums, and more. This unit mounts fully concealed at any point on wood, steel, aluminum, or Herculite doors, whether at the threshold, header, or door edge.
PRICED PER UNIT
SAM2-24 Shear Aligning Magnalock, a small and multipurpose device that can support 600 lbs. of holding force to sliding or swinging doors. It is perfect for controlling traffic and securing smaller applications, such as sliding closet doors, atriums, and more. This unit mounts fully concealed at any point on wood, steel, aluminum, or Herculite doors, whether at the threshold, header, or door edge.
Features:
- Efficient, low-power usage
- Fully sealed for weather-resistant operations
- Compact design fits tight spaces
- Rust resistant—all ferrous metal surfaces plated for durability
- Instant release circuit —no residual magnetism
- Noise suppression with included MOV
- Recessed for aesthetically appealing finish
- 6 ft [1.83m] of jacketed, stranded conductor cable
- Direct mount in door frame for strength and reliability
Optional Features:
- Bond Sensor (C) - sends a signal that indicates that a magnetic bond exists between the armature and the face of the electromagnetic lock
Specifications:
- Holding Force: 600 lbs [272kg]
- Operating Temperature: -40 to +140F [-40 to +60C], Indoor or Outdoor use
- Electrical:
- 84 mA at 24 VDC
Certifications:
- UL 10C Listed
- CAN4-S104, CAN/ ULC-S533 Listed
- ANSI/UL 294 Listed
- ANSI/BHMA A156.23, Grade 3; E08571- 1000, E08581-500 Compliant
- CSFM—California State Fire Marshal Approved
PRICED PER UNIT
This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
Click here to view our Securitron SAM Shear Aligning Magnalock, Electronic Lock
-
QuickShipNo
-
ManufacturerSecuritron
-
FeatureStandard, Bond Sensor
- About this Product
-
Collection / SeriesMagnalock
-
- Specifications
-
GradeGrade 3
-
- Finishes
-
FinishSatin Stainless Steel (630)
-
- Compliance Details
-
Compliance DetailsUL 10C Listed, CAN4-S104, CAN/ ULC-S533 Listed, CSFM—California State Fire Marshal Approved
-
ANSI DesignationANSI/UL 294 Listed, ANSI/BHMA A156.23, Grade 3; E08571- 1000, E08581-500 Compliant
-
WarrantyLifetime Limited Warranty
-
