Securitron WSS-WSD Wave Sense Switch

Securitron WSS-WSD Wave Sense Switch, Single Gang
Securitron

WSS-WSD Wave Sense Switch is a fresh approach to contactless, hands-free switch activation using motion-detecting technology. Instead of using a push plate or push button, this can be used for request to leave (REX), activation, or on/off switching to activate a range of access control devices.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCWSSWSD1
    • Market price:$452.00
      • save 40%
    • Starting price: Price: $271.20 per item


    WSS-WSD Wave Sense Switch is a fresh approach to contactless, hands-free switch activation using motion-detecting technology. Instead of using a push plate or push button, this can be used for request to leave (REX), activation, or on/off switching to activate a range of access control devices.

    Features:

    • Active microwave motion sensing using Doppler radar that is more reliable than infrared sensors
    • Adjustable sensing zone from 4" to 24" (102mm to 610mm) helps screen out incidental traffic
    • FCC-certified for use in general and medical environments
    • Touchless activation for hands-free operation reduces transmission of germs
    • Pulse mode to initiate action or toggle mode to provide on/off switch
    • Mounting ring included or install in standard plastic or metal gang box
    • Water-resistant foam gasket included

    Dimensions :

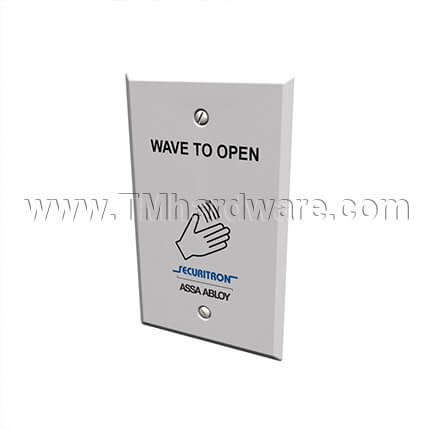

    • Single gang faceplate:  4-1/2" x 2-3/4" [114mm x 70mm]

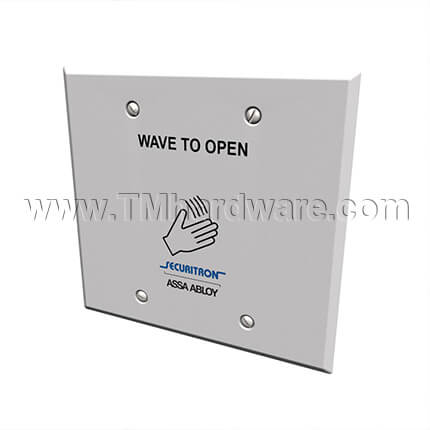

    • Double gang faceplate:  4-1/2" x 4-1/2" [114mm x 114mm]

    Specifications:

    • Operating Temperature: -4˚ to 131˚ F [-20˚ to 55˚ C] , Indoor use
    • Electrical: Self-sensing 12 or 24 V DC or AC input (± 10%)
    • Maximum Power Consumption:
      • Less than 1.5 W (125 mA at 12 VDC) 1 A SPDT contact can be operated in toggle or pulse mode
      • Pulse output: 0.5 seconds

    Optional Accessory:

    • Mounting Box - allows the switch to be mounted in outdoor locations not directly exposed to rain or snow  (Only available for Single Gang variant)

    Certifications:

    • Electromagnetic compatibility to 2004/108/EC
    • FCC: G9B-MS08 and IC: 4680A-MS08

    PRICED PER UNIT

    This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securitron KP1 Tubular Keyswitch

      • SKU
        SCWSSWSD1
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Size:
      Single Gang, Double Gang
    • About this Product
      • Collection / Series
        Push Buttons & Egress Devices
    • Finishes
      • Finish
        White
    • Compliance Details
      • Compliance Details
        Electromagnetic compatibility to 2004/108/EC, FCC: G9B-MS08 and IC: 4680A-MS08
      • Warranty
        Lifetime Limited Warranty
