VR814-NL-V Vandal Resistant Trim, Non-handed, horizontal keyway, Without Black Grip

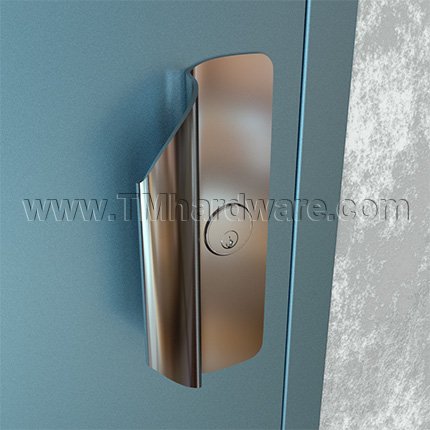

Application of Ives VR814-NL-V Vandal Resistant Trim
Ives

Ives VR814-NL-V Vandal Resistant Trim supports the locking hardware on your door, while also eliminating the chance that a vandal breaks in using the crevice of the door. This trim is 0.120" thick, for use with Falcon 25-R or 25-V Series  exit devices. It is non handed and has a horizontal keyway. To purchase with black trim please view our Ives VR810-NL-V Vandal Resistant Trim.

PRICED PER PIECE


See tabs below for additional information
    • SKU
      VSVR814-NL-V
    • Market price:$478.91
      • save 30%
    • Price: $335.23
    In stock (1000 items available)

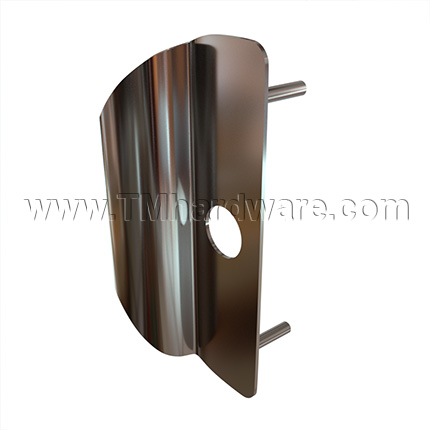

    Ives VR814-NL-V Vandal Resistant Trim is 0.120" thick Stainless Steel, non handed and has a horizontal keyway.

     Design:

    • Closed pull design eliminates a hooking point to be able to forcibly pull a secured door open.
    • Ligature resistant design.
    • Through bolts direct to the exit device
    • Night latch operation
    • 1-5/8" cylinder hole cut-out, on door, located at the horizontal center line 3/16" off of vertical centerline between mounting studs towards the strike edge of the door.
    • Designed for use with 1-1/4" cylinders.
    • Supplied with protective cylinder collar. Collar spins to reduce damage from pipe wrench or other tool.
    • Stainless Steel for corrosion resistance.
    • Recommended for external mounting.

    Mounting:

    • For Door thickness 1-3/4-2-1/4". 10-24 X 1" and 10-24 X 1-1/2" mounting screw size.
    • Can be mounted directly to Falcon 24-R or 25-V exit devices.
    • Standard mounting - Welded studs fasten with pan head screws on opposite side of door.

    Additional Options Available Through Our Office:

    • Optional through bolt mounting - bolt through face of trim into device for added security.
    • Custom finishes are available.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in workmanship and materials.

    Click To View Our Full Warranty Policy.

    Click To View Our Ives VR900 RHR Vandal Resistant Trim

      • SKU
        VSVR814-NL-V
    • Handing
      Non Handed
    • Operation
      Night Latch
    • Use with
      Falcon 25-R or 25-V
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      VR814-NL-V
    • Dimensions
      • Product Width
        5-1/4"
      • Product Height
        11"
      • For Door Thickness
        1-3/4-2-1/4"
      • Through Bolt Pattern (4 holes)
        1-3/4" wide x 7-3/4" high
      • Clearance Grip to Door
        1-1/2"
      • Projection
        1-7/8"
    • Finishes
      • Finish
        Satin Stainless Steel (US32D)
    • Compliance Details
      • Warranty
        1 Year Limited Warranty
