VR904LLP LH Vandal Resistant Trim, For use with most mortise locks on in swinging doors, Without Black Grip

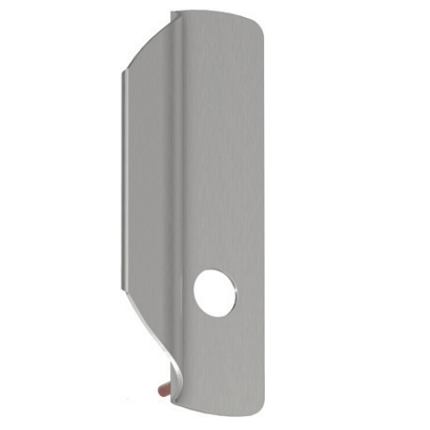

Actual Image of Ives VR904LLP LH Vandal Resistant Trim
Ives

Ives VR904LLP LH Vandal Resistant Trim supports the locking hardware on your door, while also eliminating the chance that a vandal breaks in using the crevice of the door. This trim is 0.120" thick, for use with most mortise locks on in swinging doors and has a LLP- Less Lock Protector. To purchase With the black grip, please view our Ives VR900LLP LH Vandal Resistant Trim.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      VSVR904LLP LH
    • Market price:$478.91
      • save 30%
    • Starting price: Price: $335.23 per item


    Ives VR904LLP LH Vandal Resistant Trim is 0.120" thick, for use with most mortise locks on in swinging doors.

     Design:

    • Closed pull design eliminates a hooking point to be able to forcibly pull a secured door open.
    • Ligature resistant design.
    • Handed design allows trim to be positioned to coordinate with the centerline of inside hardware.
    • 1-1/2" cylinder hole cut-out on door, located 2-7/32 above Horizontal center line.
    • Designed for use with 1-1/4" cylinders.
    • Supplied with protective cylinder collar. Collar spins to reduce damage from pipe wrench or other tool.
    • Stainless Steel for corrosion resistance.
    • Recommended for external applications.

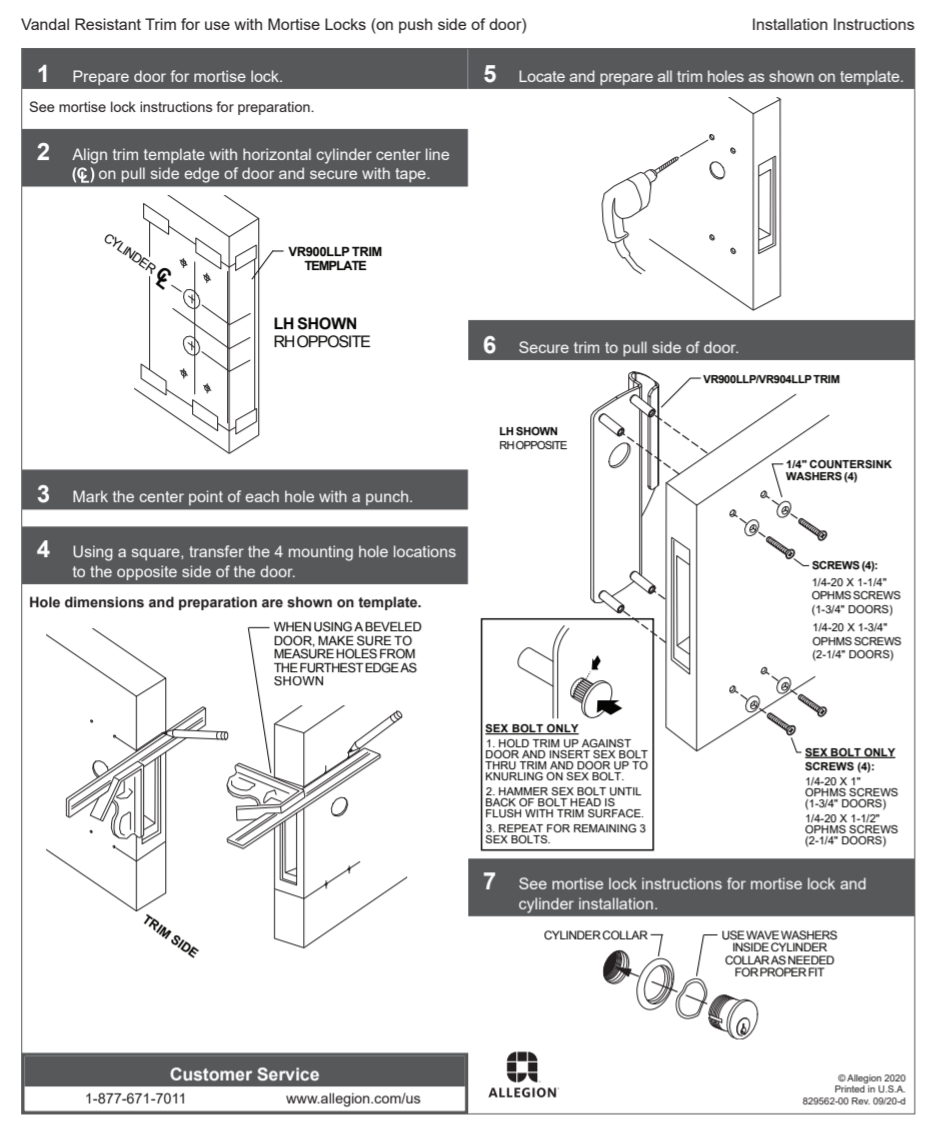

    Mounting:

    • For door thickness 1-3/4-2-1/4". 1/4-20 X 1-1/4" and 1/4-20 X 1-3/4" mounting screws with countersunk washers.
    • Can be mounted directly to Schlage L9000 Series.
    • Standard mounting - Welded studs fasten with pan head screws on opposite side of door.

    Additional Options Available Through Our Office:

    • Optional through bolt mounting - bolt through face of trim into device for added security.
    • Additional cut-outs and locations are available.
    • Custom finishes are available.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in workmanship and materials.

    Click To View Our Full Warranty Policy.

    Click To View Our Ives VR904LLP RH Vandal Resistant Trim

      • SKU
        VSVR904LLP LH
    • Handing
      Left Handed
    • Operation
      Pull Operation
    • Use with
      Most mortise locks on inswinging doors
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      VR904LLP LH
    • Dimensions
      • Product Width
        5-1/4"
      • Product Height
        11"
      • For Door Thickness
        1-3/4-2-1/4", 1/4-20 X 1-1/4", 1/4-20 X 1-3/4"
    • Finishes
      • Finish
        Satin Stainless Steel (US32D)
    • Compliance Details
      • Warranty
        1 Year Limited Warranty
