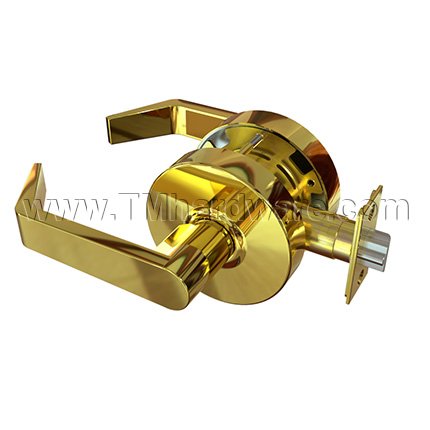

Yale Augusta Door Handle, Grade 2 - Custom Options

Yale Augusta Door Handle, Grade 2 - Custom Options
Accentra

Yale Augusta Lever Door Handle is the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economic price. The 4604LN is certified to ANSI/BHMA Grade 2 standards and is UL-Fire Rated.

Choose door functions and finishes from dropdown menu. Functions explained in detailed description below.

PRICED PER UNIT

See tabs below for additional information
    • Weight
      5 lbs
    • SKU
      YL-AU-4600
    Call for price!
    845-388-1300

    Yale Door Handles Lock are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economic price.

    See Yale 4600 Series Grade 2 Locks Full Catalog.

    Function:


    Benefits:

    • Versatile: Field reversible and other product options available to suit all applications.
    • Economical: Priced affordably for projects of all budgets
    • Secure: Quality security from a trusted brand for over 170 years.
    • Strong and Reliable: ANSI / BHMA Grade 2 certified for long life

    Features:

    • Handing: Field reversible for ease of ordering and installation
    • Trims: selection of trims available, select above
    • Finish: selection of finishes available, select above
    • ADA Compliance: for ease of accessibility
    • Keyway: Selection of keyways available, select above

    Cylinders:

    • Conventional core is provided with a cylinder (select keyway from above).
    • SFIC Core is provided without a core, to be purchased separately.
    • Cylinder Finish: Cylinders are supplied in US3 Polished Brass and US26D Satin Chrome Finish only.

    See SPECIFICATION tab for additional information.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For a non-keyed latching lock, see our Yale 4602LN Privacy Lock.

      • Weight
        5 lbs
      • SKU
        YL-AU-4600
    • QuickShip
      No
    • Manufacturer
      Accentra
    • MPN
      AU-4604LN; PB-4604LN; MO-4604LN; TB-4604LN; B-AU-4604LN; B-MO-4604LN; B-PB-4604LN;
    • About this Product
      • Lever Material
        Cast Zinc
      • Rose Material
        Wrought Brass
      • Mechanism Material
        Heavy-gauge steel, zinc plated, dichromated
      • Collection / Series
        Yale 4600 Series
      • Lock Type
        Lever
      • Lever / Knob Style
        Reflection Lever (TB)
    • Specifications
      • Cylinder Type
        6 Pin Cylinder
      • Backset
        2-3/4" Backset, 2-3/8" Backset
      • Latch Throw
        1/2" Latch
      • Strike
        ANSI 4-7/8" x 1-1/4" x 1-1/4" Lip to Center
      • Faceplate
        Square Corners
      • Keyway
        Schlage "C" Type, Yale PARA Keyway, SFIC IC Prep (Less Cylinder)
      • Keying Type
        Conventional Core, Interchangeable Core
      • Door Thickness
        1-3/8" - 1-3/4" Thick, Adjustable
      • Keys Provided
        2 Nickel, Silver Keys Provided
      • Handing
        Reversible
      • Function
        Passage, Privacy, Entry Lock (Push Button), Storeroom, Entry Lock (Turn Button), Classroom Security, Communicating Passage, Single Dummy
      • Mount Type
        Cylindrical
      • Grade
        Grade 2
      • Cross Bore
        2-1/8" Cross Bore
      • Locking Mechanism
        Push Button, Thumbturn, Key
    • Finishes
      • Finish
        Bright brass (us3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze, Equiv. (10BE), Polished Chrome (US26), Satin Chrome (US26D), Black Suede Powder Coat
    • Compliance Details
      • Compliance Details
        ADA Compliant, BHMA Certified, Windstorm Resistant, UL/cUL - listed for 3 hour fire doors
      • ANSI Designation
        A156.115 Door Prep
      • Warranty
        3 Year Warranty

    Product Templates for Yale 4601LN Passage Lock

    Click to Print 4601LN Installation Guide
