Zero #545 Utility Threshold, 5" Aluminum, Bronze or Anodized, .25" Height
Need it now? Stock sizes are available to ship within 1 business day! Click here for our Barzen, 5" Wide Flat Door Threshold.

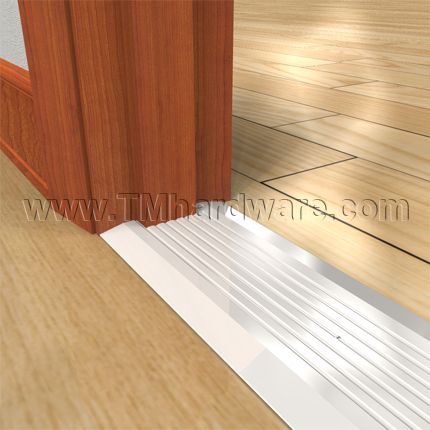

Zero #545 Features a high quality low profile door threshold  to finish off doorways and create smooth transitions between floor surfaces. It is wheelchair compatible and fire rated. It is built from heavy duty material for long life performance. Comes many finishes and is custom cut to size. Optional epoxy non-slip filling and full body strength available, see details below.
PRICED PER FOOT.
Note: This item currently has an extended lead time.Â

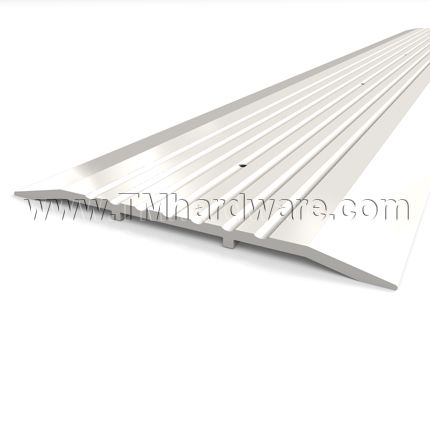

This Threshold is a high quality low profile door threshold to finish off doorways and create smooth transitions between floor surfaces. It is wheelchair compatible and fire rated. It is built from heavy duty material for long life performance.
Finishes: Available in many different finishes; choose from dropdown below. (Oil Rubbed Bronze can also be purchased through our office, for an additional 49% of standard bronze pricing)
A Note on Finishes: Aluminum Mill Finish is plain smooth metal as it comes from the mill, without a coating. Bronze is a mill finish, sometimes referred to as Architectural Bronze. It is a solid bronze piece, which increases longevity and aesthetics, thus the large difference in price. It gets darker in color in time when exposed to the environment. Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance. All Zero's anodized products are anodized to 204 (dipped four times)!
Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, an Expansion Anchor is recommended.
Drilling:Â This product is drilled at standard factory locations.
Additional Options - Select from options above:

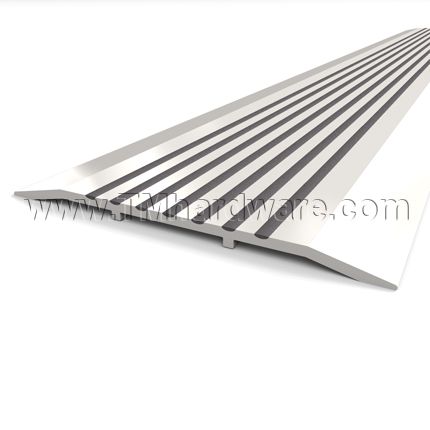

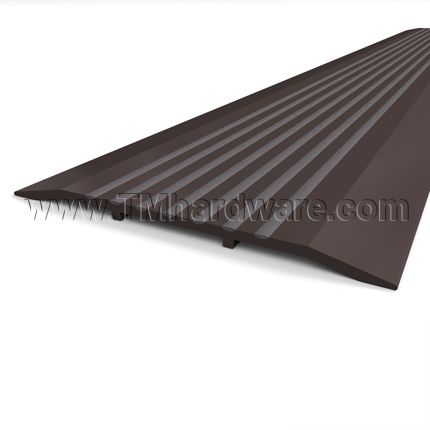

- Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.

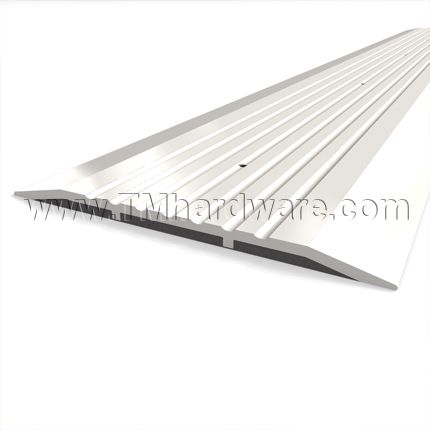

- Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.
-
QuickShipNo
-
ManufacturerZero International
-
MPN545

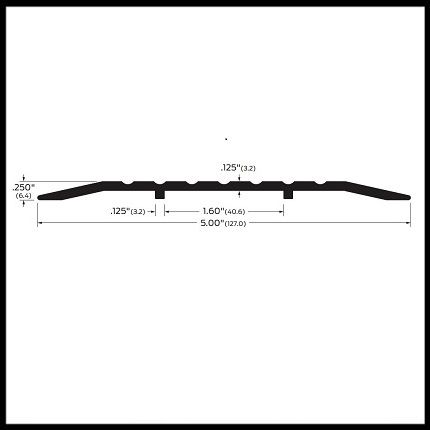

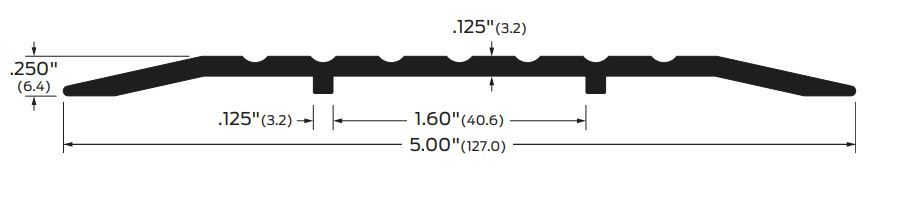

- Dimensions
-
Overall Height.25" Height
-
Overall Width5" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.375" Height
-
Thickness.125" Thick
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeFlat Utility Threshold
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Black Anodized Aluminum (315), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum, Bronze Mill Finish (Brass), Flat Black (US19)
-

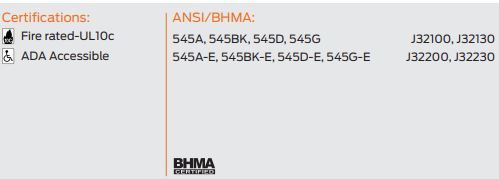

- Compliance Details
-
Compliance DetailsBHMA Certified, Fire Rated, ADA Compliant
-
ANSI DesignationJ32100, J32130, J32200, J32230
-
