Zero #77 Bulkhead Threshold System, Adjustable Width Aluminum with Gasket Door Stop

Zero #77 Bulkhead Threshold System, Adjustable Width Aluminum with Gasket Door Stop
Zero International

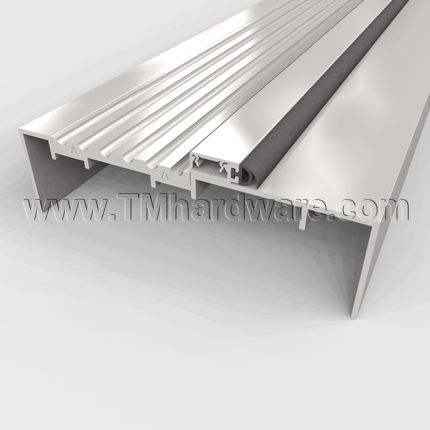

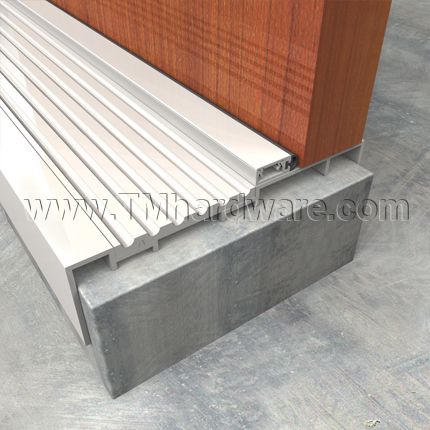

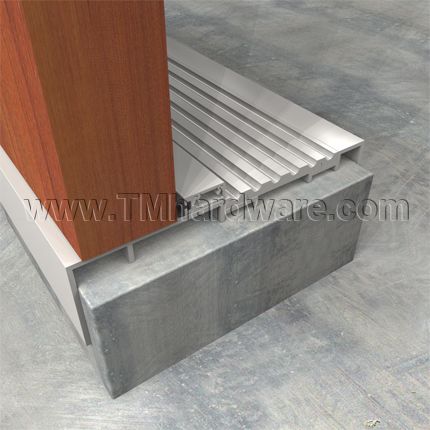

This Zero #77 custom bulkhead threshold provides superior traffic protection for both edges of an elevated platform or step of at least 2” in height and whose width falls anywhere from 5.75” - 16”. This four part system is made of durable aluminum, and all parts are notched to allow for quick and easy installation. Length is custom cut to size.

PRICED PER FOOT

How to determine plate width: First, measure the total width of the bulkhead platform.

  • If using .75"W #Z106 Bulkhead Rest subtract 3.75” from total
  • If using 3.0"W #Z105 Bulkhead Rest subtract 6" from total
See tabs below for additional information
    • SKU
      ZR106A-672A-475AA-105A
    • Market price:$55.16
      • save 5%
    • Starting price: Price: $52.40 per foot

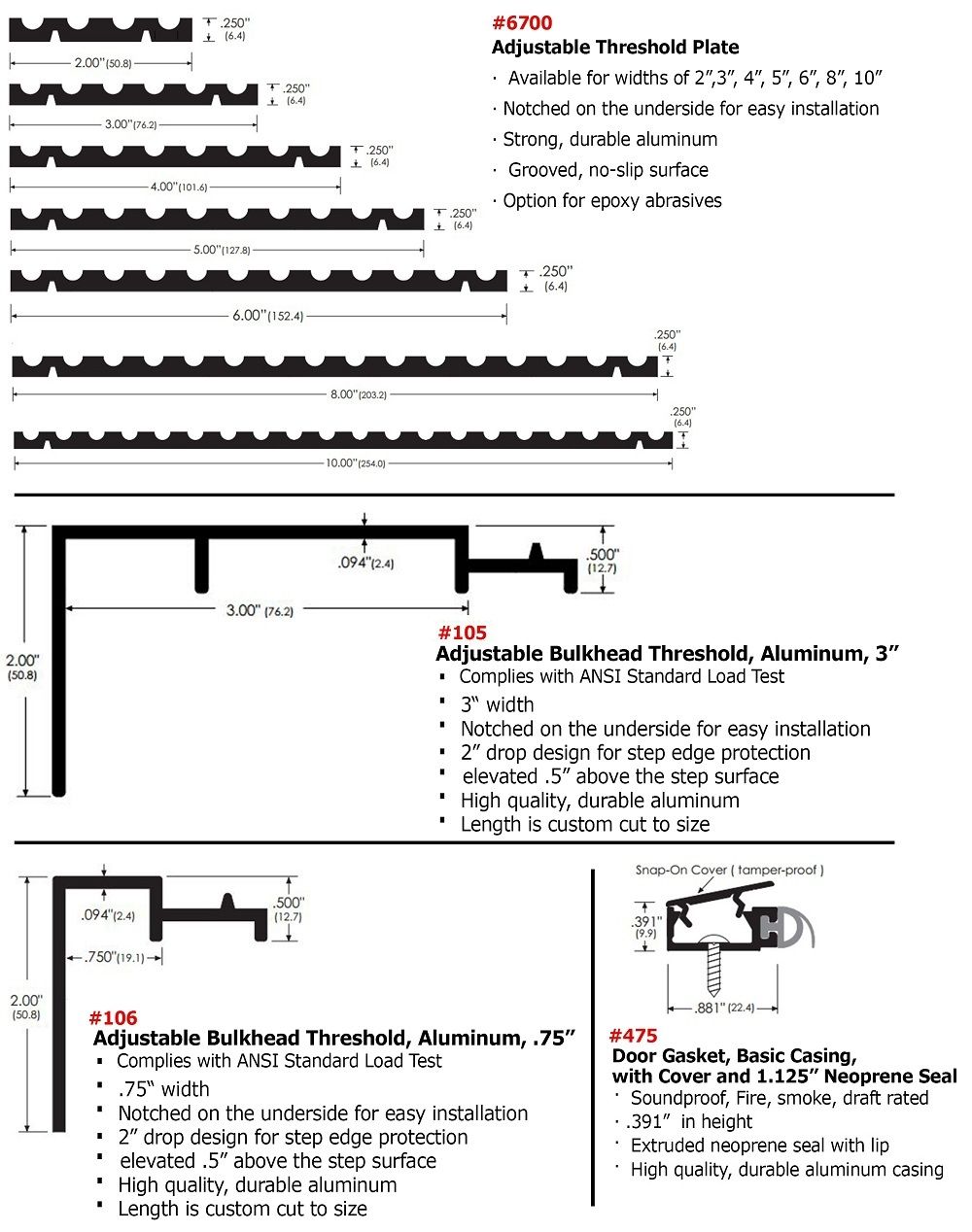

    This four part custom bulkhead threshold is comprised of four components. Components can also be purchased separately by selecting links:

    • #Z105 or #Z106: 3" or .75" W Bulkhead Rest
    • #6700: 2" - 10" W Adjustable Threshold Plate
    • #Z475: Adjustable Stop for Threshold
    • #105: 3" W Bulkhead Rest

    Bulkehad Dimensions:

    • Height: Minimum 2"
    • Widths: 5.75" - 16" can be purchased through our site. Widths up to 22" are available through our office
    • Length: Custom cut up to 104". Larger lengths are available through our office.
    • Door Clearance: Requires minimum .5" clearance from floor surface.

    Door Stop: Door stop is fitted with an enhanced Solid Neoprene seal which seal the gap at the door bottom. The extruded finger design compensates for slight door misalignment due to improper installation or natural warping.

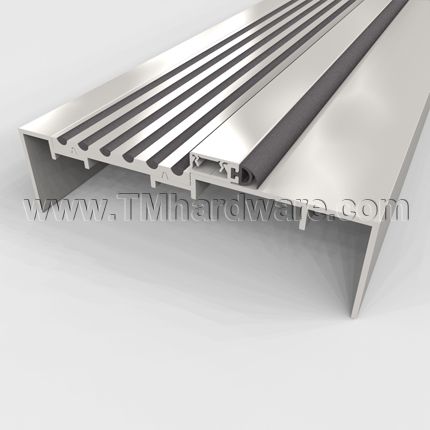

    Floor Plate: Floor plate is made of heavy duty aluminum with a grooved, non-slip surface. For additional traction it can be purchased with epoxy abrasives bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.

    Installation: All components are grooved for quick, no welding required installation. Installation screws are provided.

    Drilling: Components are supplied undrilled, unless otherwise specified and template with holes location is provided. Please CTNC us or call us at 845-388-1200 to request custom drilling.

    How to Order: Measure the total width of the platform. Subtract 3.75" from that amount to determine the Threshold Plate size required. Select all required options from dropdown options above. Still need assistance? Our customer service reps can help at 845-388-1300.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See the product specs and individual specs tabs for exact product measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy.

    Interested in seeing our other custom width thresholds? Check out the Adjustable Width Threshold System.

      • SKU
        ZR106A-672A-475AA-105A
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      Series77
    • Options
      Standard Aluminum, Aluminum with Epoxy
    • Dimensions
      • Overall Height
        2" Height
      • Overall Width
        5.75" - 16" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .5" Height
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Custom Threshold
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Threshold is not provided drilled
    • Compliance Details
      • Warranty
        1 Year Limited Warranty

    Click to Print Product Specs

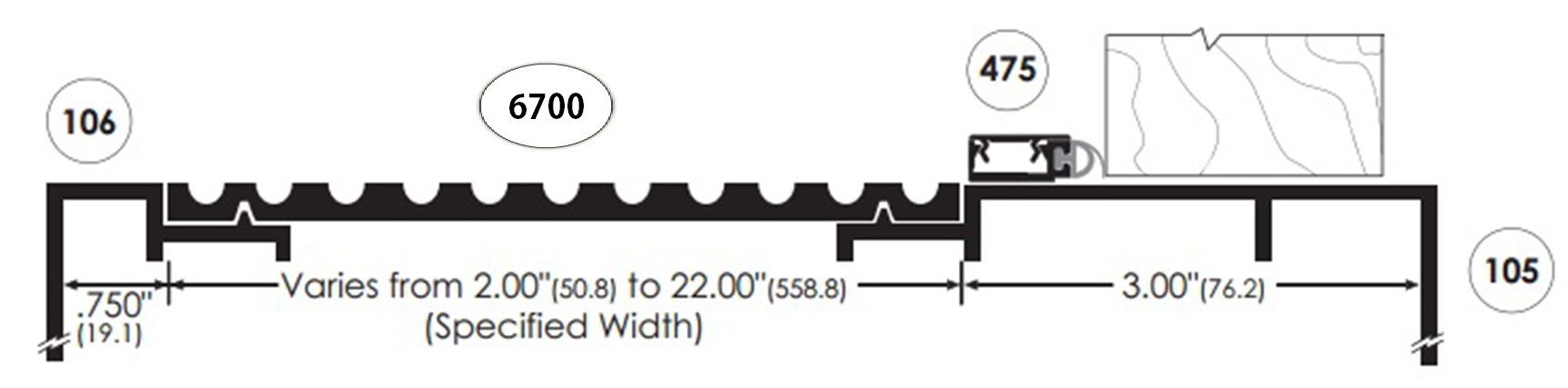

    Bulkhead Threshold with .75" Bulkhead Rest #Z106:

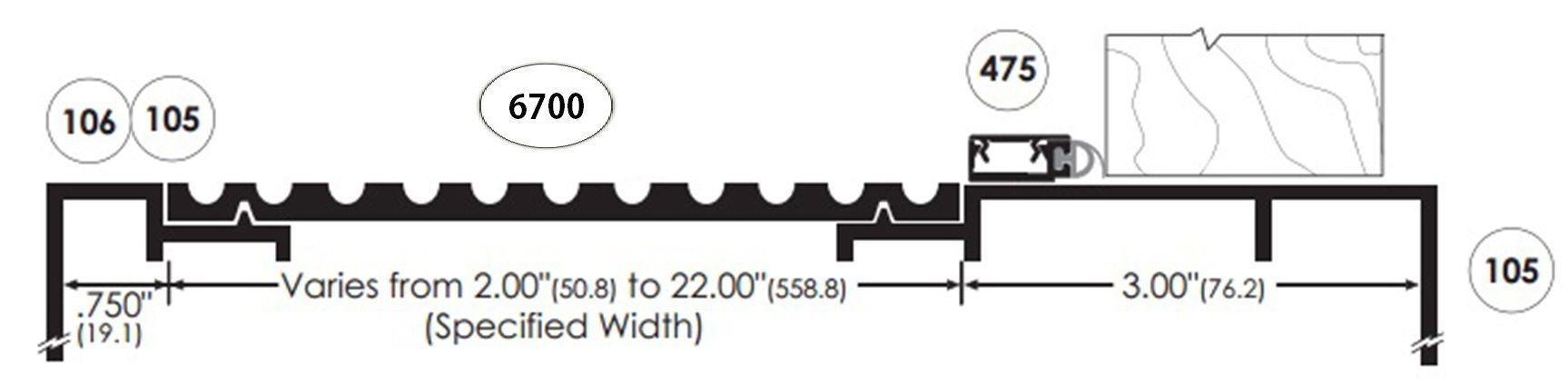

    Bulkhead Threshold with 3.0" Bulkhead Rest #Z105:
