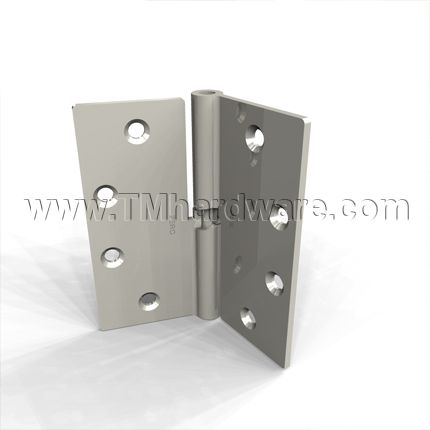

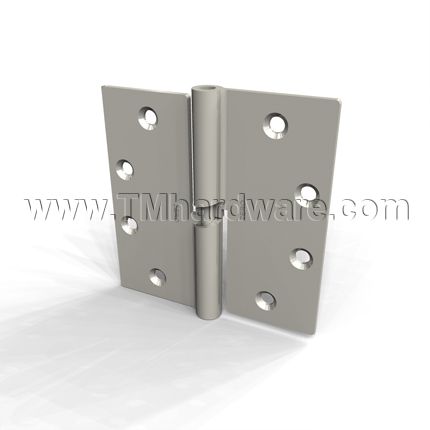

Zero #Z953 Cam Lift Mortised Hinge, 300 lb.

This Zero #Z953 Cam-Lift Mortised Hinge is ideal the door drags, or to create a properly sealed door. It is designed for use with EMI/RFI and sound-insulating doors utilizing acoustical seals. It is available for right and left handed doors and can support up to 300 lbs.

PRICED PER HINGE

Not sure what handing is required for your door? See How to Determine Door Swing / Handing.

See tabs below for additional information

Quantity

Add to compare

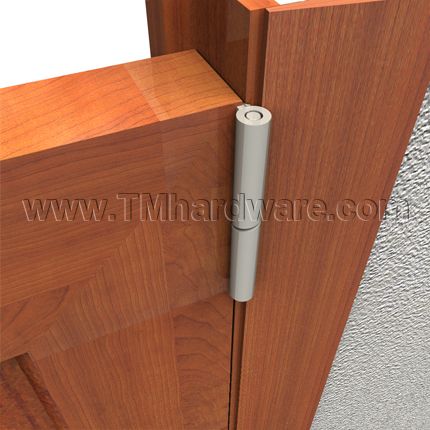

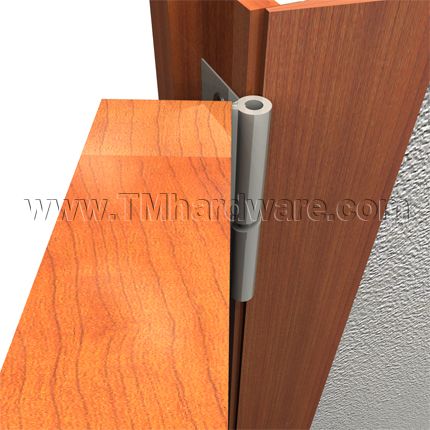

Cam Lift Hinges greatly improve sealing characteristics along the door perimeter by raising and lowering the door with the swing. When closed, the door drops to create a tight seal. This Stainless Steel Cam Hinge is compatible for use with EMI/RFI and sound insulating doors utilizing acoustical seals and for doors weighing up to 300 lbs.

The CAM LIFT Hinge is available for right or left-hand swinging doors. CAM LIFT Hinges will not bind door closures when doors are hung within accepted industry standards (Tested with LCN 4041 Series original).

Product Specifications: (see Product Specs for more information):

Base Metal: 1020 Stainless Steel, precision investment cast
Finish: 629 (US32)

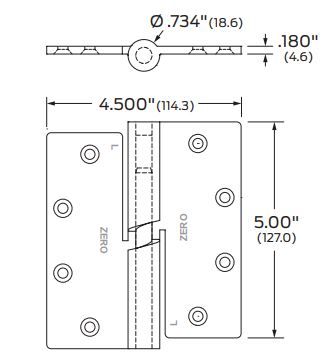

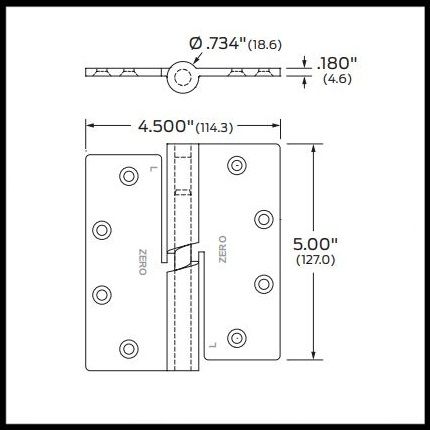

Size: 4.5" (114.3mm) X 5.0" (127mm) X .180" (4.6mm)
Gauge: .180" (4.6mm)
Swing: Maximum lift 1/4" over 180°.
Door Clearance: Minimum clearance at head of frame is 3/16". For doors greater than 1-3/4" clearance is 1/4”
Pin: Hardened tool steel. Hardened & chrome finished to Rockwell C 60 to meet ASME/ANSI B 18.3 specs.
Screw Size: 12-24 x 3/4” for metal doors (Installation screws provided)
Door Weight: Up to 300 lb. with 1-1/2 pairs (3 Hinges)

Not sure what handing is required for your door? See How to Determine Door Swing / Handing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click to View our Full Warranty Policy.

Click here if you are looking for spring hinges.
