Door Louver 600A1, Inverted V-Blades, Self Attaching Frame, 1-3/4" Doors, up to 2' x 6'-8"

Door Louver 600A1, Inverted V-Blades, Self Attaching Frame, 1-3/4" Doors, up to 2' x 6'-8"
Activar Air Louvers

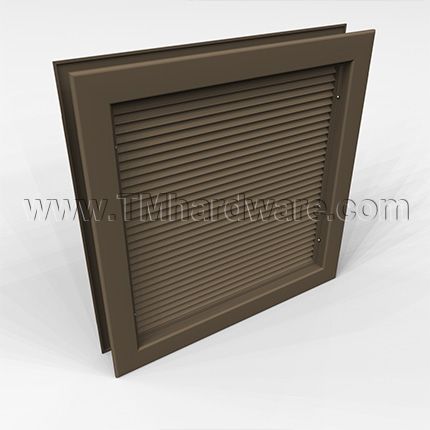

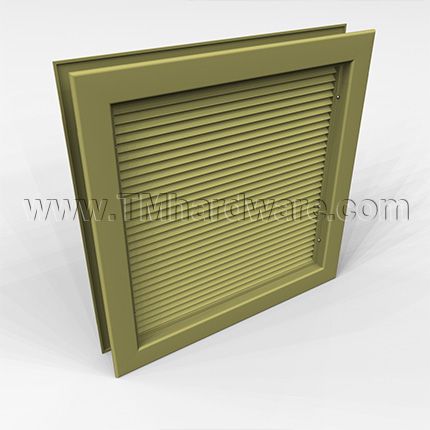

Air Louver 600A1 has Inverted "V" blades and a free flow area of 60%. It is a self-attaching frame and is compatible with doors that are 1-3/4” thick. Recomended for Schools and Institutional Buildings. Available in many different finishes and sizes.

PRICED PER PIECE - See product details and specs in tabs below

See tabs below for additional information
    • SKU
      AC600A1 1212B
    • Market price:$187.00
      • save 20%
    • Starting price: Price: $149.60 per item

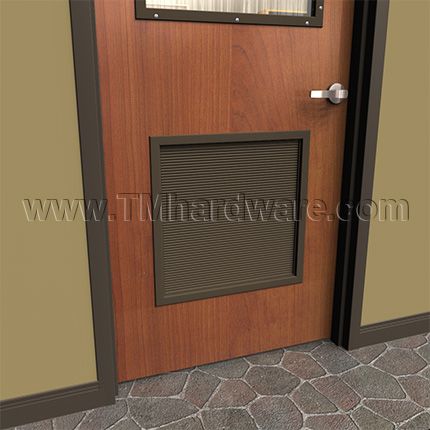

    Door Louvers provide ventilation and air flow while still maintaining the privacy of a closed door. This Activar Louver has inverted "V" blades and has a non-vision construction.

    Material: 20 gauge CRS frame and louvers

    Dimensions: Available in standard sizes through our site. Additional sizing can be purchased through our office.

    • Available widths: 6" - 36"
    • Available heights: 4" - 72"

    How to Order: Orders size is the Door Cut-out Dimensions. See Product Specs for details

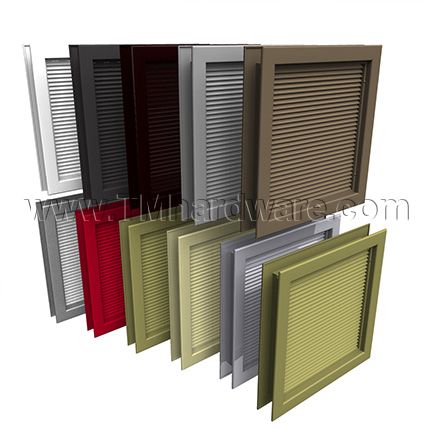

    Available Finishes: Available in all standard Powder Coat Finishes, see our Lites and Louvers Standard Finishes

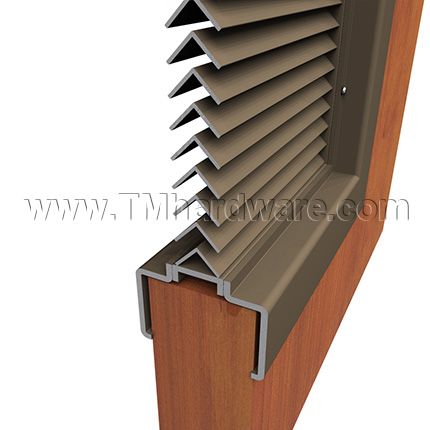

    Construction: Louvers - Inverted “V” blades with 1/2” blade spacing are attached by interlocking construction to a 1” deep, welded frame. Non-vision. 600A1 Frame - 1-1/4” trim, mitered and welded corners. Screws fasten through frame into louver core, leaving corridor side of frame free of fasteners.

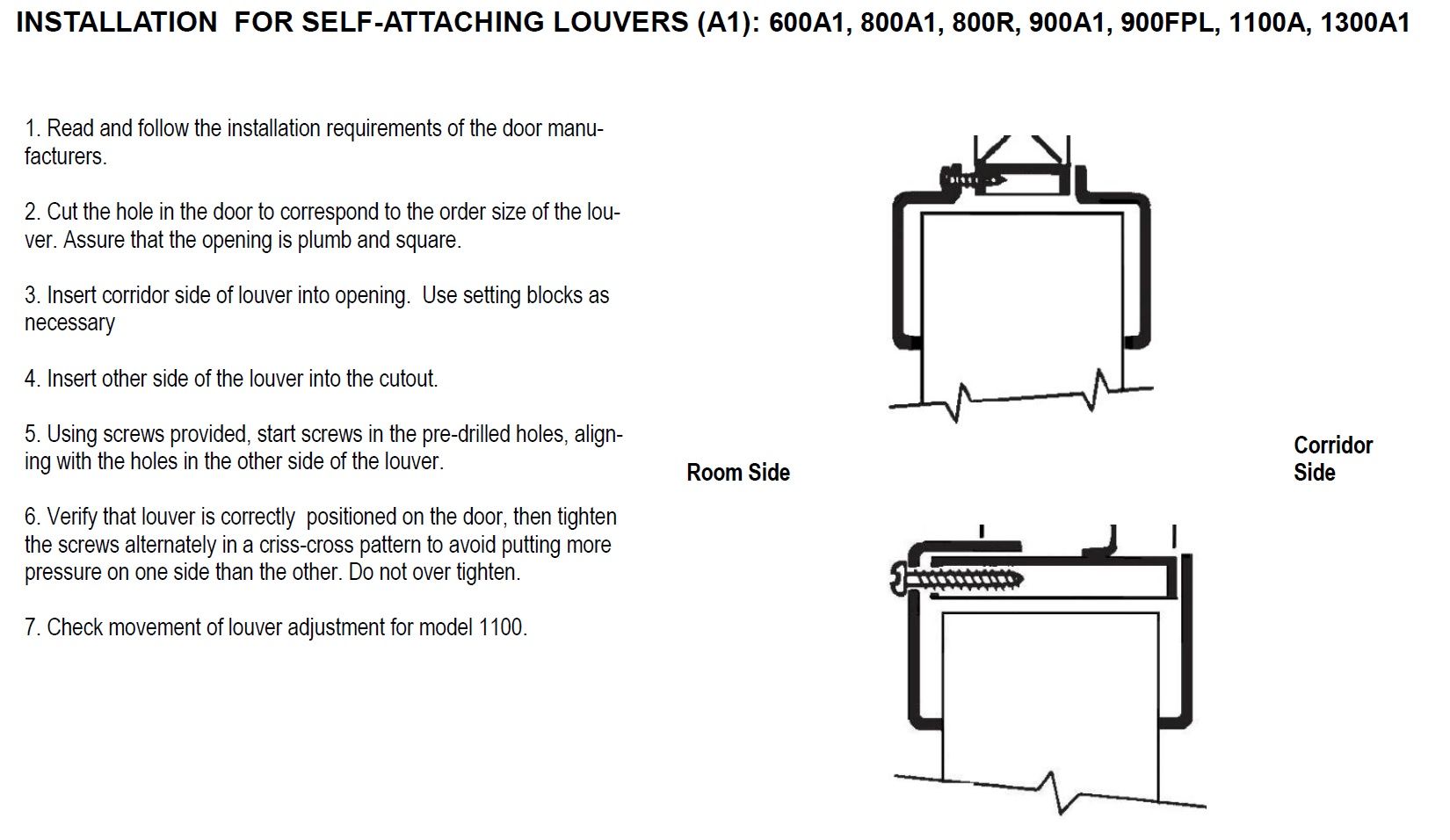

    Mounting Type: Self-attaching, vandalproof design; basic blade unit with flanged frame welded to face (corridor) side and separate removable flanged frame on opposite side.

    Door Type: For 1-3/4” Door

    Fasteners Included: Phillips head screws #8 x 3/4” to match finish

    Free Flow Area: 60% free area

    Additional Options: Custom options are available, please contact us for details and pricing

    • Optional Materials
      • Stainless steel, #4 finish - 20 gauge
      • 16 gauge CRS
      • Galvanneal sheet for exterior use and corrosion-resistance
      • Electro Galvanized for corrosion resistance & exterior use
    • Torx Fasteners
    • Optional Screens

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year gurantee against defects in materials and workmanship.
    Click here to view our Full Warranty Policy.

    Click to view our Door Louver 600A with inverted "V" Blades for Doors up to 1-3/4" thick

      • SKU
        AC600A1 1212B
    • QuickShip
      No
    • Manufacturer
      Activar Air Louvers
    • MPN
      600A1
    • Size (W" x H")
      12" W X 12" H, 18" W X 12" H, 18" W X 18" H, 18" W X 24" H, 24" W X 12" H, 24" W X 18" H, 24" W X 24" H, 24" W X 60" H, 24" W X 64" H
    • Finishes
      • Finish
        Mineral Bronze Powder Coat, Gray Powder Coat, Black Powder Coat, Flat Black (US19), White Powder Coat, SC Beige Powder Coat, Silver Powder Coat, Sand Powder Coat, AMS Beige Powder Coat, Red Powder Coat, Gray Hammertone

    Self-attaching, vandalproof design; basic blade unit with flanged frame welded to face (corridor) side and separate removable flanged frame on opposite side.

    Mounting Type for Door Louver 600A1
