Pemko #313DB Door Sweep, Mortised Aluminum Track with .75" EPDM Bulb Seal

Need it sooner? Select sizes and finishes are in stock, ready to ship within 1 business day! See our Barzen #3575 Mortised Door Seal - Quick Ship.

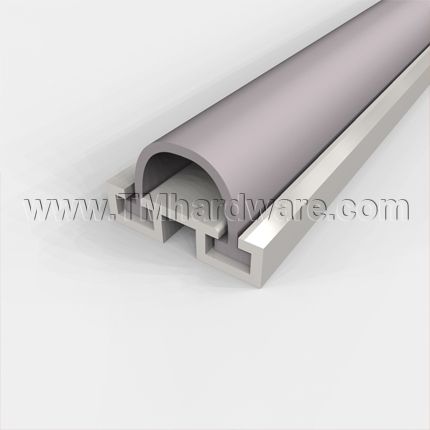

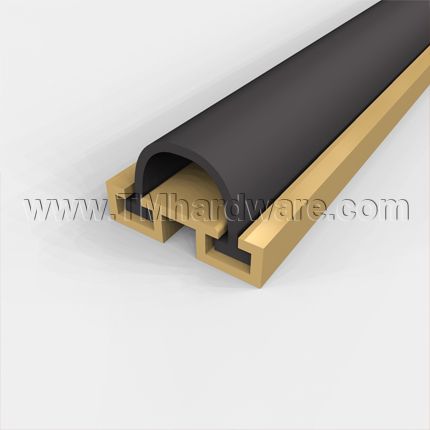

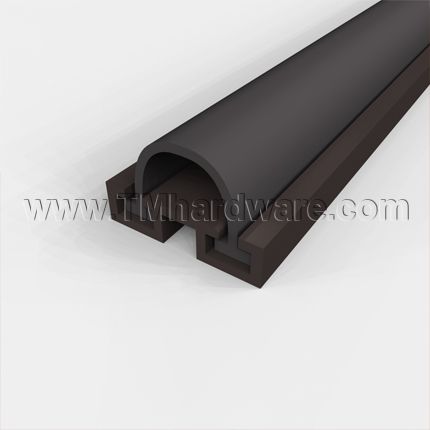

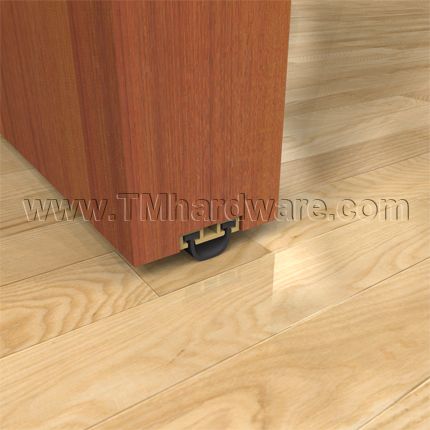

This Door Bottom Sweep is designed to be Mortised or Underside Mounted to wooden doors. It is comprised of an aluminum track which is fitted with a solid EPDM Bulb seal. Available in various finishes and is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information

Finish
Size

Quantity

Add to compare

This door bottom sweep is effective in creating a seal to prevent infiltration of drafts, moisture, dust, insects and light through the gap under doors.

Key Features Include:

Seal: This Door Bottom is fitted with an EPDM Bulb Seal. EPDM is comparable to Neoprene Rubber but is more environmentally friendly and has overall better performance than neoprene. EPDM has great soundproofing properties and is resistant to solvents.

The seal has great compression properties, is very flexible in all weather conditions and conforms to surface irregularities.

Casing: This Door Bottom Track is made of high quality Aluminum with Anodized Variations. It is designed for wooden doors.

It can be applied fully mortised or mounted to the underside of the door. If applied full mortised, it can fill gaps up to .25”. It requires a cutout in the door of .75" x .188". When applied underside mounted it can fill gaps up to .438”.

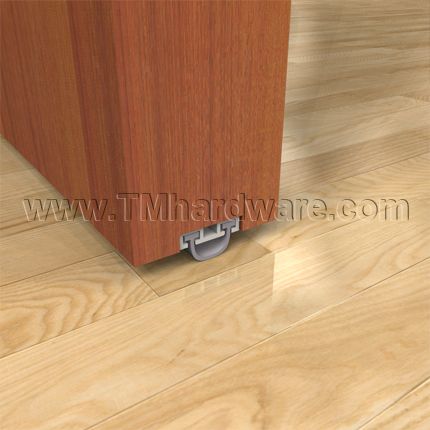

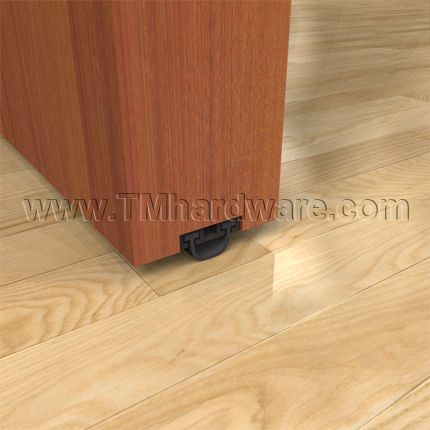

The fully mortised aspect of this door bottom is great for high end designer doors, luxury hotels and condo units that prefer their doors maintain their clean unobtrusive look.

Installation Guide and screws provided. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

This product can also be applied as a Meeting Stile, see our Mortised Track Meeting Stile with EPDM Seal.

- SKU
  PK313AN_DB
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
313
About this Product
- Door Shoe Retainer Material
  Aluminum
- Door Type
  Wooden Door
- Seal Type
  Neoprene Rubber Seal
- Mounting
  Fully Mortised, Underside Mount
Dimensions
- Seal Height
  1/4" Height
- Total Height
  7/16" Height
- Additional Dimensions
  Door seal is 3/4" thick
- Length
  Custom Cut to Size
Installation
- Drill Holes
  Drill holes are provided
Finishes
- Finish

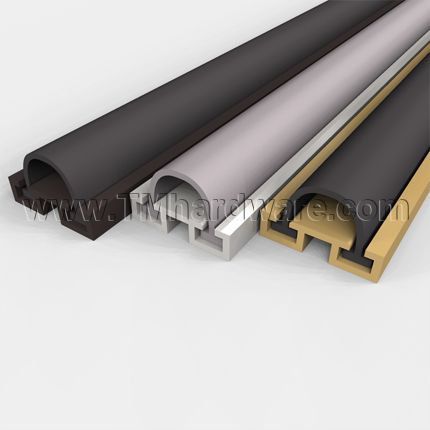

  Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
Compliance Details
- Compliance Details
  BHMA Certified, GreenGuard Gold Certified
- ANSI Designation
  R3G416
- Warranty
  5 Year Limited Warranty

Click to Print

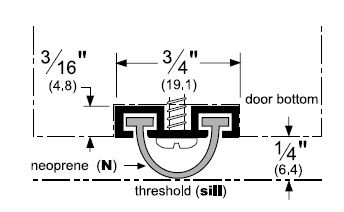

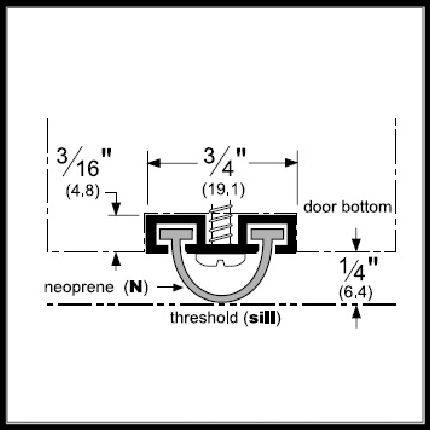

P313DB Product Specs:

Click to Print

P313DB Installation Guide:

Finishes Comply with the Following ANSI / BHMA Codes:

Aluminum Mill Finish - US27 / 719
Dark Bronze Anodized Aluminum - US10B / 710
Gold Anodized Aluminum - US4 / 688
