Pemko #313 Meeting Stile, Mortised Aluminum with EPDM Bulb Seal

Need it sooner? Select sizes and finishes are in stock, ready to ship within 1 business day! See our Barzen #3575 Mortised Door Seal - Quick Ship.

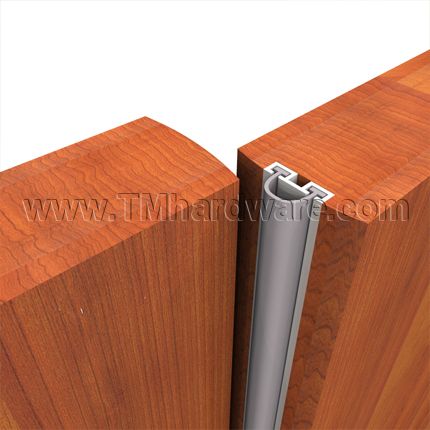

This meeting stile is designed to be applied to a set of double active doors. It is comprised of an aluminum track which is fitted with a solid EPDM Bulb seal and can be applied full mortised or surface mounted. Available in various finishes and is custom cut to size.

PRICED PER FOOT.

Reminder: If needed for both doors, select 'Quantity 2' or as required.

See tabs below for additional information

Finish
Size

Quantity

Add to compare

This meeting stile is effective in creating a seal to prevent infiltration of drafts, moisture, dust, insects and light. It is comprised of an aluminum track which is fitted with a solid EPDM Bulb seal and can be applied full mortised or surface mounted.

Seal: This Meeting Stile is fitted with an EPDM Bulb Seal. EPDM is comparable to Neoprene Rubber but is more environmentally friendly and has overall better performance than neoprene. EPDM has great soundproofing properties and is resistant to solvents.

The seal compresses against the opposite door and provides a proper seal. It is very flexible in all weather conditions and conforms to surface irregularities.

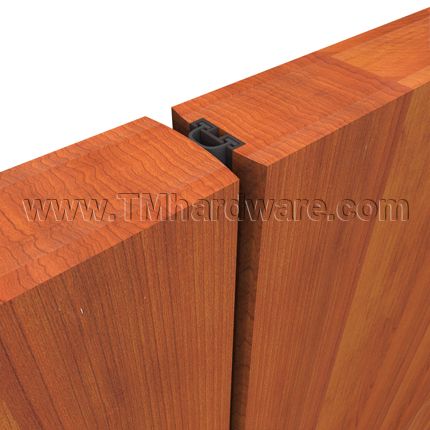

It can be applied fully mortised or surface mounted to the edge of the door. If applied full mortised, it can fill gaps up to .25”. When applied surface mounted it can fill gaps up to .438”. Note, this model is not compatible on beveled edge pair of doors.

The fully mortised aspect of this meeting stile is great for high end designer doors, luxury hotels and condo units that prefer their doors maintain their clean unobtrusive look.

Installation Guide and screws provided. Screws are colored to coordinate with casing.

Reminder, if being purchased for both doors, select 'Quantity 2' or as needed.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

This product can also be applied as a door bottom, see our Mortised Track Door Sweep with EPDM Seal.

- SKU
  PK313AN
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
313
About This Product
- Retainer Material
  Aluminum
- Seal Type
  EPDM
- Door Type
  Double Active Doors
- Mounting
  Fully Mortised, Surface Mounted
Dimensions
- Total Height
  3/4"
- Width
  7/16"
- Size (Feet)
  Custom Cut to Size
Finishes
- Finish
  Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
Compliance Details
- Compliance Details
  BHMA Certified
- Warranty
  5 Year Limited Warranty

Click to Print

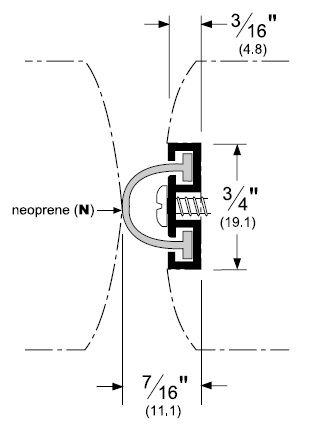

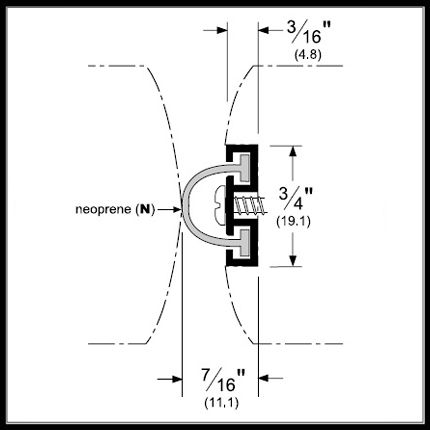

P313 Product Specs:

Click to Print

P313 Installation Guide:

Finishes Comply with the Following ANSI / BHMA Codes:

Aluminum Mill Finish - US27 / 719
Dark Bronze Anodized Aluminum - US10B / 710
Gold Anodized Aluminum - US4 / 688
