Hager 1255 SET, Full Mortised, 2 Spring, 1 Anti-Friction Bearing Hinge, Steel, 115 LB Doors, 4.5" x 4.5"

Hager 1255, Full Mortised Hinge Set
Hager Companies

Hager Set 1255 is a Spring Hinge System comprised of two H1250 Single Acting Spring Hinges and one HAB700 Anti-Friction Bearing Hinge. See below for recommended door size and weight. Sized 4-1/2" x 4-1/2" with a choice of finishes.

PRICED PER SET - See full product details and specs in the tabs below



See tabs below for additional information
    • SKU
      HG1255-4.5x4.5-US26D
    • Market price:$210.47
      • save 50%
    • Starting price: Price: $105.24 per set

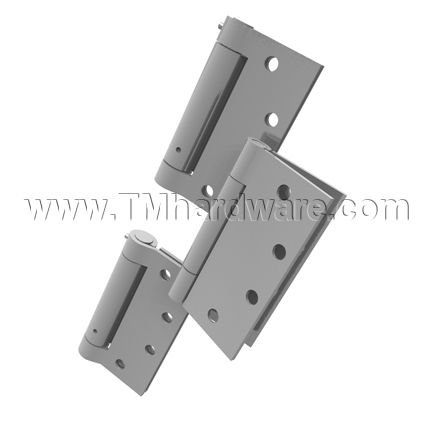

    Hager Set 1255 Includes:

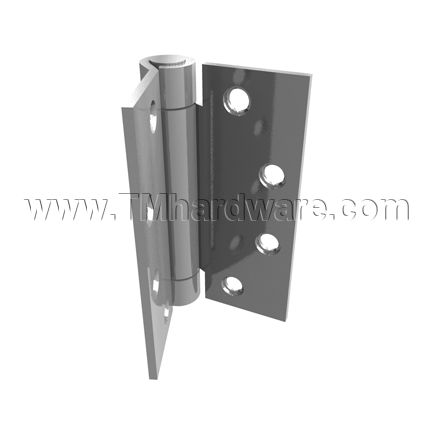

    1. Two H1250 Spring Hinges: Single acting spring hinges with square corners.

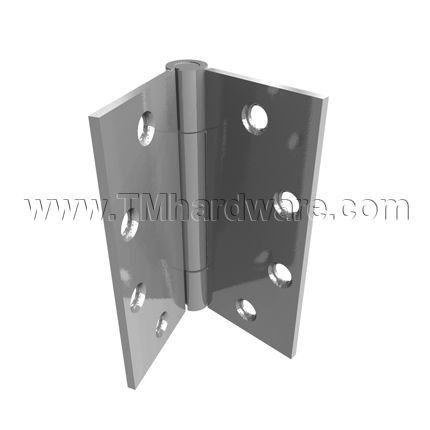

    2. One HAB700 Concealed Anti-Friction Bearing Hinge: This is a full mortised, architectural, three knuckle hinge with concealed anti-friction bearing feature.

    Door Size and Weight recommendations:

      Size                                                                         Recommended Max Door Wt (lbs)# of Spring Hinges

    # of Ball Bearing Hinges

      For use on 1-3/4" (45mm) door
      4-1/2" x 4-1/2"  115  2  1

    Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.

    Adjustable Tension: You could set the tension easily, as you need, using a tension bar and set pin (provided). See Installation Instructions for more information. Full spring tension may not be required.

    Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames or weather-stripping on doors may require additional spring hinges.

    Usage on Fire Rated Doors: NFPA 80 has restricted the use of architectural grade spring hinges to fire rated doors of a maximum size of 3'0" x 7'0". Hager spring hinges have been tested and labeled for up to a 4'0" x 8'0" door when a minimum of three springs are used.

    Priced per set

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product data tab for exact measurements.

    This product has a 3 year guarantee against defects in workmanship and materials.
     Click to view our Full Warranty Policy.

    Click here to view this Hager 1252- Single Acting Spring Hinge With Rounded Corners of 5/8" Radius in Steel.

      • SKU
        HG1255-4.5x4.5-US26D
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      1255
    • Product Design
      • Hinge Category
        Spring Full Mortised Hinge
      • Base Material
        Steel
      • Usage Level
        Standard Duty
      • Throw
        Standard Throw
      • Bearing Type
        Concealed Anti-Friction, Spring
      • Knuckles
        3 Knuckle Hinge, 5 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        8 Holes
    • Dimensions
      • Hinge Size
        4-1/2" x 4-1/2"
    • Installation
      • Door Type
        Wooden Door, Metal Door
      • Installation Screws
        Installation Screws Provided Accordingly:
        4-1/2" Hinge: All metal screws and half wood screws
        Additional screw packs can be provided if listed in order comments before completing purchase.
    • Finishes
      • Finish
        Prime Coat (USP), Polished Brass (US3), Satin Brass (US4), Oil Rubbed Bronze (US10B), Satin Chrome (US26D)
    • Compliance Details
      • Compliance Details
        UL Listed
      • ANSI Designation
        K81071F
      • Warranty
        3 Year Limited Warranty

    Hinge complies with ANSI K81071F

    All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard A156.18:

    • Prime Coat-USP
    • Bright Brass-US3
    • Satin Brass-US4
    • Antique Bronze Oiled-US10B
    • Satin Chromium Plated-US26D
