Pemko #300 Meeting Stile, Mortised Aluminum or Bronze with Self Adjusting Brush Seal, .375" Gaps

Pemko #300 Meeting Stile, Mortised Aluminum or Bronze with Self Adjusting Brush Seal, .375" Gaps
Pemko Manufacturing

This Meeting Stile is fitted with a self-adjusting pile brush insert which ensures a compressed seal at all times. It is designed to be mortised into one of two double active doors and can fill small gaps up to .375” between doors. Available in various finishes and is custom cut to size.

PRICED PER RANGE

How to Order: Selecting Finish and Exact Size will determine your total price.

See tabs below for additional information
    • SKU
      PK300CP80
    • Market price:$106.89
      • save 10%
    • Starting price: Price: $96.20 per item


    This Self-Adjusting Meeting Stile is designed to fill gaps between two double doors and prevent infiltration of light, dust, drafts and insects.  It is designed to be mortised into one of two double active doors and can fill small gaps up to .375” between doors.

    Seal: The meeting stile is fitted with a pile brush seal which can fill gaps up to .375” between doors. The bristles are flexible and conform well to surface irregularities.

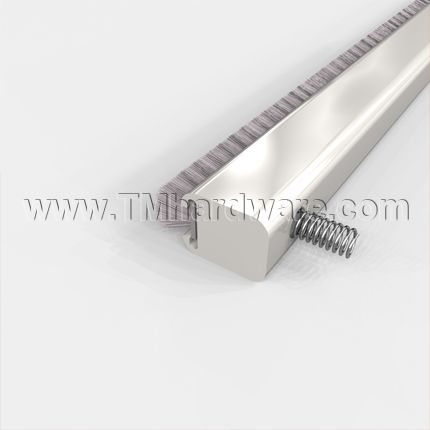

    Self-Adjusting Feature: The seal has a convenient Self-Adjusting feature. The seal automatically aligns itself when the door shifts or warps, as is common with wooden doors. The mounting screw passes through a tension spring and secures it to the door. This way the spring forces the brush against the opposite door for the best possible seal.

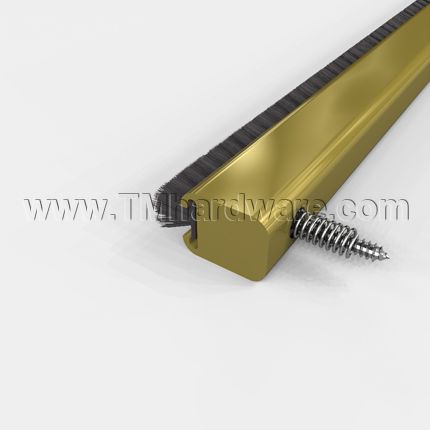

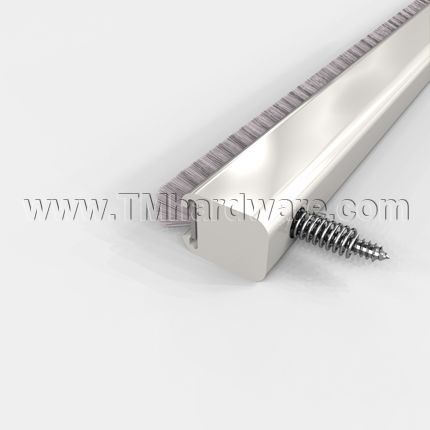

    Casing: This meeting is made of high quality Anodized Aluminum or Bronze Mill Finish. It is designed to be mortised applied to a pair of double active doors. Note, this model is not compatible on beveled edge pair of doors.

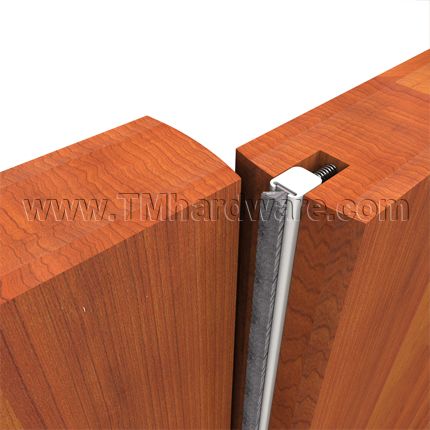

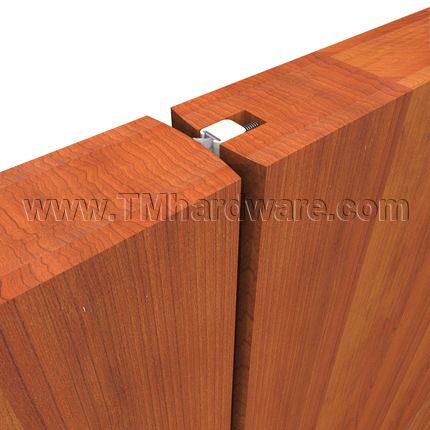

    Mortised Application: The mortised aspect of this Meeting Stile model is great for high end or designer doors, as it does not affect the appearance of the door. The door requires a mortised channel of .375".

    Installation Guide and screws provided. Screws are colored to coordinate with door hardware finish.

    Available Sizes: Custom sizes up to 104" can be purchased through our website. Additional sizes up to 144" can be purchased through our office. Please contact us or call us at 845-388-1300. Note, freight charges may apply to sizes above 104" so if possible, order two pieces and apply them butted one against the other in the field.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For a similar Self-Adjusting Meeting Stile, see our Self-Adjusting Neoprene Seal Meeting Stile.

      • SKU
        PK300CP80
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      300
    • About This Product
      • Retainer Material
        Aluminum, Bronze
      • Seal Type
        Pile Brush
      • Door Type
        Double Active Doors
      • Mounting
        Fully Mortised
    • Dimensions
      • Seal Height
        3/16"
      • Total Height
        5/16"
      • Width
        3/8"
    • Installation
      • Installation Screws
        Screws provided
    • Finishes
      • Finish

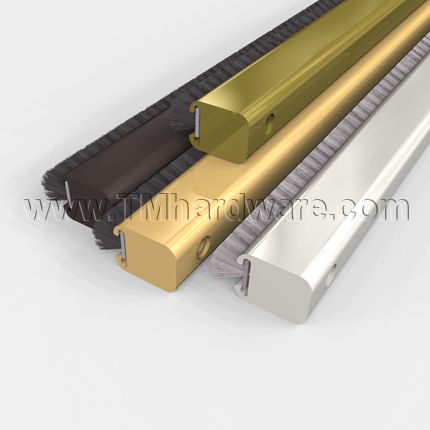

        Clear Anodized (us28), Dark Bronze Anodized (313), Bronze Mill Finish (Brass)
    • Compliance Details
      • Warranty
        5 Year Limited Warranty

    Click to Print



    P300 Product Specs:

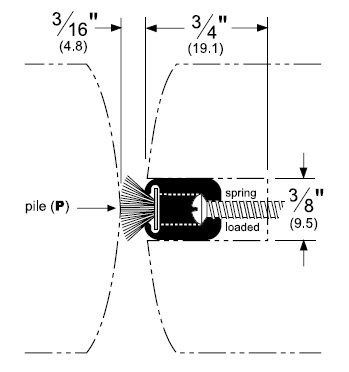

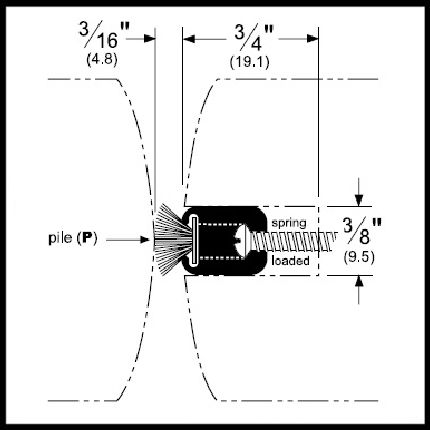

    Product Specs for Mortised Meeting Stile with Self-Adjusting Pile Brush Seal

    Click to Print



    P300 Installation Guide:

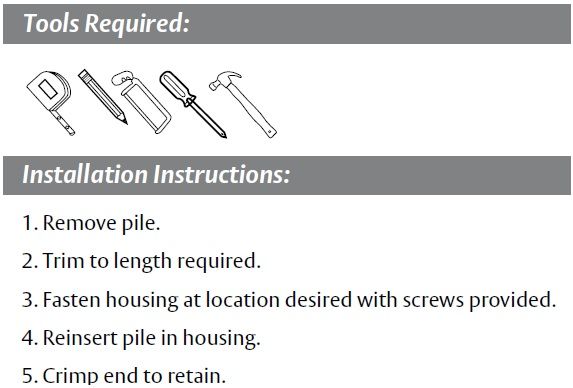

    Installation Guide for Pemko Mortised Meeting Stile

    Finishes Comply with the Following ANSI / BHMA Codes:

    • Clear Anodized Aluminum - US28 / 628
    • Bronze Mill Finish (Brass) - US4 / 720
    • Dark Bronze Anodized Aluminum - US10B / 710
    • Gold Anodized Aluminum - US4 / 68

    SHIPPING / PROCESSING TIME:


    This product ships directly from the manufacturer.
    Please allow 2 - 3 weeks to ship
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.00.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.
    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 35% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, re-saleable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
