Deadbolt, Hager 3200 Series Grade 2, Interchangeable Core Housing

Click here to view Hager 3200 Series from Hager Full Line Catalog.

ADA compliant thumbturn.

Anti-pry fire shield behind cylinder assembly adds security and eases installation.

Tapered design prevents wrenching.

1" throw bolt with hardened steel roller resists sawing.

Fixed conventional or small format interchangeable housing cylinder.

1" throwbolt with hardened steel roller resists sawing.

Cast brass collar with brass or stainless scalp.

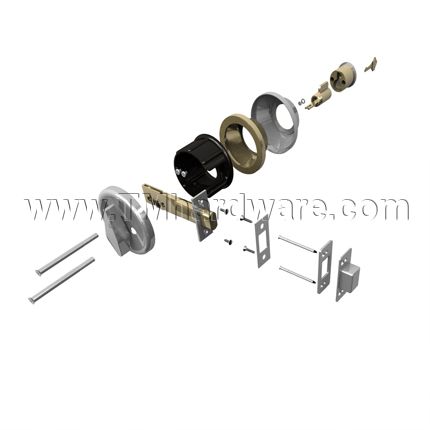

Deadlock Is Comprised of:

• Cylinder of your choice in exterior and interior finish of your choice
• Backset of 2-3/4"
• Two operating keys-keyed different
• Schlage C keyway
• Drilled 6-pin, keyed 5-pin cylinder
• Latchbolt
• Square corner strike with dustbox
• Door thickness of 1-3/4"

Please note that these are the standard options available. For all other orders, call us at 845-388-1300.

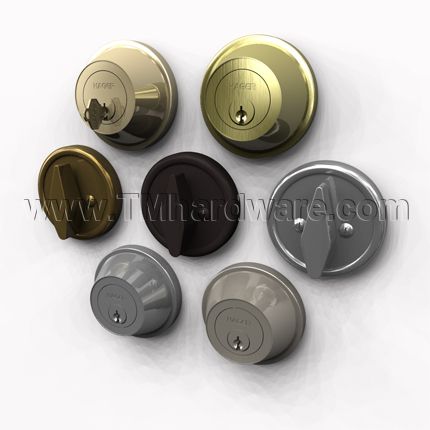

Available Finishes: Bright Brass; Satin Brass; Satin Bronze; Antique Bronze Oiled; Satin Chromium Plated; Bright Stainless Steel; Satin Stainless Steel (Finishes comply with BHMA codes. See Product Data Tab.)

Option of split finish available: Lock can be purchased with one finish for the outside section of the lock and another for the inside.
 If the interior finish is the same as the exterior, select "Same as Exterior Finish". Otherwise, select the finish of your choice.

Functions:

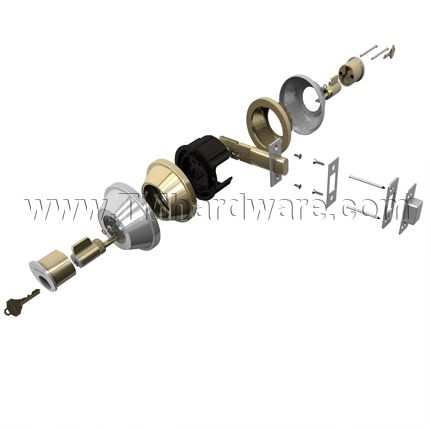

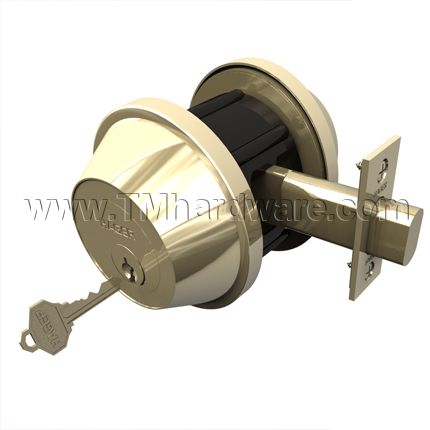

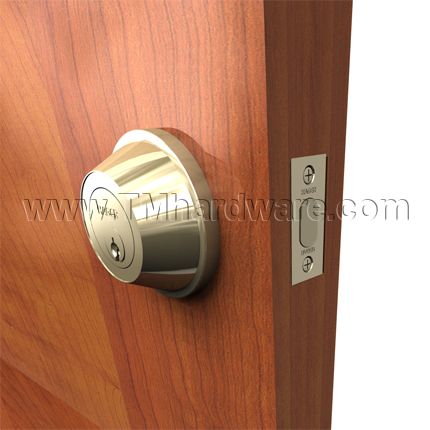

• 3214-Double Cylinder: Locked or unlocked with key from either side. Bolt automatically deadlocks when fully thrown.

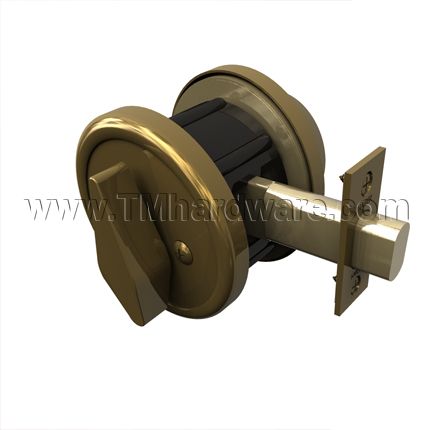

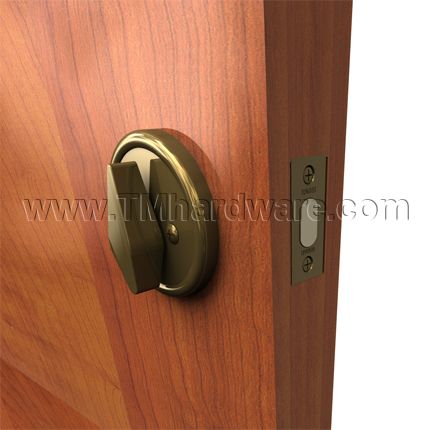

• 3215-Cylinder x Thumbturn: Locked or unlocked by key from outside, or thumbturn from inside. Bolt automatically deadlocks when fully thrown.

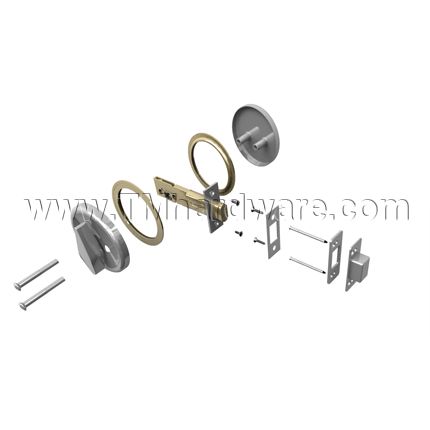

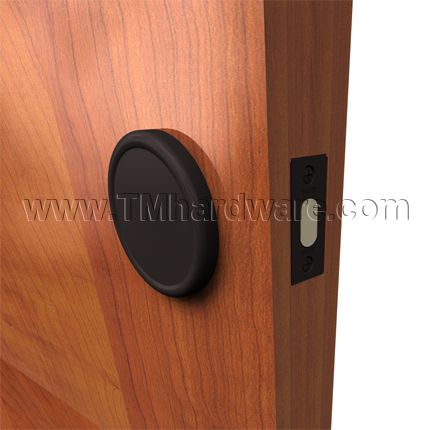

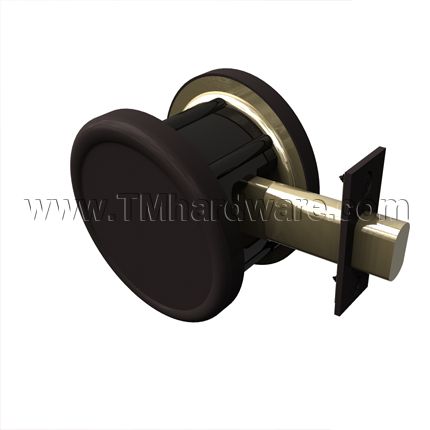

• 3220-Thumbturn with Blank Plate (no cylinder): Deadbolt thrown or retracted, from the inside, by thumbturn unit only. Blank plate on outside. Bolt automatically deadlocks when fully thrown.
  This option is not available with Small Format Interchangeable Housing.

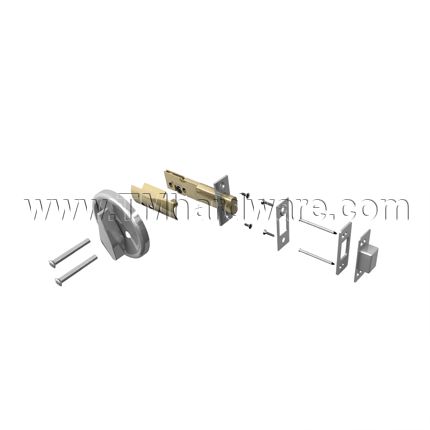

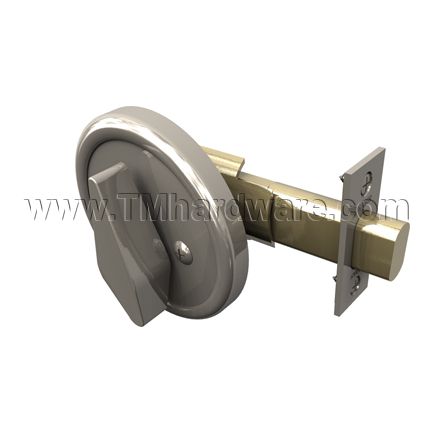

• 3221-Thumbturn only (no cylinder): Deadbolt thrown or retracted by thumbturn unit only. No outside trim. Bolt automatically deadlocks when fully thrown.
  This option is not available with Small Format Interchangeable Housing.

Standard Door Prep:

• Cylinder hole: 2-1/8" diameter (cross bore)
• Latch hole: 1" diameter (edge bore)

Exposed Trim: Wrought brass, bronze or stainless steel.

Mechanism: Steel, zinc dichromate plated.

Keys: Two operating keys, which are keyed differently, supplied per lock.

Keying Options: Available for order through our office only. Please call us at 845-388-1300.

• Keyed alike-option for 3114-double cylinder function
• MK-Master key
• CMK-Construction master key
• GMK-Grand master key
• SK-Customer specified keying
• "0" bitted cylinder
• "1" bitted cylinder

Note: For any master key options, this Master Keying Form must be filled out and faxed to us at 845-367-4657 or emailed to sales@tmhardware.com.

Keyways: Standard keyway is Schlage C.

Here are more keyway options available for order through our office only, at 845-388-1300.


Cylinder Options:

• Conventional cylinder
  • Brass, Drilled 6-pin, keyed 5-pin. Standard.
  • Brass, Drilled 6-pin, keyed 6-pin. Optional. Available through our office only, at 845-388-1300.
• Small Format Interchangeable Core Housing Option: The inner core, containing the keyway, is removable and changeable for security purposes. Say, a department store fires its manager. All the cores could be removed and changed, with new keys distributed to all its employees. This way, there is no worry that the previous manager has access to the offices. As an aside, the cores can than be sent to a locksmith for rekeying so that they could be used again.

Note: Cores are not included with this option. To order Small Format Interchangeable Cores (SFIC) call us at 845-388-1300.

Door Thickness:

• 1-3/8"-1-3/4" Thick. Standard.
• 1-3/4" Thick only. 3214 SFIC. Available through our office only, at 845-388-1300.
• 2-1/4" Thick. Optional. Available through our office only, at 845-388-1300.

Backset:

• 2-3/4". Standard.
• 2-3/8". Optional. Available through our office only, at 845-388-1300.
• 2-3/8"-2-3/4" adjustable backset supplied with 3220 and 3221 (not available for 3214/3215). Optional. Available through our office only, at 845-388-1300.

Latchbolt:

• 1" throw-brass with concealed hardened steel roller to prevent sawing or cutting.
• 1-1/8" x 2-1/4" square corner faceplate.

Strikes:

• 3930 square corner, 1-1/8" x 2-3/4" with dustbox. Standard.
• 3929 ASA deadbolt strike. Optional. Available through our office only, at 845-388-1300.

Priced per piece.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Please see product specs for exact measurements. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

This product has a lifetime guarantee against defects in workmanship and materials.
