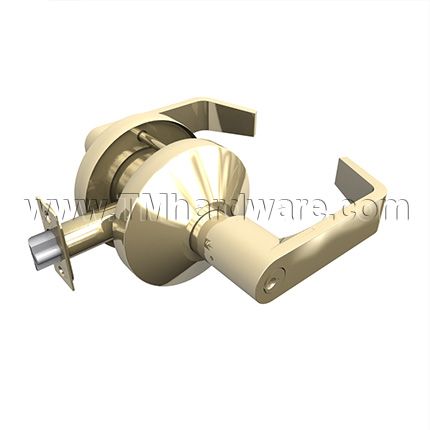

Falcon B Series Grade 2 Door Handle - Keyed, Privacy, Passage or Dummy Function

Falcon B Series Grade 2 Lock is a tough, reliable lock for a government/military, retail, industrial or multi-family project. Standard B Series Lock is provided with, door thickness 1-3/8" to 2", backset 2-3/4", 6-Pin, Solid brass, Keyed 5-Pin, Falcon G keyway, Keyed different (KD) cylinder.  Options of finishes, lever styles and functions available.

PRICED PER SET

  • Functions Explained

    Which function do I need?

See tabs below for additional information
    • SKU
      FLB-D-605
    Call for price!
    845-388-1300

    Click here to view the Falcon B Series from the Falcon Full Line Catalog

    Handing: Non-Handed

    Lever: Lever trim have individual heavy-duty springs behind rose for lever return and to prevent lever sag.

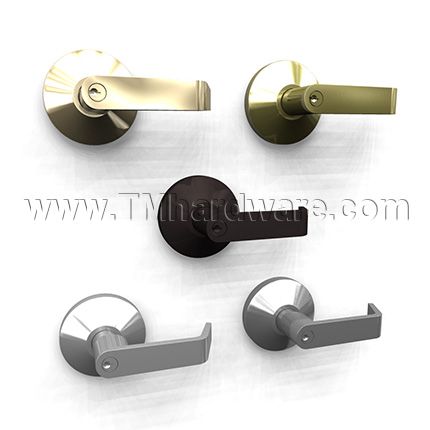

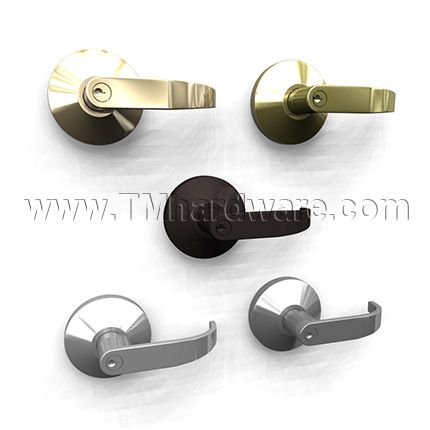

    Lever Style: Dane or Quantum, choose from options above.

    Finishes: See options above, See Falcon Finish Chart for a detailed list of Falcon's finishes.

    Trim: Trim is through bolted with four (4) screws to provide strength and resistance to loosening.

    Rose: Roses are minimum of 3-1/2" diameter.

    Material: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

    Screws: Furnished with combination screws for use in wood or metal doors and frames.

    Keys: Two, Nickel silver cut keys per lock

    Keyway: Falcon G keyway standard on conventional cylinder. "A" Keyway standard for IC-available for purchase through our office.

    Additional Keying Options: Additional keying options and keyways available through our office.

    Cylinder / Core:

    • Housing and plugs machined from Solid Brass, Springs are phospor Bronze.
    • 6-Pin Chambers, Keyed 5-Pin, Falcon G keyway, Keyed different (KD),
    • Cylinder assemblies removable to rekey.
    • Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available through our office.

    Interchangeable Cores: The B Series accepts these standard 6-pin cylinders: Assa, Kaba, Lori, Medeco, Primus and Schlage. (Can be purchased through our office.)

    Additional Cylinder Options: (Can be purchased through our office.)

    • Keyed 6-Pin or 7-Pin
    • Construction Cores
    • Small Format Interchangeable Core (SFIC)

    Door Thickness: 1-3/8" to 2"

    Backset: 2-3/4" standard. 2-3/8" also available through our office.

    Latch:

    • 1/2" throw-standard. (option of 3/4" projection through our office)
    • 1-1/8" x 2-1/4" square corner faceplate.
    • 1" housing diameter
    • Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs

    Strike: 1-1/4" x 4-7/8", ANSI, Square curved lip corner, no box

    Functions:

    • Non-Keyed Functions: B12-Dummy Trim, B101-Passage, B301-Privacy, B161-Communicating/Exit Latch
    • Keyed Functions: B341-Connecting Room, B501-Entry, B511-Entry/Office, B561-Classroom, B581-Storeroom, B611-Dormitory/Corridor
    • See B Series Lever Functions for more information

    Options available through our office only:

    • Additional latches and strikes
    • Additional cylinders and keyways
    • Additional Dustboxes
    • Additional Keys, or Large Bow Keys
    • Abrasive Strip Levers-to identify entrances that may be hazardous to the handicapped.

    Installation:

    • Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly

    Compliance Details:

    • All lever designs are solid (no inserts) and meet the federal ADA and state disability requirements
    • All locks meet the new ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.
    • Locksets are be UL Listed (3 hour A Label)
    • See Compliance Details Tab for corresponding ANSI numbers

    Priced Per Set.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

    Product has a 1 year warranty against defects in material and workmanship
     Click to view our Full Warranty Policy.

    Click here to View Falcon T-Series Cylindrical Lever, Grade 1, Extra Heavy Duty

      • SKU
        FLB-D-605
    • QuickShip
      No
    • Manufacturer
      Falcon
    • MPN
      B Series
    • Lever
      Dane, Quantum
    • Function
      Passage, Communicating Passage, Privacy, Connecting / Exit, Entry, Entry / Office, Classroom, Storeroom, Dormitory / Corridor, Single Dummy
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Chrome (US26D)
    • B101 - Passage (Non-Keyed) / F75
    • b161 - Communicating Passage / F111
    • B301 - Privacy/ Bedroom (Non-Keyed) / F76
    • Communicating Store Room / F112
    • B501 - Entry / F82
    • B511 - Entry / Office / F109
    • B561 - Classroom Lock / F84
    • B611 - Dormitory Exit / F90
    • B581 - Storeroom Lock / F86

    Finishes Comply with the following ANSI/BHMA Codes:

    • Bright Brass - US3/605
    • Satin Brass - US4/606
    • Oil Rubbed Bronze - US10B/613
    • Bright Chrome - US26/625
    • Satin Chrome - US26D/626


    *All locks shall meet the new ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.

    *Locksets shall be UL Listed 3-hour, A Label

    *All lever designs shall be solid (no inserts) and meet the federal ADA and state disability requirements
