Hager 9890 Sliding Door Series, 2 Panel Bi-Fold, 125 Lbs. Doors, Aluminum Box Track, Heavy Duty

This Bi-Fold Sliding Door Series includes all the parts necessary to install 2 Bi-Fold Panels, 1 1/8" - 1 3/4" thick. 9890 Bi-Fold Sets are available for doors weighing up to 125 Lbs. Variations of sizing are available.

PRICED PER SET - See full product details and specs in the tabs below.

See tabs below for additional information

Quantity

Add to compare

Click here to view Hager 9890 Series from full Hager Catalogue.

Included parts for 9890 Bi-Fold Sets (2 Panel): Components can be ordered separately, see links below:

(1 ea.) Aluminum Box Track (9801)
(1 ea.) Four Wheel Hanger (9827)
(1 ea.) Quick Release Plate (9610)
(1 ea.) Top and Bottom Pivot Set (9828)
(1 ea.) Bumper Stop (9815)
(3 ea.) Door Hinge (1741)
(5 ea.) #8 x 3/4" Phillips Pan Head Screws
(25 ea.) #8 x 1 1/2" Phillips Pan Head Screws
(18 ea.) #10 x 3/4" Flat Head Screws

For 4 Panel applications see our Hager 9891 Bi-Fold Sliding Door Series.

Mounting Type: Provided with hardware for overhead mounting. Optional 9900 Side Wall Mounting available.

Weight Capacity: For doors up to 125 lbs. Up to 75 lbs. per door in multi-fold applications. 250 Lbs. Maximum weight capacity.

Materials: Track is made of extruded aluminum jump-proof style with "v" shaped rails. Hangers are made from Zinc Plated Steel with Ball Bearing Axles.

Hangers: Provided standard with 1 1/4" diameter wheels.

Additional Customization Options: These products can be ordered as full Bi-Fold Kits or as individual components. Additional pull and hanger options are available through our office. To order please contact us or call our office at 845-388-1300.

Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

- SKU
  HG9890-30_017732
QuickShip
No
Manufacturer
Hager Companies
MPN
9890
About This Product
- Mounting Type
  Overhead Mount
- Door Mount
  Surface Mount
- Track Type
  V-shaped Rails Track
- System Type
  Bifold
- Included Parts
  Aluminum Box Track – 9801 (1 ea.)
  Four Wheel Hanger – 9827 (1 ea.)
  Quick Release Plate – 9610 (1 ea.)
  Top and Bottom Pivot Set – 9828 (1ea.)
  Bumper Stop – 9815 (1 ea.)
  Door Hinge – 1741 (3 ea.)
  #8 x ¾” Phillips Pan Head Screws (5 ea.)
  #8 x 1 ½” Phillips Pan Head Screws (25 ea.)
  #10 x ¾” Flat Head Screws (18 ea.)
- Material
  Aluminum
Dimensions
- Door Panel Weight
  For doors up to 125 lbs per panel bi-fold, For doors up to 75 lbs per panel multi-fold
- Door Thickness
  1 1/8" to 1 3/4" Thick
- Height Clearance
  Minimum Clearance - Door Height + 3-1/16"
  Maximum Clearance - Door Height + 4-11/16"
- Width Clearance
  2 Door Bypass - 2 times door width plus 9/16"
- Product Options
  30" Bi-Fold Track (2x15" Doors), 36" Bi-Fold Track (2x18" Doors), 48" Bi-Fold Track (2x24" Doors)
Compliance Details
- Compliance Details
  ANSI/BHMA A156.14
- ANSI Designation
  D8621, D8641, D8661
- Warranty
  1 Year Limited Warranty

Click to print Hager 9890 Sliding Door Hardware Product Specs.

Product Specs:

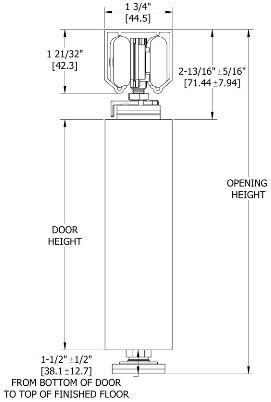

Hager 9890 Sliding Door Series Dimensions

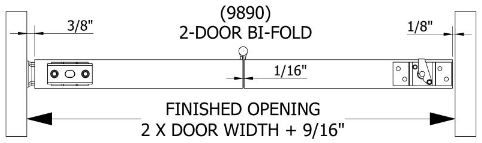

Clearance Dimensions:

Hager 9890 Sliding Door Series Clearance Dimensions

Click to view and print Hager 9890 Bi-Fold Sliding Door Series Installation Instructions.
