Hager AB920, Concealed Anti-Friction Bearing, Steel, Heavy Weight, 2 Knuckle, Full Mortise Hinge, All Sizes
Hager AB920 Full Mortised, Two Knuckle, Concealed Anti-Friction Bearing, Standard Weight Architectural Hinge. Standard weight for use with medium weight door or doors requiring medium frequency service. Made of Steel with Steel Pin. Available in two sizes and many finishes.
PRICED PER PIECE - See full product details and specs in the tabs below
Hager AB920 Full Mortised, Two Knuckle, Concealed Anti-Friction Bearing, Standard Weight Architectural Hinge. Standard weight for use with medium weight door or doors requiring medium frequency service. Made of Steel with Steel Pin.
Available Sizes:Â

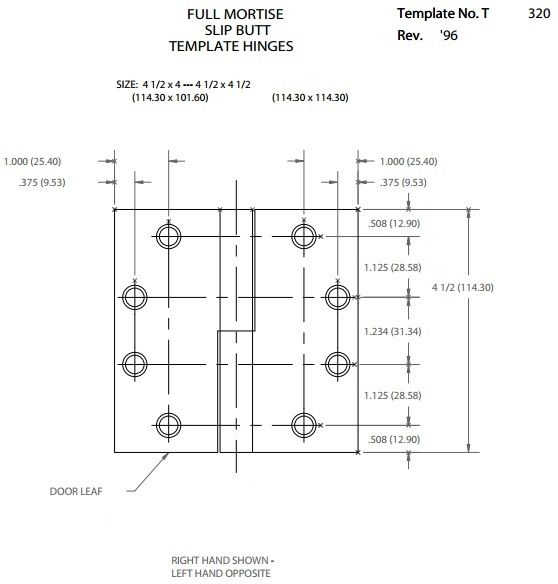

Hinge Size | Gauge of Metal | Hole Count | Screw Size | ||
 Inches |  mm   |  Machine |  Wood | ||
 4-1/2" x 4" |  114 x 102 |   0.134 |  8 |  1/2 x 12-24 |  1-1/4 x 12 |
 4-1/2" x 4-1/2" |  114 x 114 |   0.134 |  8 |  1/2 x 12-24 |  1-1/4 x 12 |
Available Finishes:Â See options above, See Hager Hinges Color Chart for a detailed list of Hager finishes.
Custom colors available. For details and pricing please contact us or call us at 845-388-1300.
Handing: This hinge is handed, please select required handing from options above. Click here to view How to Determine Door Handing. Â
Priced per piece

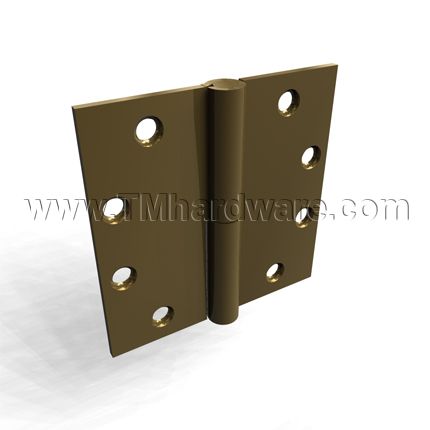

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in workmanship and materials.
 Click to view our Full Warranty Policy.
Click here to view this Standard Weight Two Knuckle Hinge with a Base of Brass or Stainless Steel - AB923.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPNAB920
-
HandingLeft Handed, Right Handed
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialSteel
-
Usage LevelHeavy Duty
-
ThrowStandard Throw
-
Bearing TypeConcealed Anti-Friction
-
Knuckles2 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-
- Dimensions
-
Hinge Size4-1/2" x 4", 4-1/2" x 4-1/2"
-
Hinge Thickness.134" Thick
-
- Installation
-
Door TypeWooden Door, Metal Door
-
Installation ScrewsInstallation Screws Provided Accordingly:
4-1/2" Hinge: All metal screws and half wood screws
3-1/2" Hinge: All wood screws and half metal screws
4" Hinge: All wood screws and half metal screws
5" Hinge: All metal screws and half wood screws
Additional screw packs can be provided if listed in order comments before completing purchase.
-
- Finishes
-
FinishPrime Coat (USP), Satin Bronze (US10), Antique Bronze (US10A), Oil Rubbed Bronze (US10B), Satin Chrome (US26D)
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-
ANSI DesignationA8112, A156.18
-
Warranty3 Year Limited Warranty
-
