Hager ECBB1102, 4 Ball Bearing, Steel, 5 Knuckle, Full Mortised ECCO Hinge, All Sizes
Hager ECBB1102 Full Mortised, Five Knuckle, Architectural Hinge with Ball Bearings, of the Hager ECCO Series. Heavy weight for use with heavy weight doors and doors of high frequency service. Made of Steel with Steel Pin. Variety of sizes and finishes available.
PRICED PER ITEM
Sold per piece in quantities of 3.
Hager ECBB1102 Full Mortised, Five Knuckle, Architectural Hinge with Ball Bearings, of the Hager ECCO Series. Heavy weight for use with heavy weight doors and doors of high frequency service. This hinge is part of our ECCO line which is of lower price and quality than our standard USA line. To view the equivalent in standard architectural line, see our Hager BB1168 Hinge
Available sizes:Â
Hinge Size | Gauge of Metal | Hole Count | Screw Size | ||
 Inches |  mm   |  Machine |  Wood | ||
 4-1/2" x 4-1/2" |  114 x 114 |  0.180 |  8 |  1/2 x 12-24 |  1-1/4 x 12 |
 5" x 4-1/2" |  127 x 114 |  0.190 |  8 |   1/2 x 12-24 |  1-1/4 x 12 |
Available Finishes:Â See options above, See Hager Hinges Color Chart for a detailed list of Hager finishes.
Hinge is provided with a non-rising removable pin. The pin does not rise out of the barrel, yet it is removable, which allows the pin to be taken out for the dismantling of the door without unscrewing the entire hinge. Flush pin and plug.Â

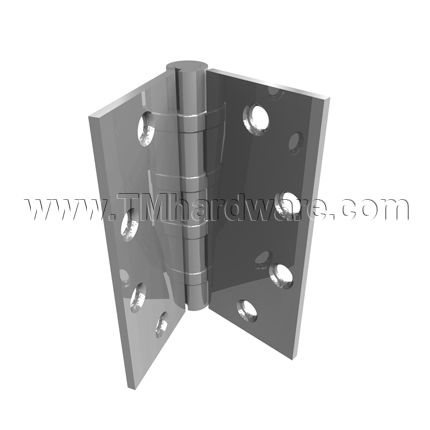

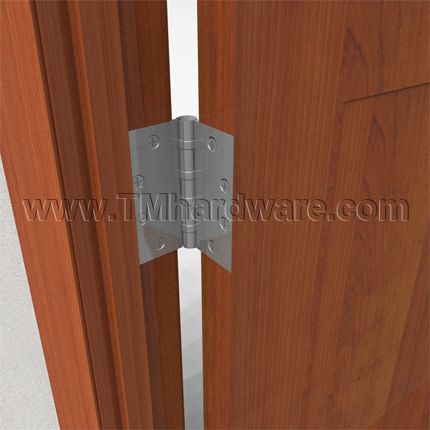

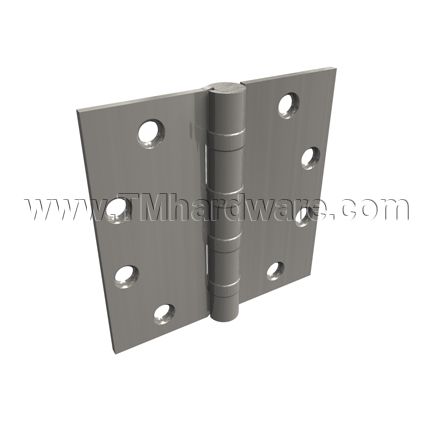

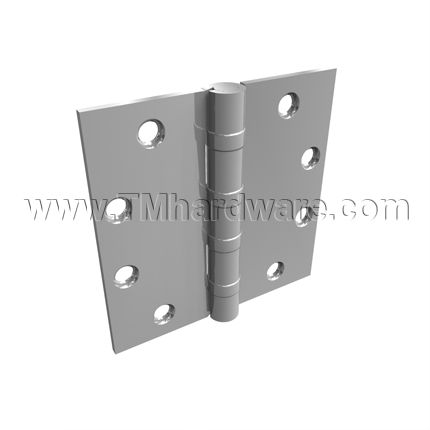

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs Tab for exact measurements.
 Click to view our Full Warranty Policy.
Click here to view our Hager ECBB1101 Ball Bearing ECCO Hinge of Standard Weight in Brass or Stainless Steel.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPNECBB1102
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialSteel
-
Usage LevelExtra Heavy Duty
-
ThrowStandard Throw
-
Bearing TypeBall Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-
- Dimensions
-
Hinge Size4-1/2" x 4-1/2", 5" x 4-1/2"
-
Hinge ThicknessSee Dimensions Chart
-
- Installation
-
Door TypeWooden Door, Metal Door
-
Installation ScrewsInstallation Screws Provided Accordingly:
4-1/2" Hinge: All metal screws and half wood screws
5" Hinge: All metal screws and half wood screws
Additional screw packs can be provided if listed in order comments before completing purchase.
-
- Finishes
-
FinishPrime Coat (USP), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D)
-
- Compliance Details
-
Compliance DetailsBHMA Certified, NFPA80
-
ANSI DesignationA8111, A156.18
-
Warranty1 Year Limited Warranty
-
Click to Print 4-1/2" Hinge Template
Click to Print 5" Hinge Template
Â

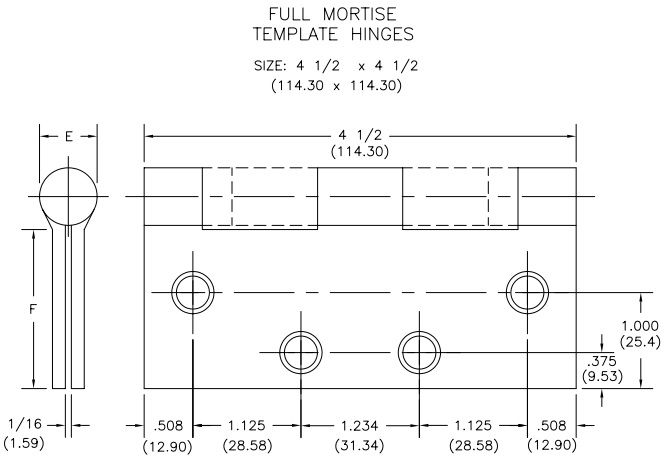

4-1/2" Hinge Template. Select links above for additional templates.
