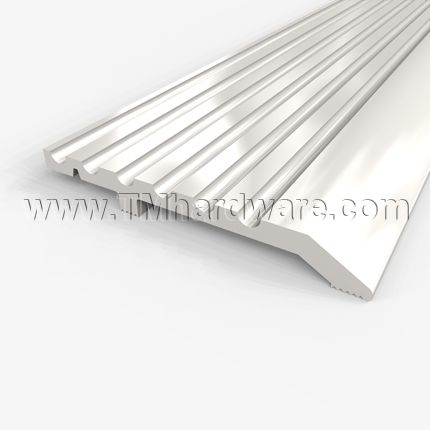

Zero #1674 Half Threshold, 4" (W) Heavy Duty Aluminum, .5" (H)

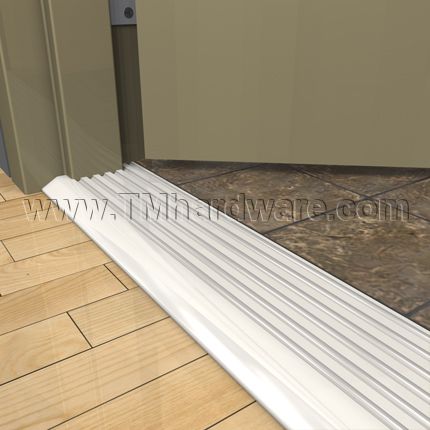

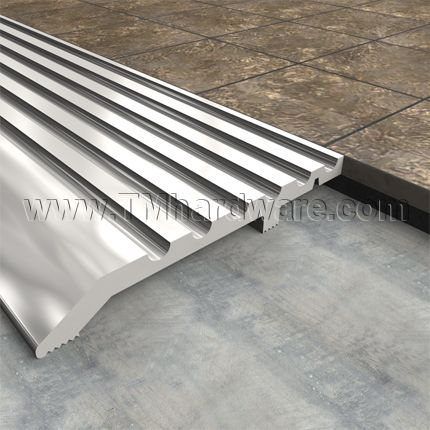

This Zero #1674 Half Threshold is used against a drop in floor surfaces, edging it off in a neat and smooth manner and creating a smooth transition between the two. Beveled on only one side and made of heavy duty .25" thick metal it can be used on its own or underneath a door. It is available in aluminum mill finish with options of epoxy abrasives and full body strength. Length is custom cut to size.
PRICED PER FOOT
Half Thresholds remove the tripping hazards associated with floor changes. Super heavy duty design.
Width: 4"
Offset Height: .5"
Length: Custom cut to size up to 104" (Larger sizes can be purchased through our office)
Thickness: .25"
Finish: Aluminum mill finish
Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.
Drilling: This product is drilled at standard factory locations.
Additional Options Include:
-

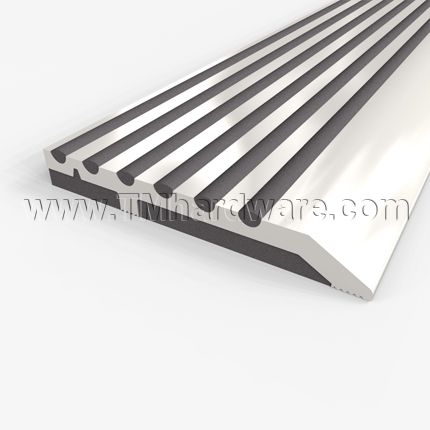

Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.
-

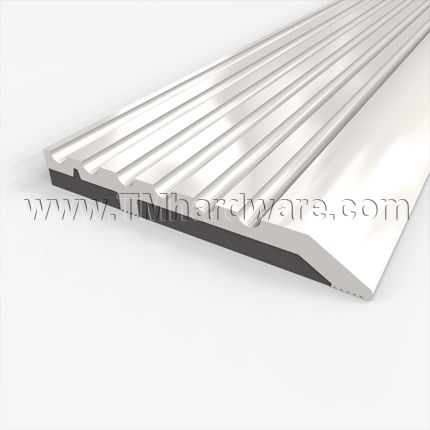

Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, and industrial facilities.
-
Photoluminescent: Facilitates safe emergency exit when power systems have failed. The photoluminescent material is charged by exposure to ambient light and admits luminescent after the activating light source is no longer available. Made with top grade strontium pigments, the material in the system is non-electric, non-toxic and non-radioactive. It is designed for easy maintenance, maximum durability and good slip resistance in all conditions
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.
Click Here to View our Zero International #1675 5" Half Threshold in Aluminum Mill Finish for a wider threshold
-
QuickShipNo
-
ManufacturerZero International
-
MPN1674
-
OptionsNone, Epoxy Abrasives, Full Body Strength, Both Epoxy and Full Body

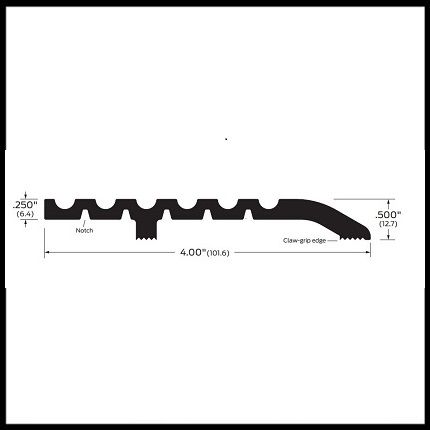

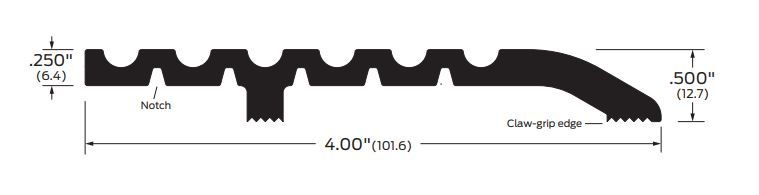

- Dimensions
-
Overall Height.5" Height
-
Overall Width4" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
Thickness.25" Thick
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeHalf Threshold
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilled along the center line
-
FastenersFasteners Provided
-

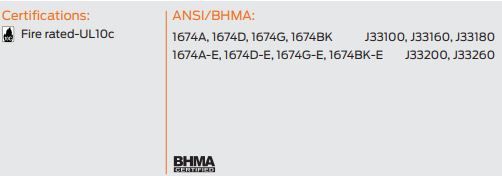

- Compliance Details
-
Warranty1 Year Limited Warranty
-
