Pemko #146B Interlocking Threshold, 4" Bronze with Water Return for In-Swing Doors, 1.25" H

Pemko #146B Interlocking Threshold, 4" Bronze with Water Return for In-Swing Doors, 1.25" H
Pemko Manufacturing

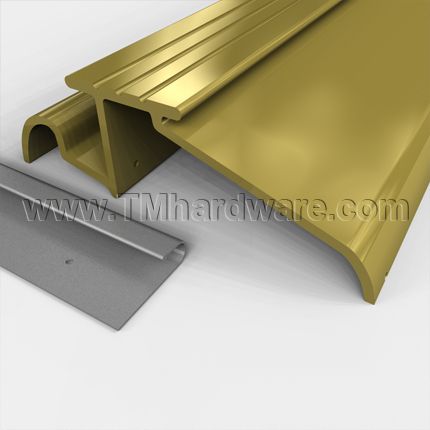

This tall Residential Interlocking Threshold Set with Water Return for in- swing doors creates a barrier against water infiltration by latching with an Interlocking J Hook (provided) installed on the under- side of the door. This completely seals beneath-the-door gaps. The water return design catches moisture that has passed over the threshold and returns it to the outside by way of a sloped Drain Pan (sold separately). Custom cut to size.

PRICED BY THE FOOT

This product is also available in aluminum finishes, see our 4" Aluminum or Bronze Interlocking Threshold with Water Return.

See tabs below for additional information
    • SKU
      PK-146B
    • Market price:$500.44
      • save 10%
    • Starting price: Price: $450.40 per foot


    This product is also available in aluminum finishes, see our 4" Aluminum or Bronze Interlocking Threshold with Water Return.

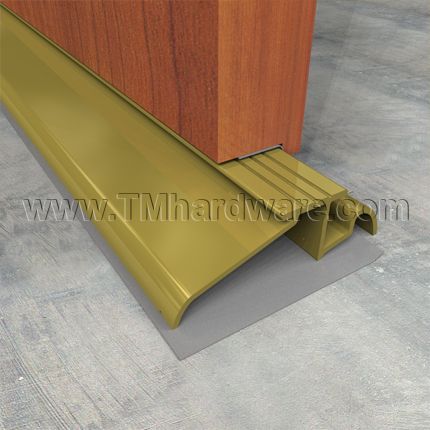

    This Interlocking Residential Threshold set  for inswing doors is designed to seal the air- gap beneath external doors. This model is useful to completely seal external residential doors in areas of high elevation or homes near the ocean.

    Width: 4"

    Height: 1.25" (1-1/4")

    Length: Custom cut to size up to 104" (larger sizes can be purchased through our office)

    Finishes: Bronze mill finish (Oil rubbed bronze can also be purchased for an additional 40% of standard bronze pricing)

    Weep Hole: The water return catches any water which may run under the door and return it to the outside through interior weep holes

    Drain Pan: A Drain Pan can be purchased separately by selecting link. The pan aids in draining internal water.

    Interlocking Hook: Interlocking J Hook is provided. Designed to be nailed to the underside of the door or installed in the rabbet of the door.

    Additional Interlocking Options: Also compatible with Surface Mounted Interlocking Angles and Under-side of Door Mount Interlocking Angles made by Pemko (Product number begins with a “P”.)

    Installation: Installation guide and screws provided. Screws are colored to coordinate with casing. When installing into concrete, anchors are recommended (not included, can be purchased through our office)

    Drilling: Threshold is drilled for easy installation

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

     Need a lower interlocking threshold? Check out our Residential Interlocking Threshold Set, Water Return, Anodized Aluminum, 4” W and .625”

      • SKU
        PK-146B
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      146
    • Finishes
      • Finish
        Bronze Mill Finish (Brass)



    Product Specs

    Click to Print Product Specs

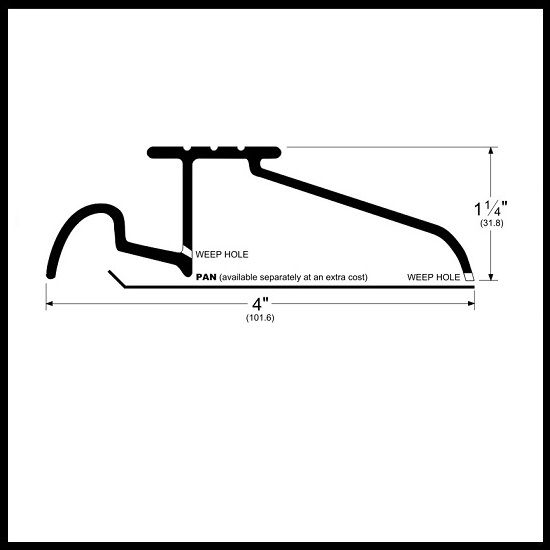

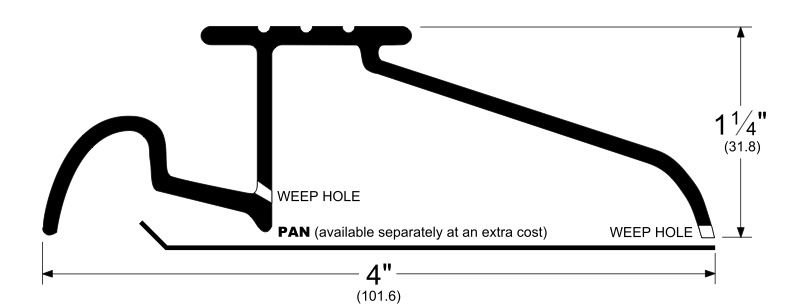

    Interlocking Threshold                                                                  J-Hook

    Compliance Details

    Finishes Comply with the Following ANSI / BHMA Codes:

    • Bronze Mill Finish (Brass) - US4 / 720
