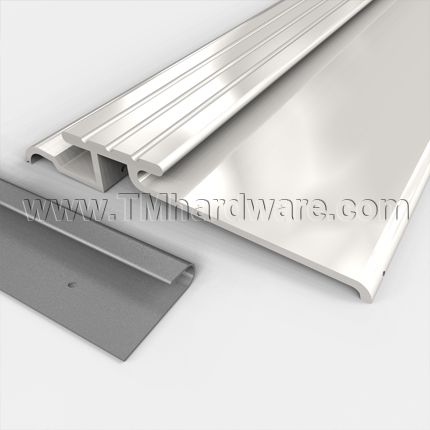

Pemko #142, Interlocking Threshold, 4" Wide, Aluminum, with Water Return

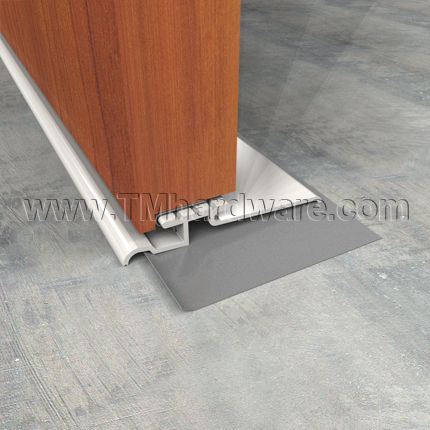

This Interlocking Threshold Set with Water Return creates a barrier against water infiltration by latching with an Interlocking J Hook installed on the under- side of the door. This completely seals beneath-the-door gaps. The water return design catches moisture that has passed over the threshold and returning it to the outside by way of a sloped Drain Pan (sold separately). Available in aluminum mill finish and two anodized finishes. Fire rated and custom cut to size.

PRICED PER FOOT

See tabs below for additional information

Finish
Size (Inches)

Quantity

Add to compare

This Interlocking Door Threshold set for inswing and outswing doors is designed to seal the air- gap beneath external doors.

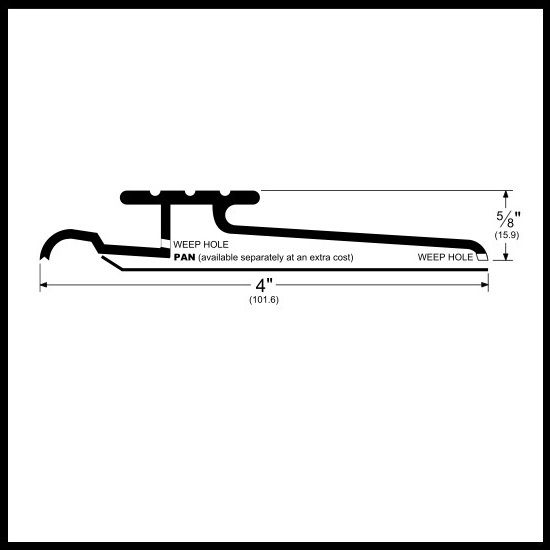

Width: 4"

Height: .625" (5/8")

Length: Custom cut to size up to 104" (larger sizes can be purchased through our office)

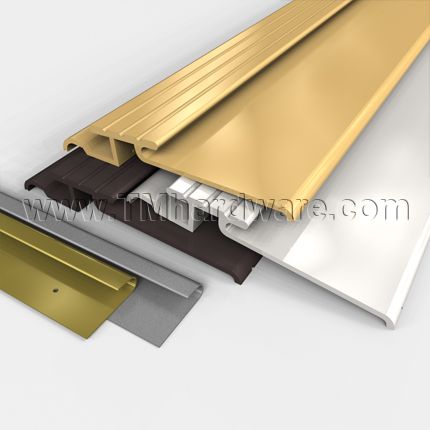

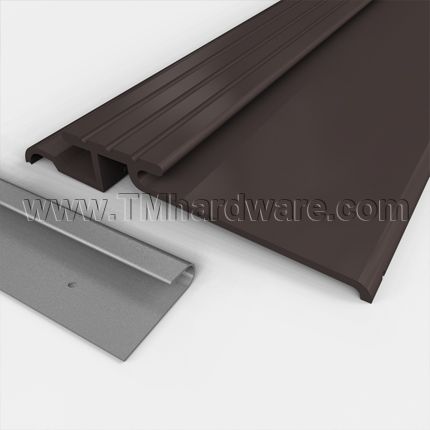

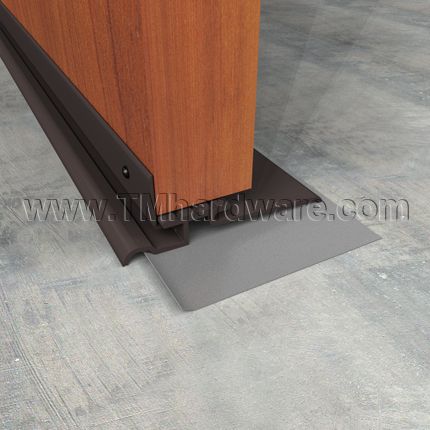

Finishes: Aluminum Mill, Dark Bronze Anodized Aluminum, Gold Anodized Aluminum

Compliance Details: Fire Rated, UL Listed

Weep Hole: The water return catches any water which may run under the door and return it to the outside through interior weep holes

Drain Pan: A Drain Pan can be purchased separately by selecting link. The pan aids in draining internal water.

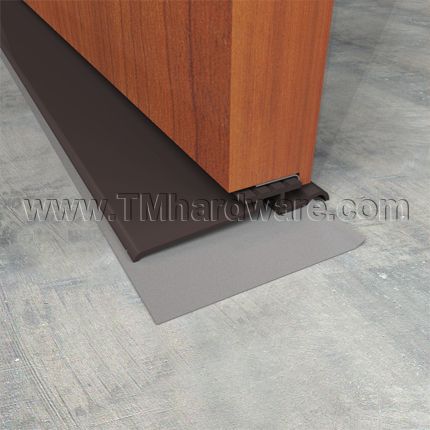

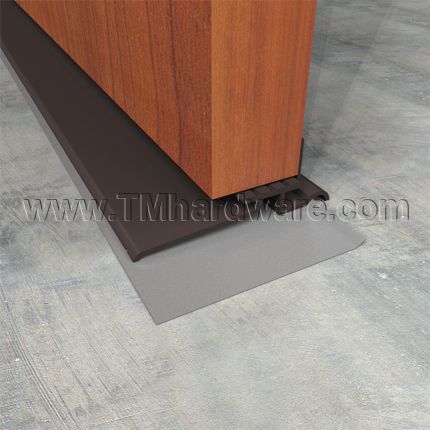

Interlocking Hook: Interlocking J Hook is provided. Designed to be nailed to the underside of the door or installed in the rabbet of the door.

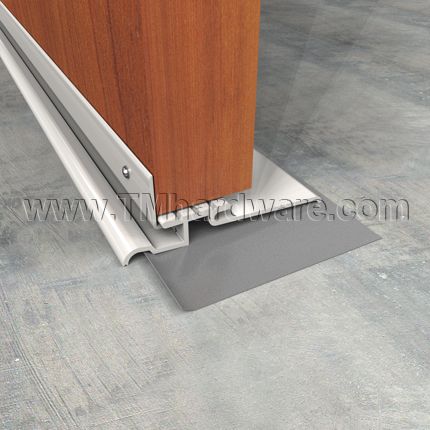

Additional Interlocking Options: Also compatible with Surface Mounted Interlocking Angles and Under-side of Door Mount Interlocking Angles made by Pemko (Product number begins with a “P”.)

Finishes: Available in aluminum mill finish, and two anodized finishes; dark bronze anodized and gold anodized.

Installation: Installation guide and screws provided. Screws are colored to coordinate with casing. If threshold is being drilled into concrete, an Expansion Anchor is recommended.

Drilling: Threshold is supplied drilled for easy installation

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

Need a slightly taller thresholds to close the gap? Check out our Threshold Interlocking Set, Water Return, Aluminum or Bronze, 4” W, .875” H

- SKU
  PK142A
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
142
Dimensions
- Overall Height
  .625" Height
- Overall Width
  4" Width
- Threshold Length
  Custom Cut to Size
Product Design
- Flat Saddle Design
  Fluted (Grooved) Design
- Threshold Type
  Interlocking Threshold
- Material
  Aluminum
Installation
- Drilling Holes
  Drilling holes provided
- Fasteners
  Fasteners Provided
Finishes
- Finish
  Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
Compliance Details
- Warranty
  5 Year Limited Warranty

Click to Print

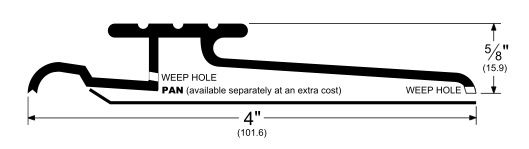

P142 Product Specs:

Threshold J-Hook

Click to Print

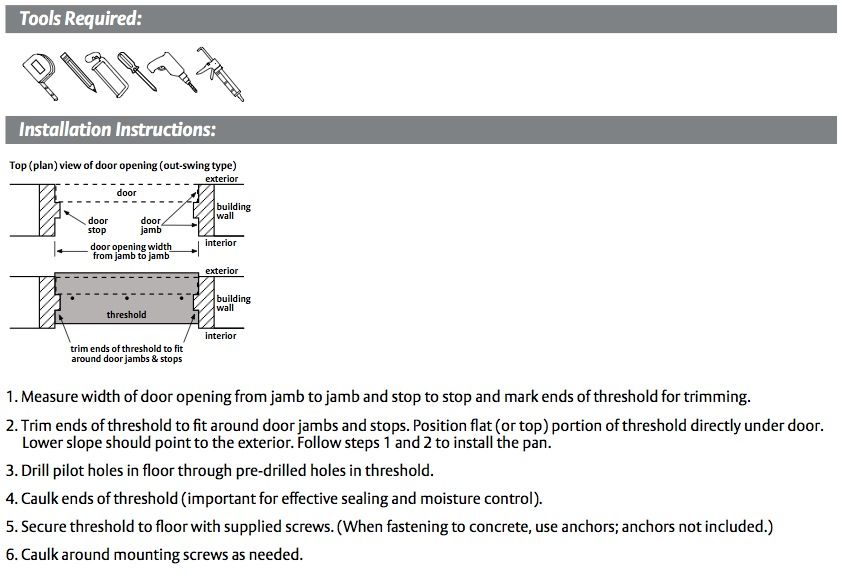

P142 Installation Guide:

Click to View Ratings Explained

Finishes Comply with the Following ANSI / BHMA Codes:

Aluminum Mill Finish - US27 / 719
Dark Bronze Anodized Aluminum - US10B / 710
Gold Anodized Aluminum - US4 / 688
