Pemko #179 Latching Panic Exit Threshold, 5" Aluminum or Bronze with Rubber or Brush Seal, .75" H

Pemko 179 Aluminum Threshold with Pile Brush Seal
Pemko Manufacturing

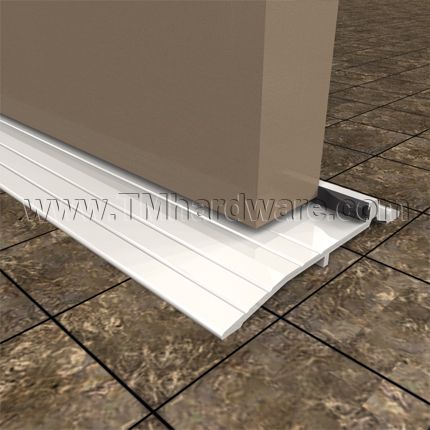

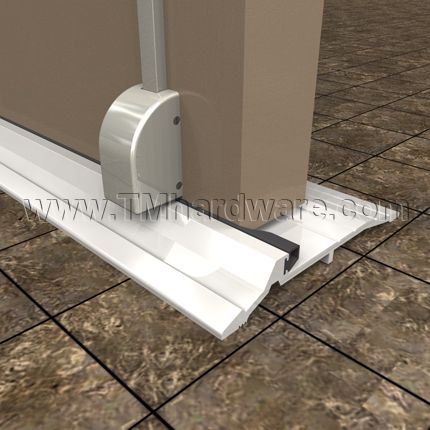

This Latching Panic Exit Saddle is designed to be used with a surface applied vertical rod exit device and as a door bumper with a seal at the bottom of doors. It is made of high-quality material that will ensure long-lasting usage. It has a 5" width and a height clearance of .375". Available with thermo, vinyl or brush seal, aluminum or bronze variations, and custom cut to size.

PRICED PER FOOT

See tabs below for additional information
    • SKU
      PK179AP
    • Market price:$40.80
      • save 10%
    • Starting price: Price: $36.72 per foot


    Threshold design is compatible with a surface applied vertical rod exit device. This threshold is made of high quality material to ensure long lasting usage.

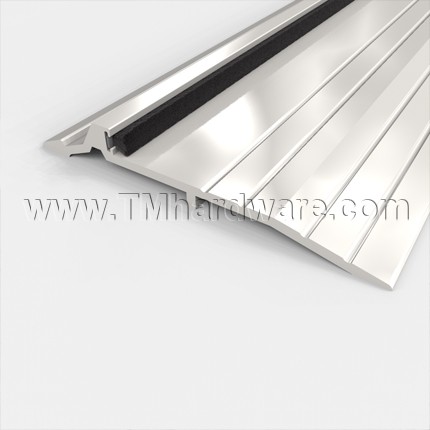

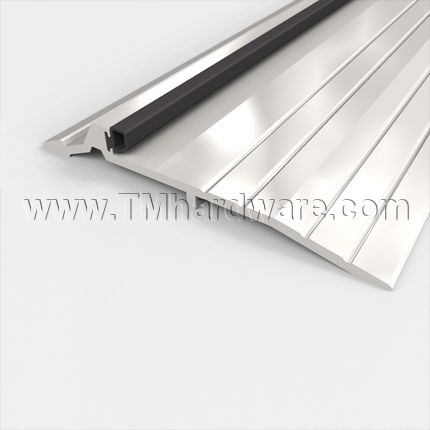

    Available Seals: It can be purchased with either a thermo, vinyl, and pile brush seal which compresses against the door to form a tight seal.

    Thermo vs. Vinyl Seal: The thermo seal is a higher grade rubber than its vinyl counterpart and has a greater acoustic performance rating, creating a stronger soundproof seal. It has better performance than vinyl in extreme cold or hot temperatures and is recommended for locations with extreme weather. The vinyl seal wears quicker than thermo, so for best performance, apply vinyl in areas with light traffic abuse.

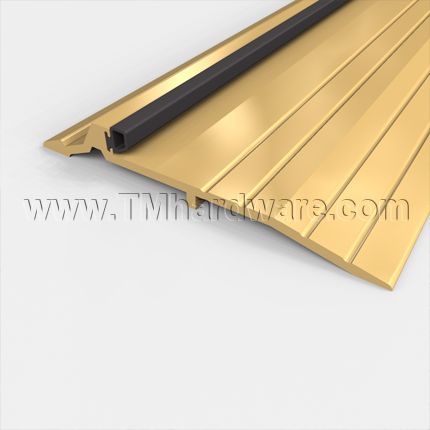

    Finishes: Available in various different finishes; choose from dropdown above (Oil Rubbed Bronze can also be purchased through our office for an additional 40% of standard bronze pricing)

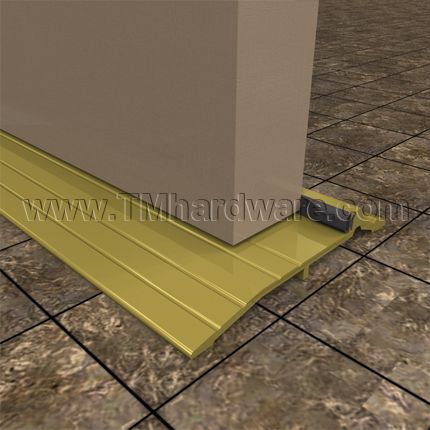

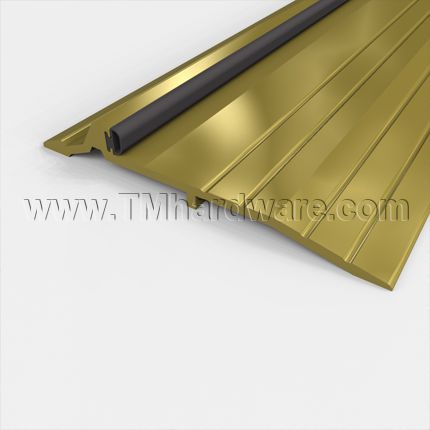

    A Note on Finishes: Aluminum Mill Finish is plain smooth metal as it comes from the mill, without a coating. Bronze is a mill finish, sometimes referred to as Architectural Bronze. It is a solid bronze piece, which increases longevity and aesthetics, thus the large difference in price. It gets darker in color with time when exposed to the environment. Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance.

    Compliance Details: See the Product Data tab to the right

    Installation: Installation instructions and screws provided. Screws are colored to coordinate with the saddle. If the threshold is being drilled into concrete, an Expansion Anchor is recommended.

    Drilling: Threshold is supplied drilled for easy installation

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click to view our Full Warranty Policy.

    Click here to view all our Bumper Thresholds with Rubber Seals.

      • SKU
        PK179AP
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      179T, 179P, 179V
    • Dimensions
      • Overall Height
        .75" Height
      • Interior Height
        .375" Height
      • Overall Width
        5" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .5" Height
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Latching Panic Exit Threshold
      • Seal Type
        Thermo Seal, Vinyl Seal, Pile Brush Seal
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Fire Rated, Air Infiltration Rated, Sound Rated, BHMA Certified
      • ANSI Designation
        J35100, J36100
      • Warranty
        5 Year Limited Warranty

    Click to Print

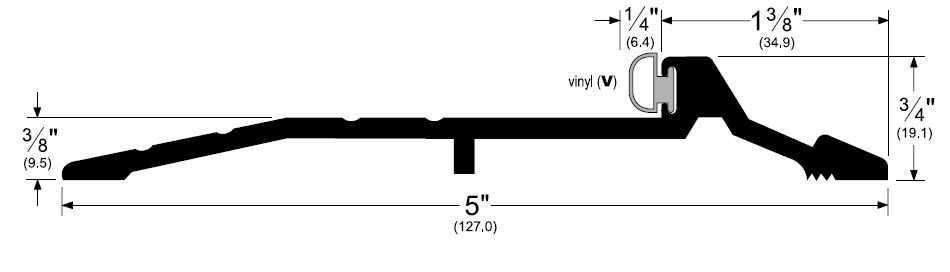

    P179 Product Specs:



    Recommended door clearance is .5"

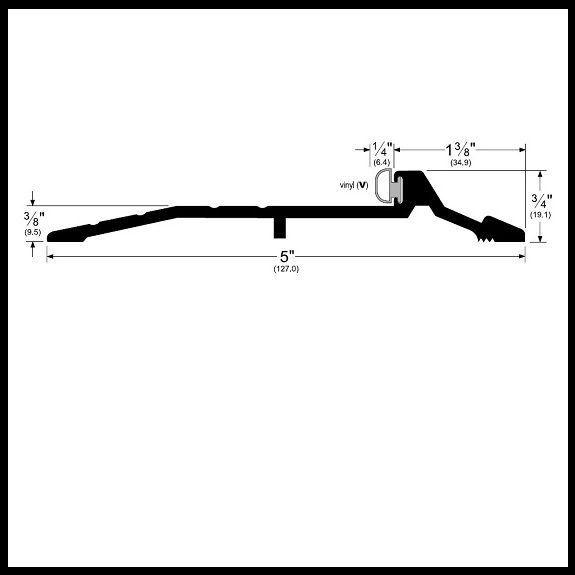

    Vinyl Seal:

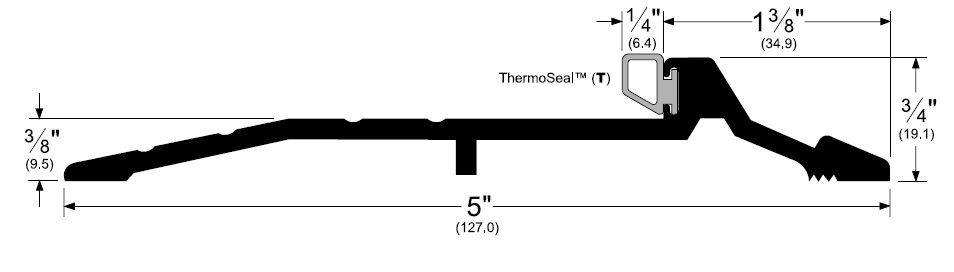

    Thermo Seal:

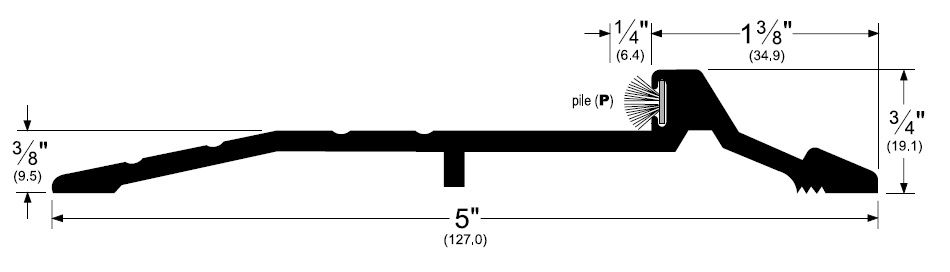

    Pile Brush Seal:

    Click to Print



    P179 Installation Guide:
