NGP 896-ADJ Adjustable Latching Panic Exit Threshold, 5" Aluminum, .5" Height

NGP 896-ADJ Adjustable Latching Panic Exit Threshold, 5" Aluminum, .5" Height
National Guard Products

NGP 896-ADJ Latching Panic Exit Threshold  is designed to be used with a surface applied vertical rod exit device and as a door bumper with a seal at the bottom of doors. It has a width of 5" with a full height of .5" which creates a barrier against dirt, dust, drafts and light infiltration. The adjustable threshold can be adjusted to overcome swelling and/or shrinking of the door and floor. Available in mill aluminum finish with a choice of seals. Length is custom cut to size.

PRICED PER ITEM - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG896V-ADJ
    • Market price:$24.80
      • save 15%
    • Starting price: Price: $21.08 per foot


    NGP 896-ADJ Adjustalbe Latching Panic Exit Threshold Key Features:

    Threshold design is compatible with a surface applied vertical rod exit device.

    Material: Aluminum Alloy 6063, T5 Temper

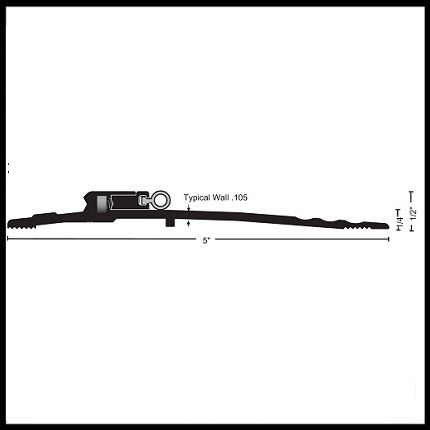

    Width: 5"

    Height: .5" (1/2")

    Length: Custom cut to size

    Typical Wall Thickness: .105"

    Weight: .78 lbs./Ft.

    Inserts:  Gray Vinyl, Black Silicone, Black NGP-TPV

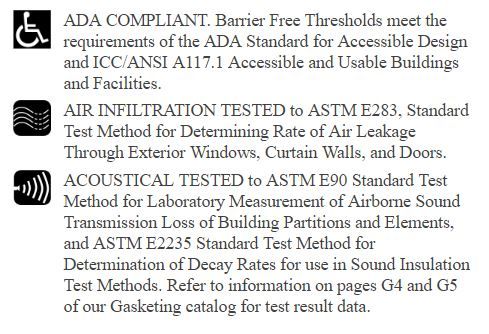

    Compliance Details: ADA Compliant, UL Listed, ANSI/BHMA Certified, Air Infiltration Tested, Positive Pressure Certified, Acoustical Tested with Silicone Seal.

    Adjustable:

    • Stainless steel adjustment screws on 10" centers allow adjustment without re-positioning mounting location
    • Adjusting range 1/4"
    • Adjust seal using 7/64" allen wrench

    Installation: See Installation Guide tab.

    • If threshold is being drilled into concrete, an Expansion Anchor is recommended.
    • #10 x 1-1/2” FH zinc plated wood screws provided.
      • Dark Bronze Aluminum thresholds are supplied with dark bronze plated screws

    Drilling: Threshold is drilled in standard factory locations.

    Options (Can be purchased through our office at 845-388-1300): Available with Slip Resistant Textured Finish for thresholds up to 24".

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

    For additional thresholds see our NGP 896 Latching Panic Exit Threshold .5" Height

      • SKU
        NG896V-ADJ
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      896-ADJ
    • Seal
      Vinyl, Silicone, NGP-TPV
    • Dimensions
      • Overall Height
        .5" Height
      • Overall Width
        5" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .625" Height
      • Thickness
        .105" Thick
    • Product Design
      • Flat Saddle Design
        Smooth Top Design
      • Threshold Type
        Adjustable Height Threshold, Latching Panic Exit Threshold
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Compliance Details
      • Warranty
        3 Year Limited Warranty

    Mill Aluminum complies with ANSI/BHMA US27 / 627
