TMH Rabbeted Threshold, 4.8" Aluminum with Neoprene Gasket, Heavy Duty, .875" H - QuickShip

TMH Rabbeted Threshold, 4.8" Aluminum with Neoprene Gasket, Heavy Duty, .875" H - QuickShip
Trademark Hardware

This door threshold is is fitted with a neoprene stop which will ensure solid protection from sound, air infiltration, smoke and fire. It is crafted from heavy duty material to ensure quality performance. Available in Aluminum Mill Finish. Available in stock sizes.

PRICED PER ITEM - See full product details and specs in the tabs below

Available in stock sizes - 32" and 36" long are available to ship within 1 Business Day! For custom sizes, see our Rabbeted Threshold, 4.8" Aluminum with Neoprene Gasket, Heavy Duty #565

See tabs below for additional information
    • Weight
      4 lbs
    • SKU
      TH565A32
    • Starting price: Price: $62.59 per item
    In stock (22 items available)


    This is a QuickShip product, available in stock sizes only - for custom sizes see our full product Rabbeted Threshold, 4.8" Aluminum with Neoprene Gasket, Heavy Duty #565

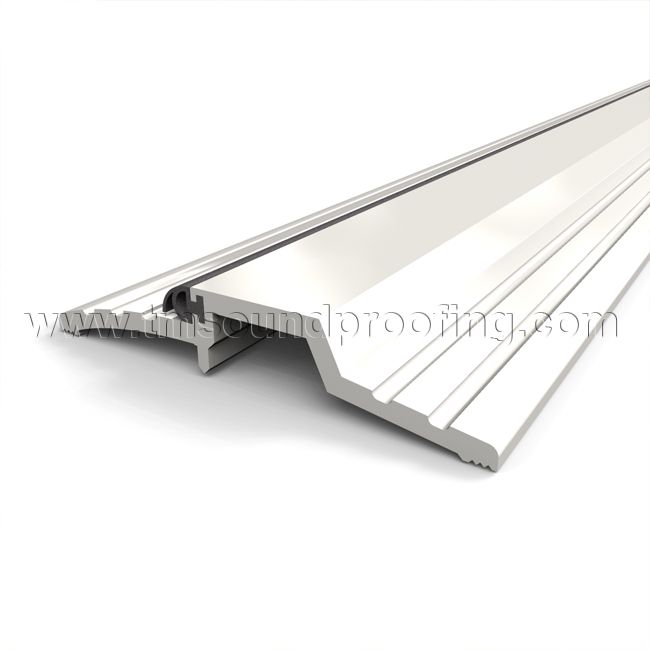

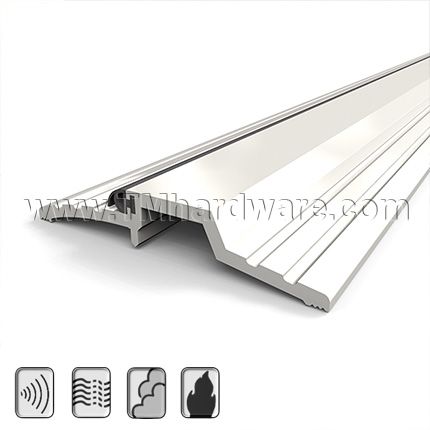

    Threshold spans under doors and has a solid neoprene seal which compresses against a closed door to ensure a superior seal. Saddle design has a flat top surface which works well with a Surface Mounted Automatic Door Bottom.

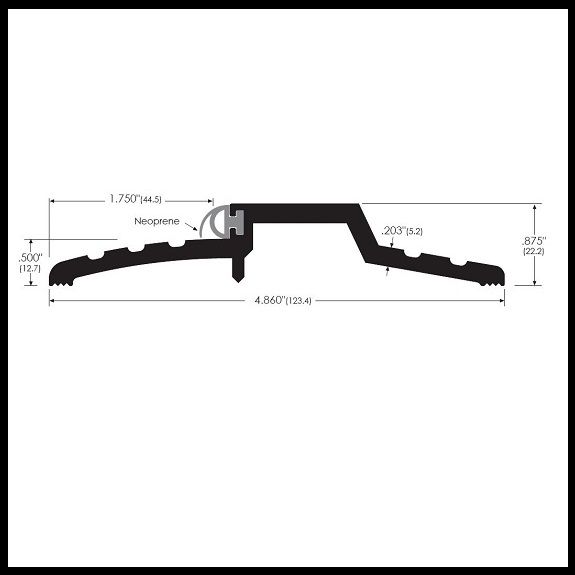

    Total Width: 4.860"

    Width Under Door: 1.75"

    Required Door Clearance: .5"

    Total Height: .875"

    Length: Available in stock lengths.

    Thickness: .203"

    Finish: Aluminum mill finish

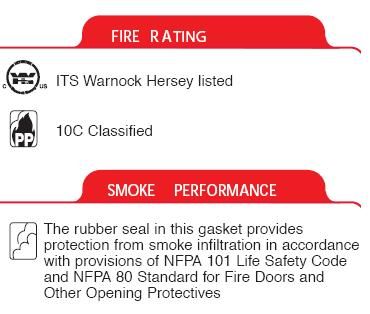

    Compliance Details: Positive Pressure Fire Rated, Smoke Rated, ITS Warnock Hersey Listed

    Seal: Solid Neoprene EBF (Extruded Bulb and Finger Design). The bulb has great compression properties while the additional finger aids in sealing extra gaps due to misalignment during installation or natural warping of the door. Solid neoprene will remain effective in extreme weather conditions.

    Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.

    Please note, the images are for illustration purposes. They are not actual photos. Therefore, actual color may vary and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy.

    For a threshold with a lower profile, see our Soundproof Rabbeted Threshold #564

      • Weight
        4 lbs
      • SKU
        TH565A32
    • QuickShip
      Yes
    • Manufacturer
      Trademark Hardware
    • MPN
      565
    • Dimensions
      • Overall Height
        .875" Height
      • Overall Width
        4.8" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .5" Height
      • Thickness
        .203" Thick
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Rubber Seal / Bumper Threshold
      • Seal Type
        Neoprene Seal
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Compliance Details
      • Warranty
        5 Year Limited Warranty

    Threshold Complies with the Following ANSI / BHMA Codes:

    • Standard Aluminum: J36100
    • Threshold has passed the ANSI Standard Load Test

    SHIPPING / PROCESSING TIME:

    This product is part of our QuickShip line and will ship within 1 business day

    If out of stock, shipping may take up to 2 weeks, call to confirm stock.
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This products can be returned up to 30 days from date of purchase.
      • Custom cut item are not returnable
      • Item must be in new, resalable condition. No restock fee will be applied.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
