NGP 9600 Door Sweep and Perimeter Gasket, .875" Aluminum Casing with .5" Premium Grade Nylon Brush Seal

NGP 9600 Door Sweep and Perimeter Gasket, .875" Aluminum Casing with .5" Premium Grade Nylon Brush Seal

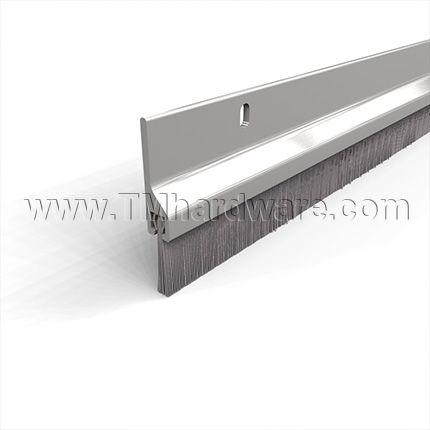

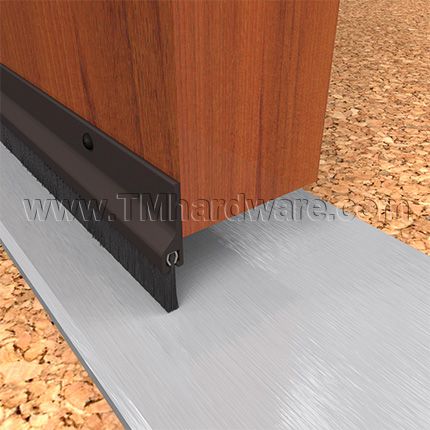

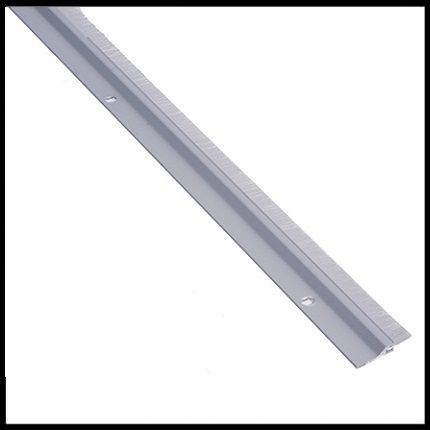

Product specs of NGP 9600 Door Sweep or Perimeter Gasket Actual Image of NGP 9600 Door Sweep and Perimeter Gasket in Anodized Aluminum Finish NGP 9600 Door Sweep and Perimeter Gasket, .875" Aluminum Casing with .5" Premium Grade Nylon Brush Seal NGP 9600 Door Sweep and Perimeter Gasket, .875" Aluminum Casing with .5" Premium Grade Nylon Brush Seal in Gold Finish NGP 9600 Door Sweep and Perimeter Gasket, .875" Aluminum Casing with .5" Premium Grade Nylon Brush Seal in DKB Finish applied as a door sweep
0.0

NGP 9600 Door Sweep / Perimeter Gasket is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities.  This premium grade seal is specially formulated to withstand greater temperature extremes while providing maximum protection against air infiltration. Casing height measures .875", while brush portion has a height of .5". Available in 4 anodized finishes and length is custom cut to size.

PRICED PER FOOT - see product specs and details in the tabs below

Price: $6.95
Finish
Length (Inches)
Mounting
Qty
Save to wishlist
Made in USA
SKU N9600A
Shipping See Shipping Tab Below
Description

NGP 9600 Door Sweep Key Features:

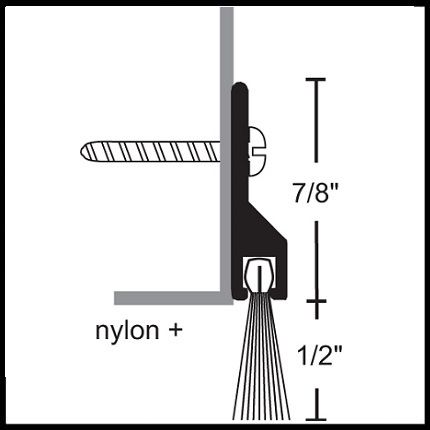

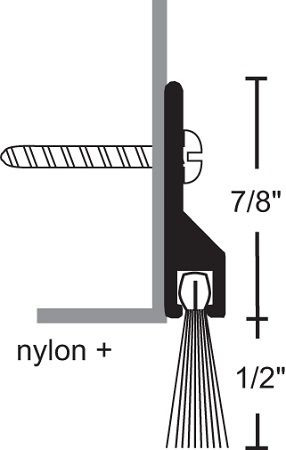

Casing Height: 7/8" (.875" )

Seal Height: 1/2" (.5")

Total Height: 1-3/8" (1.375")

Retainer Material: Aluminum alloy 6063, T5 temper

Seal Material: Nylon Brush. This premium grade seal is specially formulated to withstand greater temperature extremes while providing maximum protection against air infiltration. The seal has excellent abrasion resistance, flexibility and memory. It retains insecticides well and is moisture resistant, however it is not effective against water penetration.

Temperature Range: -70°F to 425°F

Mounting Options: select from options above

  • Screws Only: Screw holes are slotted for easy adjustment once installed
  • Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

Finishes: Mill Aluminum (Gray Brush), Anodized Aluminum (Gray Brush), Dark Bronze Aluminum (Black Brush), Gold Aluminum (Black Brush)

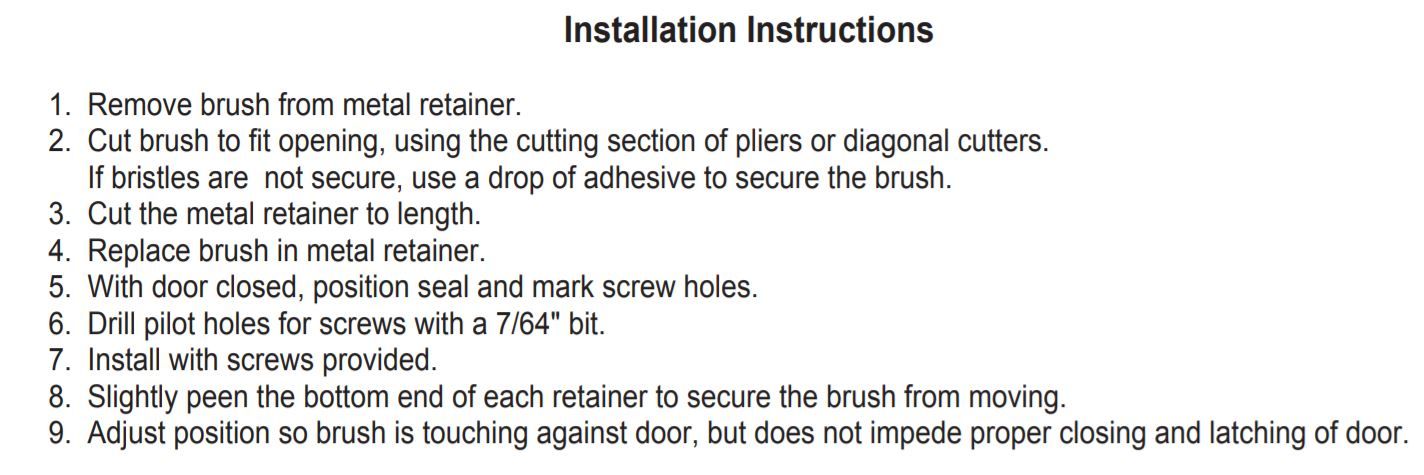

Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.

Compliance Details: REACH and RoHS compliant, Fire and Smoke Rated, UL Certified, Air Infiltration Tested, ANSI/BHMA certified, see Compliance Details tab for more information.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.


This product has a 3 year guarantee against defects in material and workmanship.

Click here to view our Full Warranty Policy.

For additional premium grade door sweeps, see our NGP 9675 Door Sweep and Perimeter Gasket with Aluminum Casing and Snap-on Cover and .4375" Nylon Brush Seal

Product Specs
Compliance Details

The following finishes comply with ANSI/BHMA Codes

  • Anodized Aluminum US28 / 628
  • Mill Aluminum US27 / 719

REACH and RoHS compliant

Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 7-14 business days to ship
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
