Pemko #253x226FG Latching Panic Exit Threshold, 5.125" Alum. or Bronze with Thermal Break and Seal, .875" H

Pemko 253x226FG Aluminum Latching Panic Exit Threshold with Vinyl Seal
Pemko Manufacturing

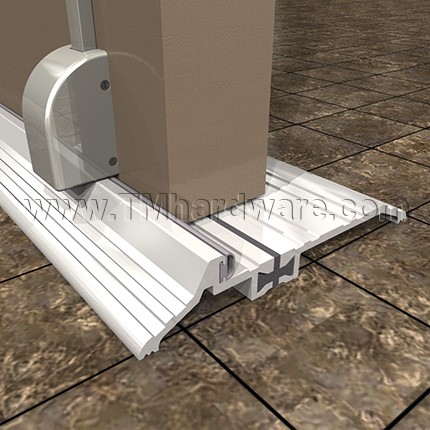

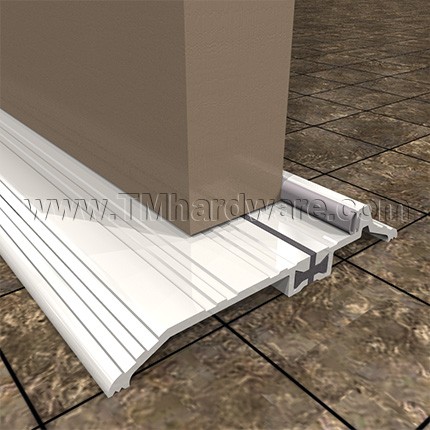

This Latching Panic Exit with Thermal Break and Seal is designed to be used with a surface applied vertical rod exit device and as a door bumper with a double seal at the bottom of doors. It has a 5.125" width and a height clearance of .5". Available with thermo, vinyl or brush seal, aluminum or bronze variations and is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information
    • SKU
      PK253x226-AFGV
    • Market price:$53.98
      • save 10%
    • Starting price: Price: $48.58 per foot


    The threshold is fitted with a black rigid polypropylene break which reduces heat loss and prevents frost build up on the interior surface of the saddle. The threshold design is compatible with a surface applied vertical rod exit device.

    Available Seals: It can be purchased with either a thermo, vinyl, and pile brush seal which compresses against the door to form a tight seal.

    Thermo vs. Vinyl Seal: The thermo seal is a higher grade rubber than its vinyl counterpart and has a greater acoustic performance rating which creates a stronger soundproof seal. It has better performance than vinyl in extreme cold or hot temperatures and is recommended for locations with extreme weather. The vinyl seal wears quicker than thermo, so for best performance, apply vinyl in areas with light traffic abuse.

    Finishes: Available in various different finishes choose from the dropdown options above (Oil rubbed bronze can also be purchased through our office for an additional 40% of standard bronze pricing)

    A Note on Finishes: Aluminum Mill Finish is plain smooth metal as it comes from the mill, without a coating. Bronze is a mill finish, sometimes referred to as Architectural Bronze. It is a solid bronze piece, which increases longevity and aesthetics, thus the large difference in price. It gets darker in color with time when exposed to the environment. Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance.

    Compliance Details: See the Product Data tab to the right

    Installation: Installation Guide and screws provided. Screws are colored to coordinate with the saddle. If the threshold is being drilled into concrete, an Expansion Anchor is recommended.

    Drilling: Threshold is supplied drilled for easy installation

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For a wider threshold, view our 6.125" Aluminum or Bronze Latching Panic Exit Threshold with Thermal Break, .5"

      • SKU
        PK253x226-AFGV
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      253x226TFG, 253x226VFG, 253x226PFG
    • Dimensions
      • Overall Height
        .875" Height
      • Interior Height
        .5" Height
      • Overall Width
        5.125" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .625" Height
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Latching Panic Exit Threshold
      • Seal Type
        Vinyl Seal, Thermo Seal, Pile Brush Seal
      • Material
        Aluminum, Brass
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313), Satin Bronze Powder Coated Aluminum (10BE), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP), Bronze Mill Finish (Brass)
    • Compliance Details
      • Compliance Details
        Air Infiltration Rated, Fire Rated, BHMA Certified
      • Warranty
        5 Year Limited Warranty

    Click to Print

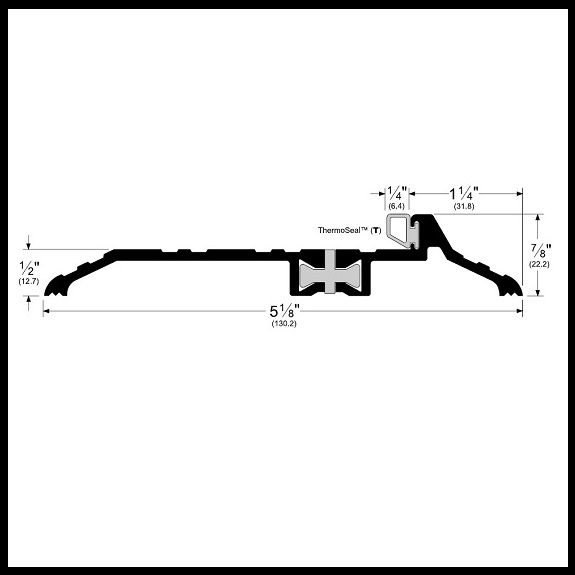

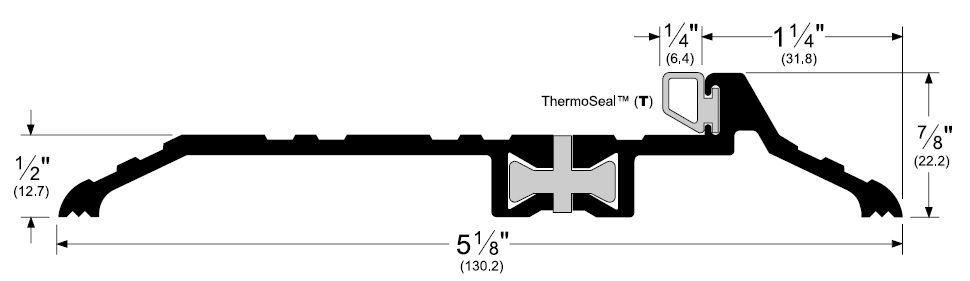

    P253x226FG Product Specs:

    Note, Threshold requires a door clearance of .625" (5/8")

    Thermo Seal:

    Vinyl Seal:

    Pile Brush Seal:

    Click to Print



    P253x226FG Installation Guide:
