Markar FM400 Aluminum Toilet Partition Hinge, Full Mortised

Markar FM400 Aluminum Toilet Partition Hinge, Full Mortised
Markar

Markar FM400 is a Heavy-Duty Concealed Leaf Toilet Partition Hinge which is mortised to the frame rabbet and edge of the door to conceal both leaves.  This hinge is designed for door weighing up to 80 lbs. and a maximum width of 3'0". Hinge is Aluminum Alloy with a Clear Bronze finish and is available in standard stock sizes, see below for details and pricing.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      MRFM400_54
    • Market price:$646.00
      • save 25%
    • Starting price: Price: $484.50 per item


    Marker FM400 is a Pin and Barrel Type Continuous Aluminum Concealed Leaf Toilet Partition Hinge.

    • Standard Sizes: 54", 57". Custom sizing available, contact us or call at 845-388-1300 for details and pricing.

    • Applications:  Supports weights up to 80 lbs. 3'0" maximum door width. Non-handed. Ideal for damp or corrosive environments.

    • Design: Spring-Loaded Barrel Type Hinge, .25" diameter Stainless Steel pin with Stainless Steel spring mechanism. Torx tip cap to adjust spring tension with split nylon bearings. Gives complete support along the entire length of the partition door which provides a clean, finished look and virtually eliminates the "sight line" of multi-part systems. Fasteners concealed when door is closed.

    • Material: 6063-T6 Aluminum Alloy Hinge.

    • Finish: Clear Anodized (628). Custom finishes are available, contact us or call at 845-388-1300 for details and pricing.

    • Mounting Hardware: Custom 12-24 x 11/16" S.S. Phillips Flat Head Undercut TEK Screws.
                                        TORX Adjust Screw which adjusts tension on the door to close tightly for out-swinging ADA compliance.

    • Handing: This hinge is non-handed.

    • Patents: USA patent no. 4823437
                    Canadian patent no. 1303804

    • Modifications and Options: Adjustable monitoring switch, hospital tip hinges, medical bearings, dutch door hinge preparation, custom hole patterns, special sheared leaf, wide throw hinges, raised barrel(Swage), edge guard hardware cut-outs, special length hinges, Electrical Modification Access Prep, CTP-Current Transfer Preparation, CE - Current Transfer-Concealed, CT- Current Transfer- Contact Switch, ES-Exposed Monitoring Switch, blank hinges (minus hole pattern), lead lined cover (1/16" LEAD), security fasteners are available through our office. For details and pricing please contact us or call 845-388-1300.

    • Priced per Piece

    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click to view our Markar FS402 Flush Full Surface Aluminum Continuous Hinge.

     This product has a 10 year warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        MRFM400_54
    • QuickShip
      No
    • Manufacturer
      Markar
    • MPN
      MFM400

    Printable Documents:

     Click to print Markar FM400 Continuous Hinge Product Specs.

    Product Specs:

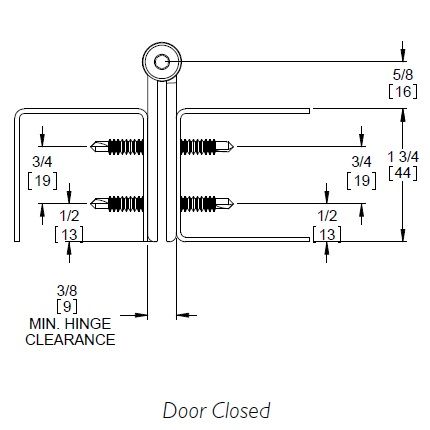

    Markar FM400 Aluminum Toilet Partition Hinges Product Specs   Markar FM400 Aluminum Toilet Partition Hinges Product Specs
