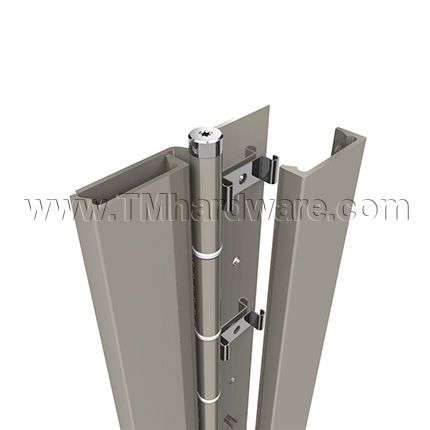

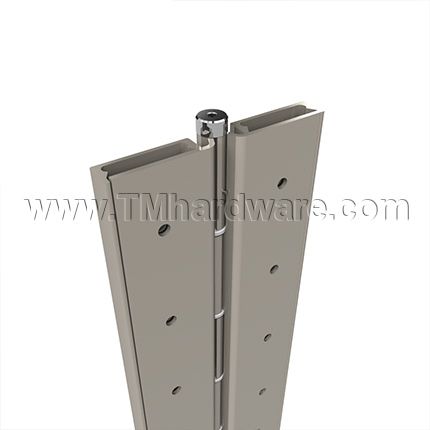

Markar FS902 Stainless Steel Toilet Partition Hinge, Flush Full Surface

Markar FS902 Stainless Steel Toilet Partition Hinge, Flush Full Surface
Markar

Markar FS902 is a Heavy-Duty Full Surface Leaf Toilet Partition Hinge which is surface mounted to the surfaces of the door and frame.  This hinge is designed for door weighing up to 80 lbs. and a maximum width of 3'0". Hinge is Stainless Steel with Satin finish and is available in standard stock sizes, see below for details and pricing.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      MRFS902_54IN
    • Market price:$833.00
      • save 25%
    • Starting price: Price: $624.75 per item


    Marker FS902 is a Pin and Barrel Type Continuous Stainless Steel Concealed Leaf Toilet Partition Hinge.

    • Standard Sizes: 54", 57". Custom sizing available, contact us or call at 845-388-1300 for details and pricing.

    • Applications:  Supports weights up to 80 lbs. 3'0" maximum door width. Non-handed. Ideal for damp or corrosive environments.

    • Design: Spring-Loaded Barrel Type Hinge, .25" diameter Stainless Steel pin with Stainless Steel spring mechanism. Torx tip cap to adjust spring tension with split nylon bearings. Gives complete support along the entire length of the partition door which provides a clean, finished look and virtually eliminates the "sight line" of multi-part systems. Fasteners concealed with security moldings.

    • Material: Heavy-duty 14 gauge Stainless Steel hinge with cover made from Extruded Aluminum.

    • Finish: US32D Satin Stainless Steel (630) with cover made from Brushed Aluminum. Custom finishes are available, contact us or call at 845-388-1300 for details and pricing.

    • Mounting Hardware: 1/4" x 20 pan head machine screws concealed by cover caps.
      TORX Adjust Screw adjusts the tension on the door to close tightly for out-swinging ADA compliance.
    • Handing: This hinge is non-handed.

    • Patents: USA patent no. 4823437
                    Canadian patent no. 1303804

    • Modifications and Options: Adjustable monitoring switch, hospital tip hinges, medical bearings, dutch door hinge preparation, custom hole patterns, special sheared leaf, wide throw hinges, raised barrel(Swage), edge guard hardware cut-outs, special length hinges, Electrical Modification Access Prep, CTP-Current Transfer Preparation, CE - Current Transfer-Concealed, CT- Current Transfer- Contact Switch, ES-Exposed Monitoring Switch, blank hinges (minus hole pattern), lead lined cover (1/16" LEAD), security fasteners are available through our office. For details and pricing please contact us or call 845-388-1300.

    • Priced per Piece

    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click to view our Markar FS910 Stainless Steel Toilet Partition Hinge, Flush Full Surface.

     This product has a 10 year warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        MRFS902_54IN
    • QuickShip
      No
    • Manufacturer
      Markar
    • MPN
      MFS902

    Printable Documents:

     Click to print Markar FS902 Continuous Hinge Product Specs.

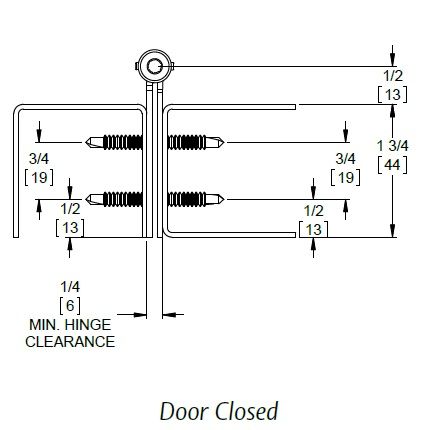

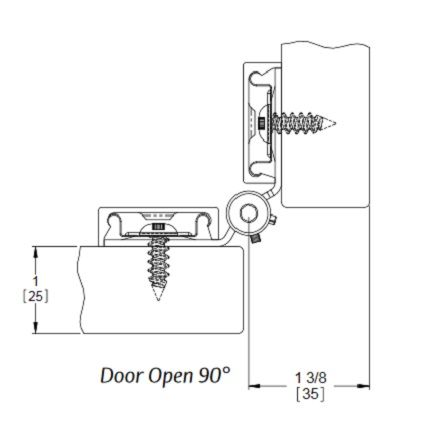

    Product Specs:
     Markar FS902 Hinge Product SpecsMarkar FS902 Hinge Product Specs
