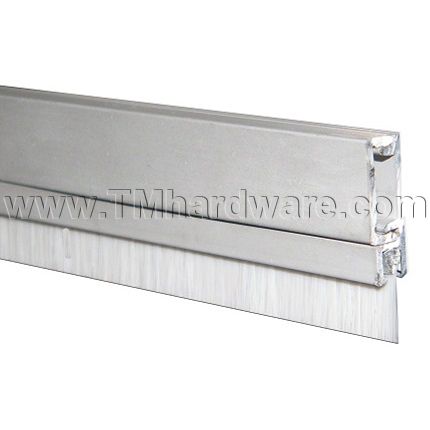

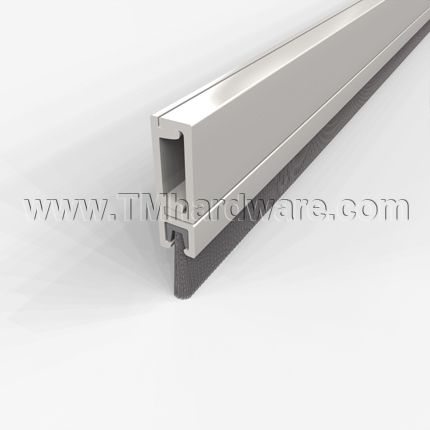

Pemko #29324MS Meeting Stile, .875" Aluminum with Snap-On Cover, .375" Brush

Pemko #29324MS Meeting Stile, .875" Aluminum with Snap-On Cover, .375" Brush
Pemko Manufacturing

This meeting stile is designed to be surface mounted to the face of doors to seal a gap between a pair of double active doors. Snap on cover case eliminates exposed mounting screws for an aesthetically appealing look. Options of nylon brush or soft brush available. Available in various anodized finishes and is custom cut to size.

PRICED PER FOOT.

Reminder, if being purchased for both doors, select 'Quantity 2' or as needed.

See tabs below for additional information
    • SKU
      PK29324CNB
    • Market price:$16.58
      • save 10%
    • Starting price: Price: $14.92 per foot

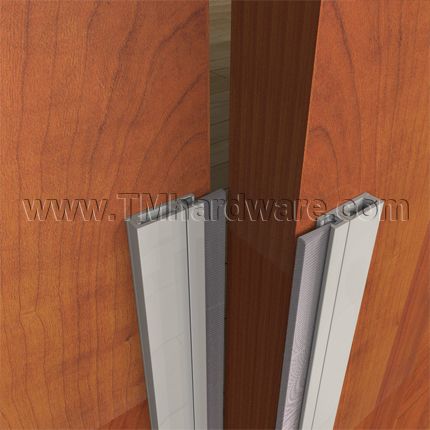

    Gaps between two double doors is a pitfall when trying to create a sealed environment. This meeting stile is designed to seal the gaps between a pair of double active doors and prevent drafts, fire, smoke and dust infiltration.

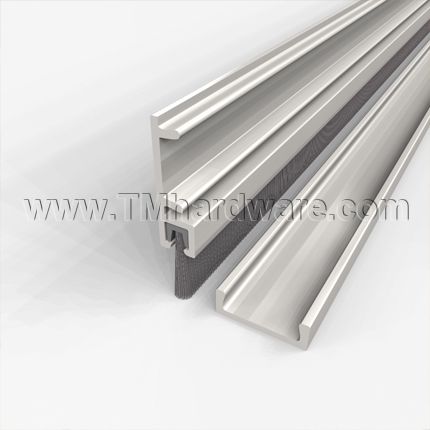

    This meeting stile seals gaps up to approximately .75" with minimum closing force. When applied, to ensure proper sealing properties, seals should mesh 1/32" - 1/16". The meeting stile in encased in a high quality aluminum anodized casing which is surface mounted to the face of the doors. Casing has a snap-on cover which eliminates exposed mounting screws for an aesthetically appealing look.

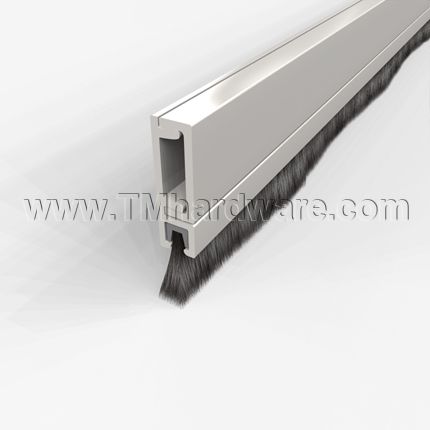

    Nylon Brush is comprised of a dense type 6 nylon brush which is rated for smoke, fire and air infiltration and ensure a quality, long lasting product. Soft Brush is made of very flexible, soft bristles, ideal for contact with delicate surfaces.

    Installation screws provided. Screws are colored to blend with casing.

    Reminder, if being purchased for both doors, select 'Quantity 2' or as needed.

    Insert Colors: Clear Anodized is supplied with Gray Brush. All other finishes is supplied with Black Brush. For alternate combinations, contact us or call us at 845-388-1300.

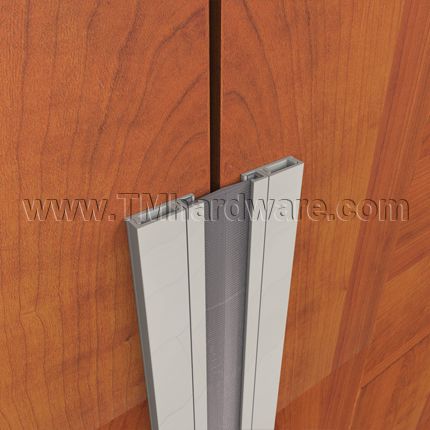

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    This product can also be used as a Door Bottom, See our Aluminum with Snap-On Cover Door Sweep with .375" Brush.

      • SKU
        PK29324CNB
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      29324NB, 29324SB
    • About This Product
      • Retainer Material
        Aluminum
      • Seal Type
        Nylon Brush, Soft Brush
      • Door Type
        Double Active Doors
      • Mounting
        Surface Mounted
    • Dimensions
      • Seal Height
        3/8"
      • Total Height
        1-1/4"
      • Width
        1/4"
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Air Infiltration Rated, Fire Rated, Smoke Rated, BHMA Certified, UL Classified
      • ANSI Designation
        R3A434, R3A435
      • Warranty
        5 Year Limited Warranty

    Click to Print

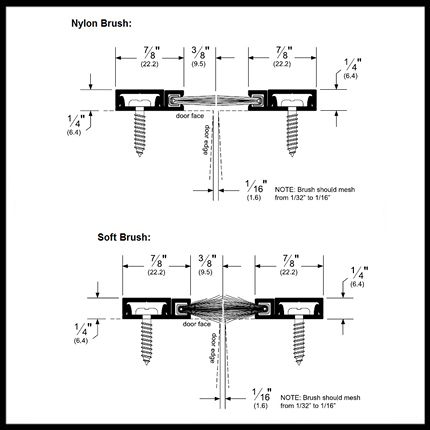

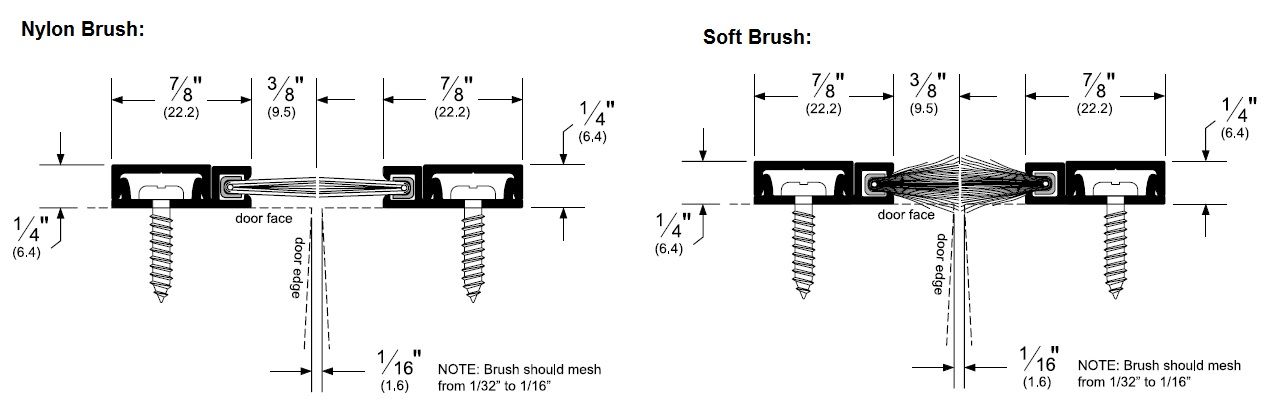

    P29324MS Product Specs:

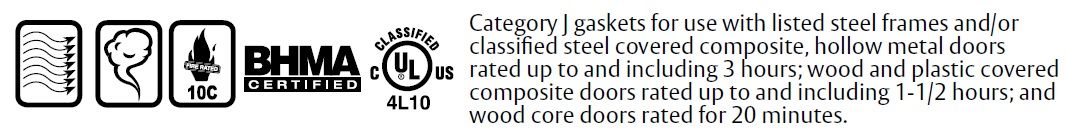

    Click to View Ratings Explained

    *Note, ratings apply to nylon brush version only.



    Finishes Comply with the Following ANSI / BHMA Codes:

    • Clear Anodized Aluminum - US28 / 628
    • Dark Bronze Anodized Aluminum - US10B / 710
